1U Heavy Duty Fixed Shelf 28in Depth for 23in EIA Racks
$149.99
In stock
SKU
1USHL-116-23
Fits any 2Post, 4Post rack
- Fits square, round, threaded holes
- Fits 23" wide racks
- 24" or 28" shelf adjustable mounting from 11-31.5"(279 - 800 mm)
- 2Post flush or center mount
Fixed shelf for any equipment
- Capacity: 500 lbs (226 kgs)
- Shelf depth: 28" (610 mm)
- Ideal for tower, printer, desktop
- Steel shelf construction

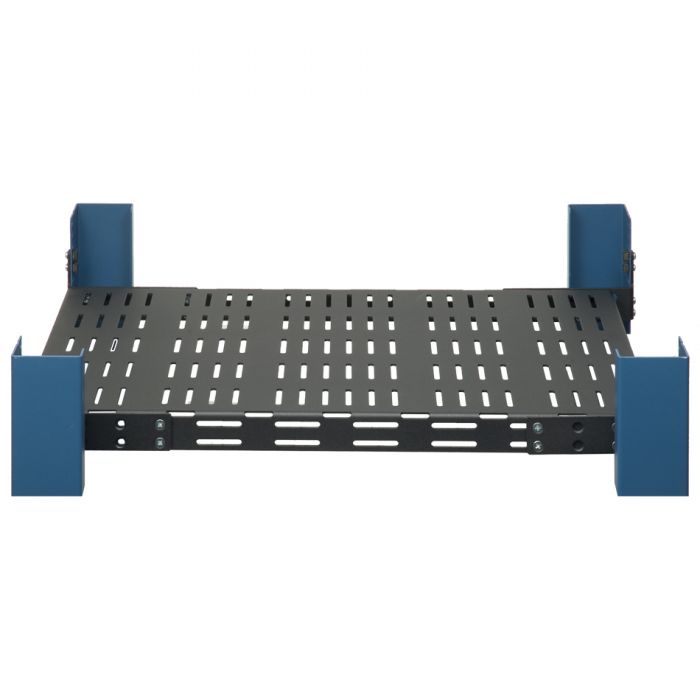

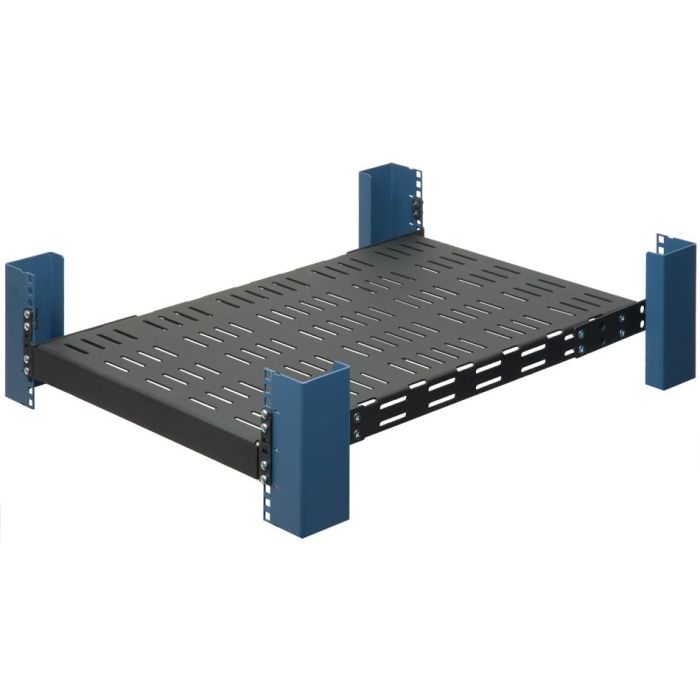

The RackSolutions 23" wide heavy duty server rack shelf is compatible with 23" wide server racks that are 2 or 4 post. This rack shelf can be installed into racks with square, round or threaded holes. Rack mount equipment weighing up to 500 lbs can be installed using this rack shelf. The rack shelf is 28" deep and can be installed in server racks with installation depths up to 30" and in multiple configurations.
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | No | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Weight (lbs) | 29.500000 | Country of Manufacture | United States | U Height | 1U | Rack Type | 2 Post , 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Shelf Type | Vented | Shelf Depth | 25"- 30" (635mm-762mm) | Fixed/Sliding | Fixed | Weight Capacity | 300 - 550 lbs | Finish | Black, textured, powder coat | Ingram Part Number | 1USHL-116-23 - YD5257 |
|---|
Kit Contents:
- (1) 23in Shelf
- (2) Left and Right Brackets
Bracket Mount Hardware Package:
- (16) 1/4-20 x .500 Flat Phil Head Screws
- (16) 1/4-20 Keps Nuts
Rack Mount Hardware Package:
- (8) 10-32 x .500 Pilot Pan Head Screws
- (8) 12-24 x .500 Pilot Pan Head Screws
- (8) 12-24 Square Nuts
- (8) 12-24 Cage Nuts
