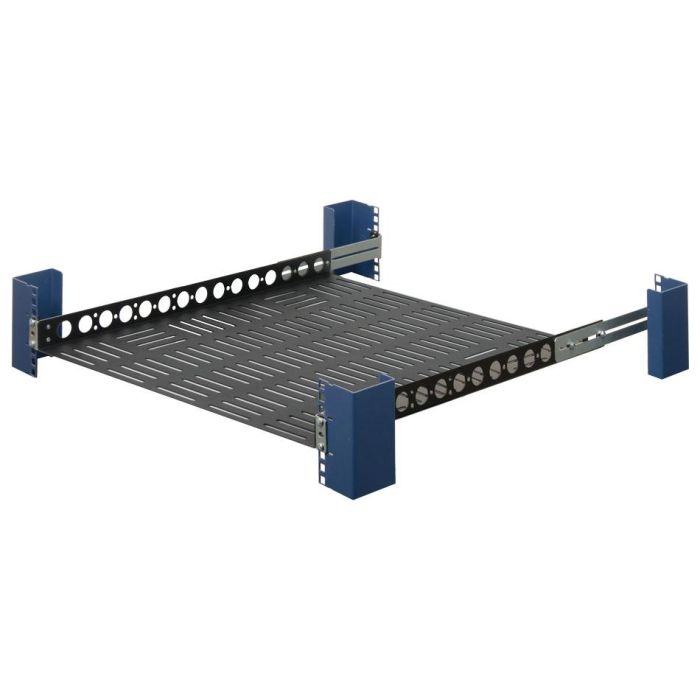

23" Wide Server Rack Shelves

100% of 100
As low as $0.00
In stock

Fixed Shelves for 23” Racks

  • Steel shelf construction
  • 2Post flush or center mount
  • Available in light or heavy duty
  • Ideal for tower, printer, or desktop
  • 108-4261 includes anti-slip mat

Fits Both 2 Post and 4 Post Racks

  • “Light Duty” capacity: 100 lbs (45.36 kgs) (108-4261)
    • Shelf depth: 24" (610 mm)
  • “Heavy Duty” capacity: 500 lbs (226 kgs) (1USHL-116-23)
    • Shelf depth: 28" (610 mm)
  • Fits square, round, threaded holes
  • Adjustable mounting from 11-31.5"(279 - 800 mm)

See "Additional Information" for Technical Specifications.

The 23” width is different from the standard EIA-310 19” width equipment that is available throughout our product line. It is primarily used in the telecommunications industry, but sometimes is useful for older or more niche IT equipment.

Our “light duty” option is able to support 100 lbs, which is more weight than most 2U servers. The heavy duty shelf has a much greater weight capacity (500 lbs) than what is needed for standard equipment, and works well for carrying things like UPSes, large switches or printers.

More Information
Dell Part Number 108-4261 - A8062057
1USHL-116-23 - A8062056
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Equipment Depth Shelf depth: 24" (610 mm) (108-4261) Shelf depth: 28" (610 mm) (1USHL-116-23)
Shelf Type Vented
Rack Type 2 Post , 4 Post
Fixed/Sliding Fixed
Shelf Surface Area 24" x 21.8" (609.6 x 553.72 mm) Light Duty 28" x 21.25" (711.1 x 539.75 mm) Heavy Duty
Finish Black, textured, powder coat
Mounting Depth Range 24" or 28" shelf adjustable mounting from 11-31.5"(279 - 800 mm)
Included Hardware 10-32 and 12-24 screws
Cage nuts are provided for square hole racks
Front brackets: 2 adjustable position front rack flanges
Rear slide brackets: 2 adjustable position rear rack flanges
Weight Capacity Capacity: 100 lbs (45.36 kgs) (108-4261) Capacity: 500 lbs (226 kgs) (1USHL-116-23)
Tool-less/Standard Standard
Hole Type Works in threaded, round and or square hole racks
Amazon ASIN 108-4261 = B00UVK8VQO
1USHL-116-23 = B00UVK6YZE
TAA Compliant Yes
RoHS Compliant Yes
