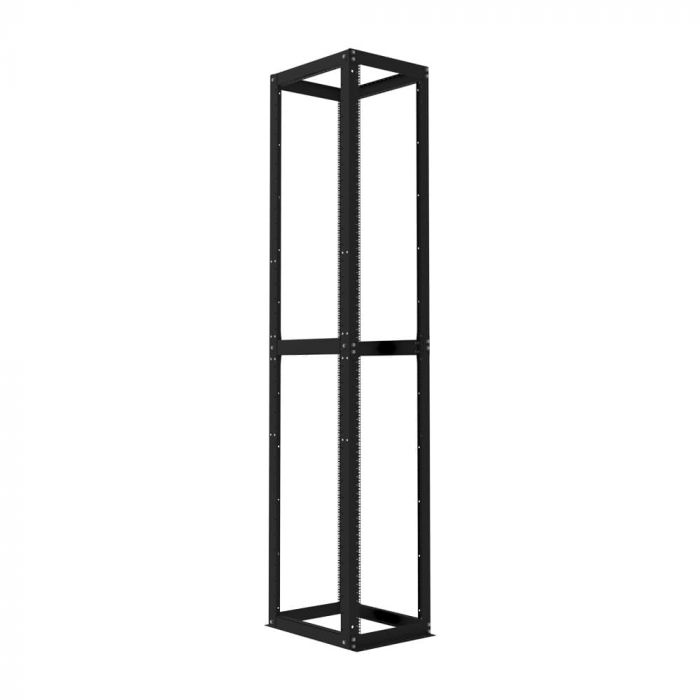

70U 111 Open Frame Rack 24inW x 28.875inD

100 % of 100
Order Available ONLY by Phone 888-903-RACK

Need a custom size or rack? Give us a call. We have engineers ready to design your product and in house manufacturing for FAST turnaround time.

70U of Rackable Space

  • Rackmount Depth: 28.875" (733mm)
  • Rack Height: 122.6" (3,124mm)
  • Hole Type: 3/8" Square Holes
  • 24" width is perfect for data centers
  • Static load capacity of 4000 lb

Dell, HP, IBM, Cisco compatible*

  • Uses less floor space than cabinets
  • Flush floor mount spreads load on floor tiles
  • Base may be bolted to floor for stability
  • Optimizes cooling
  • Makes wiring easy
  • Streamlined support for power strips, PDUs
*Note: 28.875" depth only
Need a Cable Management Bar? Ask to add 137-5940
to your order when you call 1-888-903-RACK

See "Additional Information" for Tech Specs.

The 70U Open Frame Rack is available by phone. Please call 1-888-903-RACK to order.

RackSolutions® is proud to be a leading provider of server racks and equipment for SoftLayer®.

The RackSolutions 70U Open Frame Server Rack is possibly the tallest server rack in the world that meets all EIA standards. The 28.875" server rack depth is compatible with all the major OEM's such as Dell, HP, IBM, and Cisco. Compatible with overhead cable trays from B-Line and other manufacturers. Read more about Open Frame Racks.

Rack Top Options

Close out the top of this rack with one of four Rack Top options. Choose from black or galvanized Rack Tops with or without cable pass-throughs. Hardware included.

Rack 111 Rack Top with Cable Pass-throughsRack 111 Rack Top with Cable Pass-throughs
Rack 111 Rack Top without Cable Pass-throughsRack 111 Rack Top without Cable Pass-throughs

Power Distribution: Choose from 8, 16 or 24 Outlets

P/N: PSV-F24-15A-S (24 Outlet)

16 Outlet Powerstrip

P/N: PSV-F16-15A-R (16 Outlet)

8 Outlet Powerstrip

P/N: PSV-F8-15A-Q (8 Outlet)

Installation Examples

Open Frame Racks Bayed Together Open Frame Racks Bayed Together

Here’s a great example of three, open frame racks bayed together in a server room.

Rack 111 Open Frame Rack with Callouts Rack 111 Open Frame Rack with Callouts

Note: Above is an example of two, 50U, Open Frame Server Racks bayed together with two, 55U Server Racks in a data center.

More Information
Rack Type 4 Post Rack, Open Frame
Rack Internal Width EIA 19" Standard Rack
Tech Notes Hole Type: EIA 3/8" square hole
Rack Post: J-shape

Rack Height: 122.6" (3124 mm)
Rack Mount Depths: 28.875" (733 mm)
Included Hardware (40) #12-24 cage nuts and screws
Finish Black, textured powder coat
Assembly Notes 3/4" wrench required
Assembly time is approximately 15 minutes
Rack Units 70U
RoHS Compliant Yes
TAA Compliant Yes
