Air Dams for Open Frame Rack Model 111

As low as $9.99
In stock
Sign In for free shipping on products marked with (see details)
Look for products eligible for free shipping marked with (see details)

Provides Partial Aisle Containment

  • Manages your rack's airflow
  • Provides a partial cold aisle containment solution
  • Alternative to a full aisle containment system
  • Compatible only with Rack Model 111
  • Top & Side Air Dams sold separately
  • Quick & Easy installation
  • Choose from 5" or 10" sizes
  • Adjustable from 44U - 58U heights

NOTE: Only compatible with the RackSolutions Open Frame Rack 111

RackSolutions Air Dams allow for airflow that was originally lost in a data center to be captured and recirculated into your servers racks and equipment, rather than the ceiling. The top air dam captures air that has been blowing upward from the floor grates so that the top components in the rack receive ample airflow. Meanwhile, the side air dams go on the ends of each row of racks to assist in keeping the cool air boxed in. Choose between a 5" or 10" air dam that runs the length of the Rack 111. The adjustable size of the side air dams allows this option to work with Rack 111's in heights from 44U-58U.

Air dam for top of rack  (desktop image)Air dam for top of rack  (mobile image)

The top Air dams make it harder for the cold air to escape from the top of the cold aisle. The air dams also make it where the air from the hot aisle has a longer distance to travel before reaching the cold aisle.

side of rack air dam (desktop image)side of rack air dam (mobile image)

The Side Air Dams sit on the end of the cold aisle, offering a "partial containment" solution, preventing cold air from escaping.

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States

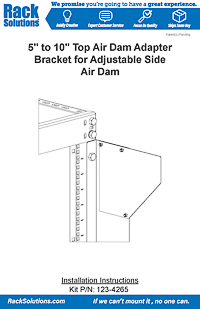

Included Hardware 123-4265
  • Metal Parts:
    • (1) Top Adapter Bracket
  • Installation Hardware:
    • (3) 8-32 x .500 Flat Head Screw
    • (3) 8-32 Nylock Nut

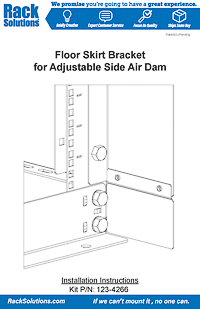

123-4266
  • Metal Parts:
    • (1) Floor Skirt Bracket
  • Installation Hardware:
    • (2) 8-32 x .250 Flat Head Screw

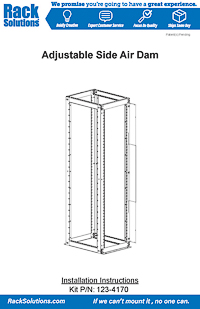

123-4170
  • Metal Parts:
    • (2) Upper/Lower Air Dam Brackets
    • (1) Middle Air Dam Bracket
  • Installation Hardware:
    • (3) 1/2-13 Hex Head Bolt
    • (3) 1/2-13 Hex Nut
    • (3) 1/2" Internal Tooth Lock Washer
