110-B Wall Mounts for Dell USFF
Wall mount a Dell OptiPlex 780 USFF
- Only Compatible with USFF PCs - Full Compatibility Below
- Monitor attaches using 75 mm and 100 mm VESA hole patterns
- Wallmount bracket supports up to 50 lbs
- All required mounting hardware is included
- PC and monitor not included
Customize to your needs
- Compatible with most flat panel displays
- Pairs great with one of our keyboard wall mounts
- Tilt and fixed monitor options available
Dell Compatible Products
- OptiPlex 780 Ultra Small Form Factor (USFF)
- OptiPlex 790 Ultra Small Form Factor (USFF)
- OptiPlex 990 Ultra Small Form Factor (USFF)
- OptiPlex 7010 Ultra Small Form Factor (USFF)
- OptiPlex 9010 Ultra Small Form Factor (USFF)
- OptiPlex 9020 Ultra Small Form Factor (USFF)
NOTE: See "Additional Information" below for compatibility.

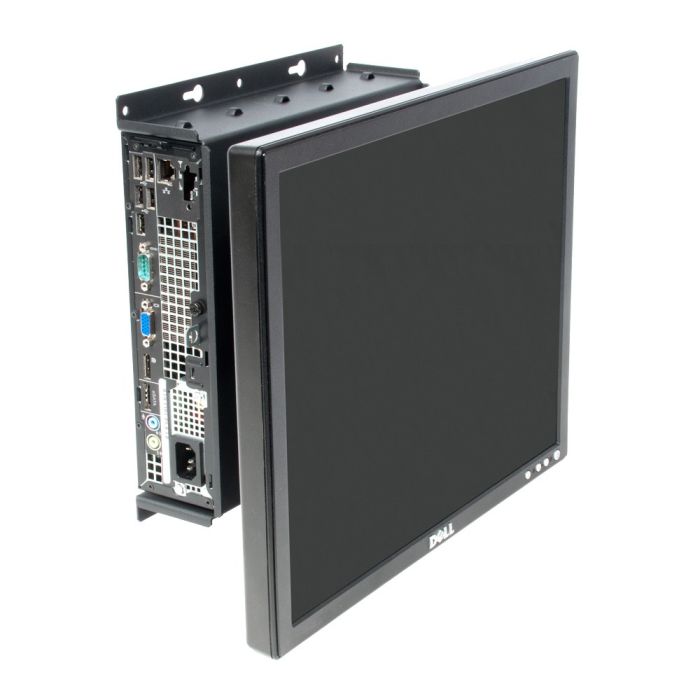

The Dell OptiPlex 780 USFF Wall Mount from RackSolutions is used for mounting the ultra-small form factor (USFF) Dell OptiPlex 780 PC, as well as various other OptiPlex USFF models. Combined with a monitor, the mount takes the PC's already small footprint and takes up even less space by creating a compact all-in-one solution, making it perfect for small offices or cramped work environments. A fully wall mounted system can be created when paired with one of our keyboard wall mounts. Two versions of the wall mount are available, with one that keeps the monitor in a standard "fixed" position, and another option that includes a tilt bracket that allows you to position your monitor to your preferred viewing angle. The Dell OptiPlex 780 USFF Wall Mount is compatible with most flat panel displays using 75 mm and 100 mm VESA hole patterns.
| VESA Standard | Hole Pattern | Monitor Weight | Screen Size |
| FDMI MIS-C | 75 x 35 mm | ≤ 10 lbs / ≤ 4.5 kg | 8" to 11.9" |
| FDMI MIS-D | 75 x 75 or 100 x 100 mm | ≤ 30.8 lbs / ≤ 14 kg | 12" to 23.9" |
| FDMI MIS-E | 200 x 100 mm | ≤ 50 lbs / ≤ 23.7 kg | 24" to 30.9" |
For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained. (opens in a new tab)
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | OEM Compatibility | Dell | Product Line | OptiPlex | Form Factor | Ultra-Small | Finish | Black, textured powder finish | Dell Part Number | 104-1952 - A4417547 104-1965 - A5742989 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
Synnex Part Number | 104-1952 - 4614626 104-1965 - 4614625 | Ingram Part Number | 104-1952 - DV8684 104-1965 - KF1081 |
|---|
Assembly Components:
- (1) Main Bracket
Monitor Hardware Package:
- (8) Nylon Spacers
- (5) M4 x 10mm Flat Head Screws
- (5) M4 x 12mm Flat Head Screws
- (5) M4 x 20mm Flat Head Screws
Wall Mount Hardware Package:
- (4) Pan Head Screws
- (4) Anchors
Assembly Components:
- (1) Main Bracket
- (1) Pivot Assembly
Monitor Hardware Package:
- (8) Nylon Spacers
- (5) M4 x 10mm Pan Head Screws
- (5) M4 x 18mm Pan Head Screws
- (5) M4 x 25mm Pan Head Screws
Wall Mount Hardware Package:
- (4) Pan Head Screws
- (4) Anchors
Pivot Hardware:
- (5) 8-32 Flat Head Screws
- OptiPlex 7010 USFF
- OptiPlex 780 USFF
- OptiPlex 790 USFF
- OptiPlex 9010 USFF
- OptiPlex 9020 USFF
- OptiPlex 990 USFF
