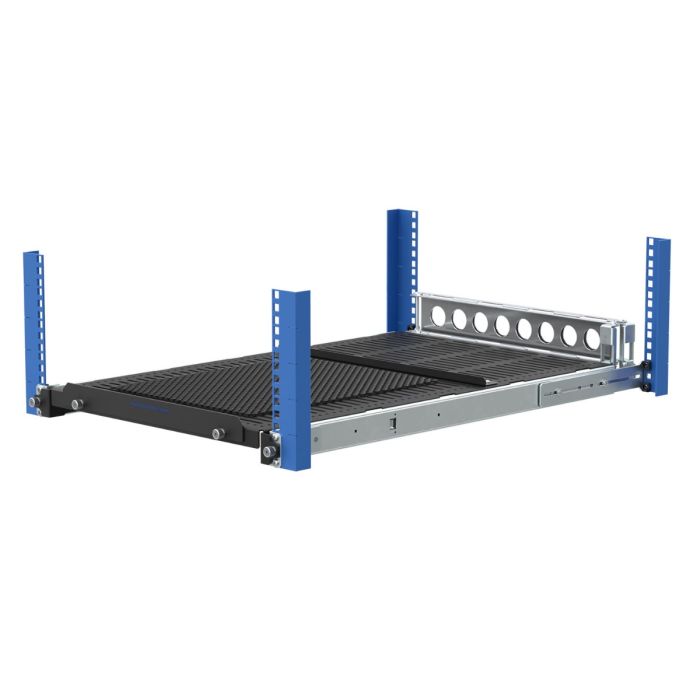

1U 115 Sliding Equipment Shelf 27in Depth

RoHS Compliant (default) RoHS Compliant (hover)
TAA Compliant (default) TAA Compliant (hover)
100 % of 100
As low as $229.99
In stock

Tower Server and Desktop Ready

  • Front and back equipment stops included
  • Thumb screws lock the shelf into place
  • High quality ball bearing slides
  • Tower-to-Rack conversion
  • Compatible with round, threaded, and square rack holes

See "Additional Information" for Tech Specs.

RackSolutions Sliding Equipment Shelves are compatible with most 19" EIA standard server racks. Our equipment shelves have a 95 lbs (43kgs) weight capacity and will support a wide variety of IT equipment.

Computers up to 27" (685mm) deep can be supported on a 19 inch equipment shelf in any 4Post rack. Constructed of 14 GA steel, the RackSolutions Sliding Equipment Shelf is designed for storing your non-rack mountable equipment safely.

The slide rails extend a full 30" (762mm) on this equipment shelf model. Cable management is a standard feature of equipment shelves providing a method to professionally route and secure the cables. Your purchase includes a removable front equipment stop bar, adjustable rear equipment stop bar, anti-slip mat, and optional straps for securing equipment for transport or seismic applications.

Light Duty Laptop Shelf (desktop image)Light Duty Laptop Shelf (mobile image)

Light Duty

Weight Capacity
75 lbs.

Sliding / Fixed

Sliding Equipment Shelf (desktop image)Sliding Equipment Shelf (mobile image)


Weight Capacity
95 lbs.

Sliding / Fixed

Heavy Duty Sliding Shelf (desktop image)Heavy Duty Sliding Shelf (mobile image)

Heavy Duty

Weight Capacity
235 lbs.

Sliding / Fixed

2U Extreme Heavy Duty Sliding Shelf 28in Depth (500 lbs) (desktop image)2U Extreme Heavy Duty Sliding Shelf 28in Depth (500 lbs) (mobile image)

Extreme Heavy Duty

Weight Capacity
500 lbs.

Sliding / Fixed

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 1USHL-115
  • Kit Contents:
    • (1) Partially Assembled Shelf
    • (1) Anti-Slip Mat 12”x15”
    • (1) 50” Hook and Loop for Cable Arm
  • Brackets:
    • (2) Rear Rack Brackets
    • (1) Removable Front Stop
    • (1) Adjustable Rear Stop
    • (1) Arm Extension Bracket
    • (2) Cable Management Arms
    • (2) Arm Attachment Brackets
  • Assembly Hardware Kit:
    • (4) 8-32 x 3/8” Flat Head Screws
    • (6) 8-32 x 3/8” Pan Head Screws
    • (6) 8-32 Nuts
    • (3) 2.5” Clevis Pins & Cotter Pins(for Cable Mgmt)
  • Rack Mount Hardware Kit:
    • (8) 12-24 x 1/2” Screws
    • (8) 10-32 x 1/2” Screws
    • (8) 12-24 Square Nuts
    • (8) 10-32 Cage Nuts
  • 115-1895 Adds:
    • (2) 3U Tall 2Post Brackets (see Page 8)
    • (12) 12-24 Bolts for Relay Racks
Dell Part Number 1USHL-115 - A0134097
101-0914 - AA107473
115-1526 - AB250753
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 1USHL-115 - 4614584
115-1526 - 5161481
Ingram Part Number 101-0914 - TJ7572
1USHL-115 - 658374
115-1526 - LE6485
Assembly Notes Removable, front equipment stop bar
Adjustable rear equipment stop bar
Optional straps for securing equipment for transport or seismic applications
Equipment Depth Maximum: 26.8" (681 mm)
Shelf Type Vented
Rack Type 4 Post
Fixed/Sliding Sliding
Shelf Surface Area 16.5" W x 26.8" D (419 x 681 mm)
Finish Textured, black, powder coated
Mounting Depth Range 15.5 - 31.5" (394 - 800 mm)
Weight Capacity 95 lbs (43kgs)
Rack Units 1U
Tool-less/Standard Standard
Overall Installation Depth 15.50” - 31" (393mm - 787mm)
Hole Type Compatible with round, threaded, or square rack holes
