Extra, Rear Brackets for Fixed Rack Shelf

101-1838

Availability: In stock

Extra, Rear Brackets for Fixed Rack Shelf
  • Rear Bracket for Fixed Rack Shelf-Side View-1USHL-108
    Rear Bracket for Fixed Rack Shelf-Side View-1USHL-108
    close
Made in America

Rear Brackets for 1USHL-108 Fixed Rack Shelf

  • Replacement Brackets
  • Sold Separately from Shelf
  • Blue Post/Shelf sold separately

Fits Any 2 Post or 4 Post Rack

  • 1USHL-108 Fixed Rack Shelf - Capacity: 150 lbs (68 kgs)
  • 1USHL-108 Fixed Rack Shelf - Depth: 24" (610 mm) or 108-2272 20" (508 mm)
  • 1USHL-108 Fixed Rack Shelf - Mounting Depth: 24" shelf - adjustable mounting from 11 - 30" (279 - 762 mm)
  • 1USHL-108 Fixed Rack Shelf - Mounting Depth: 20" shelf - adjustable mounting from 11 - 25" (279 - 635 mm)
  • Fits Square, Round, and Threaded Holes

See "Additional Information" for compatibility.

Rack Solutions Promise
Product Name SKU Price Qty
Extra, Rear Brackets for Fixed Rack Shelf 101-1838
$29.99
Description

Details

Our RackSolutions Fixed Rack Shelf, 1USHL-108, comes complete with these rear brackets, but in the event that the brackets are lost or need to be replaced for any reason, this pair is also sold separately.

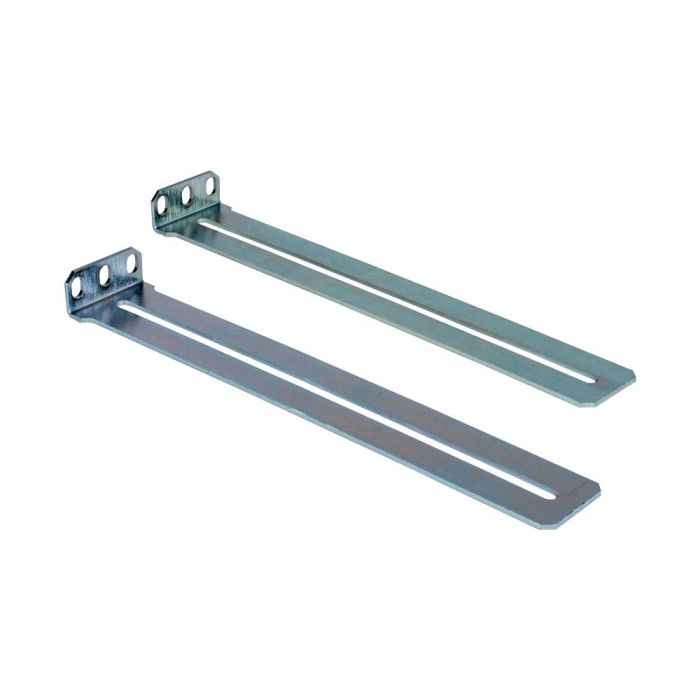

Extra Brackets for Fixed Rack Shelf includes 2 silver brackets (shown in the photo) are great replacement rack brackets for the RackSolutions Fixed Rack Shelf. The blue posts and shelf are shown for reference only.

Our RackSolutions Fixed Rack Shelf is compatible with 19" server racks from manufacturers such as Dell, HP and IBM. This rack shelf can be installed into racks with square, round or threaded holes. Rackmount equipment weighing up to 150 lbs can be installed using this rack shelf when installed in a 4 post rack. The rack shelf is 24" deep 1USHL-108 (There is also a 20" deep option 108-2272) and can be installed in server racks with installation depths up to 30" and in multiple configurations. Mounting hardware is included with both versions of the 1U server rack shelf. RackSolutions Fixed Rack Shelf is sold separately.

Additional Information

Additional Information

Assembly Notes The Fixed Rack Shelf, 1USHL-108, comes complete with these rear brackets, but in the event that the brackets are lost or need to be replaced for whatever reason, this pair is also sold separately.
Equipment Depth Shelf depth is 24.0" (610 mm). Equipment can be deeper. Shelf depth is 20.0" (508 mm). Equipment can be deeper.
Shelf Type Vented
Rack Type 2 Post , 4 Post
Fixed/Sliding Fixed
Shelf Surface Area 1USHL-108 17.1" x 24" (435 x 609.6 mm)
Mounting Depth Range 11 - 30" (279 - 762 mm) for 24" shelf 11 - 25" for 20" shelf (279 - 635 mm)
Weight Capacity This shelf 1USHL-108 is capable of being installed right side up or upside down, depending on the equipment width.
150 lbs (68 kgs) for 4Post mounting
100 lbs (45 kgs) for 2Post, center mounting
75 lbs (34 kgs) for 2Post, flush mounting
Rack Units 1U
Hole Type Fits Square, Round, Threaded Holes
RoHS Compliant Yes
