HPE DL560 Gen 10 - Rackmount Rail Guide

In stock
Grouped product items
Product Name SKU Qty
HP DL380 Gen 8, Gen 9 & Gen 10, DL560 Gen 8 & Gen 10 Rack Rails
$129.99
122-2447
2U, 2Post Conversion Kit
$139.99
2POST-2UKIT
2U Wallmount Rack
$189.99
2URACK-110

Our Rackmount Rail Guide serves to show how the HPE DL560 Gen 10 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 122-2447 as an HP alternative rail for this server chasis, The rail kit mounts in both 4 post and 2 post racks.

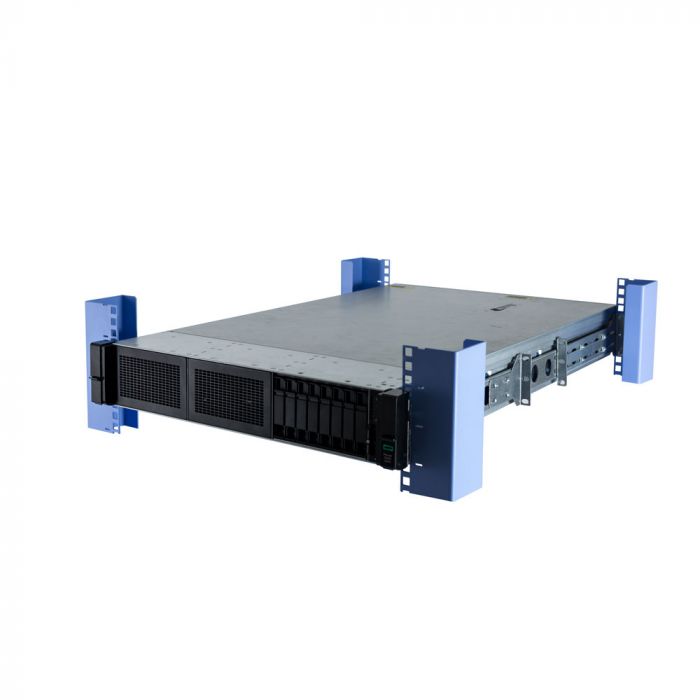

Note: Your server may look different than the one pictured

+ HPE Standard 2U Universal Rail Kit

Used for most 19" 4Post Racks.

Compatable with both square and round hole racks.

Rack mounting depth must be between 24" and 36" (610-914mm)

+ 2Post Center Mount Racks

Use HPe standard 2U universal rail kit.

Convert 2U of 2Post rack to 4Post using 2POST-2UKIT (one kit mounts one server).

Compatible with 3” wide side channels. Alternative kits available for wider side channels.

+ 2Post Flush Mount Racks

Use the HPE standard 2U universal rail kit.

Convert 4U of the 2Post rack to a 4Post rack using 4UKIT-003.

Compatible with 3” wide side channels. Alternative kits available for wider side channels.

+ Alternative Rails

2Post or 4Post Rail Kit 122-2447

Compatible with 2Post racks with side channel from 3" to 10". Centermount or Flushmount configurations.

Compatible with racks with installation depths from 24" to 32".

Compatible with all mounting interfaces: square, round, or threaded holes.

+ Wall Mounting

Use HPE Universal rail Kit.

Use 2URACK-110 Wall Mount Kit.

Rack issues, problems?

Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
