120-A Wall Mounts for HP Thin Client

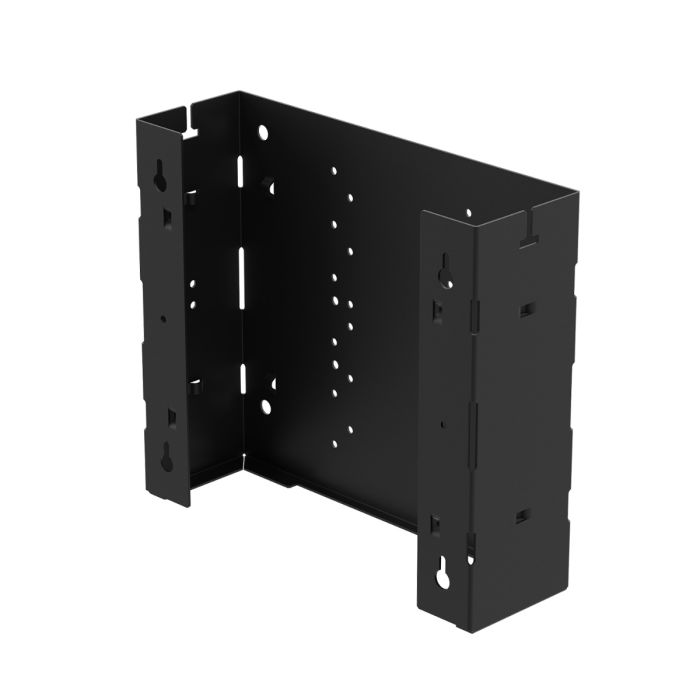

Wall mount for HP Thin Client PCs
- Wall mounts HP t610, t620, t730, and t620 PLUS PCs
- Uses 75 mm and 100 mm VESA hole pattern for monitor mounting
- Creates an ultra compact all-in-one work environment
- All required mounting hardware is included
- PC, power supply & monitor not included
Customize to your needs
- Compatible with almost any LCD monitor
- Adjustable tilt bracket available as an upgrade
- Pair with a keyboard wall mount for a fully wall mounted solution
- Optional lock upgrade to deter theft
HP Compatibility
- 104-5878: HP Thin Client t620 and t630
- 104-5880: HP Thin Client t620 PLUS and t730
NOTE:Â PC, power supply & monitor NOT included.
RackSolutions HP t620 Series Wall Mount creates an ultra-compact work environment by wall mounting HP t620 thin client PCs, as well as other HP thin client models. The wall mount takes advantage of the thin client's small size and attaches it to the back of a monitor, mounting both the PC and a monitor to a wall, creating a more space efficient work area. The mount uses 75mm and 100mm VESA hole patterns which allow the mount to be compatible with most flat panel displays. An optional "Tilt Monitor Bracket" upgrade allows the monitor to be tilted up and down to a more comfortable position. A barrel lock upgrade is also available to secure the PC and deter theft. All required mounting hardware is included.
| VESA Standard | Hole Pattern | Monitor Weight | Screen Size |
| FDMI MIS-C | 75 x 35 mm | ≤ 10 lbs / ≤ 4.5 kg | 8" to 11.9" |
| FDMI MIS-D | 75 x 75 or 100 x 100 mm | ≤ 30.8 lbs / ≤ 14 kg | 12" to 23.9" |
| FDMI MIS-E | 200 x 100 mm | ≤ 50 lbs / ≤ 23.7 kg | 24" to 30.9" |
For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained. (opens in a new tab)
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | OEM Compatibility | HP / HPE | Product Line | Thin Client | Form Factor | Thin Client | Finish | Black | Dell Part Number | 101-5483 - A9843194 | Ingram Part Number | 104-5880 - 6NN209 104-5878 - 6QN516 |
|---|
Assembly Components:
- (1) Mount Bracket
- (1) Hook and Loop Strap
Wall Mount Hardware Package:
- (4) Drywall Anchors
- (4) 8-32 x 1.250 Pan Head Screws
Fixed Monitor Mount Hardware Package:
- (8) Spacers
- (4) M4 x 0.7 x 10mm Pan Head Screws
- (4) M4 x 0.7 x 18mm Pan Head Screws
- (4) M4 x 0.7 x 25mm Pan Head Screws
Assembly Components:
- (1) Mount Bracket
- (1) Hook and Loop Strap
Wall Mount Hardware Package:
- (4) Drywall Anchors
- (4) 8-32 x 1.250 Pan Head Screws
Fixed Monitor Mount Hardware Package:
- (8) Spacers
- (4) M4 x 0.7 x 10mm Pan Head Screws
- (4) M4 x 0.7 x 18mm Pan Head Screws
- (4) M4 x 0.7 x 25mm Pan Head Screws
Kit Contents:
- (1) Locking Bracket
- (1) Security Lock
- (1) Security Lock Key
Kit Contents:
- (1) VESA Bracket Plate
- (1) Pivot Bracket
Mounting Hardware:
- (4) 8-32 x .375 Pan Head Screw
- (8) Spacers
- (4) M4 x 0.7 x 10mm Pan Head Screws
- (4) M4 x 0.7 x 18mm Pan Head Screws
- (4) M4 x 0.7 x 25mm Pan Head Screws
- Thin Client t620
- Thin Client t620 PLUS
- Thin Client t630
- Thin Client t730
