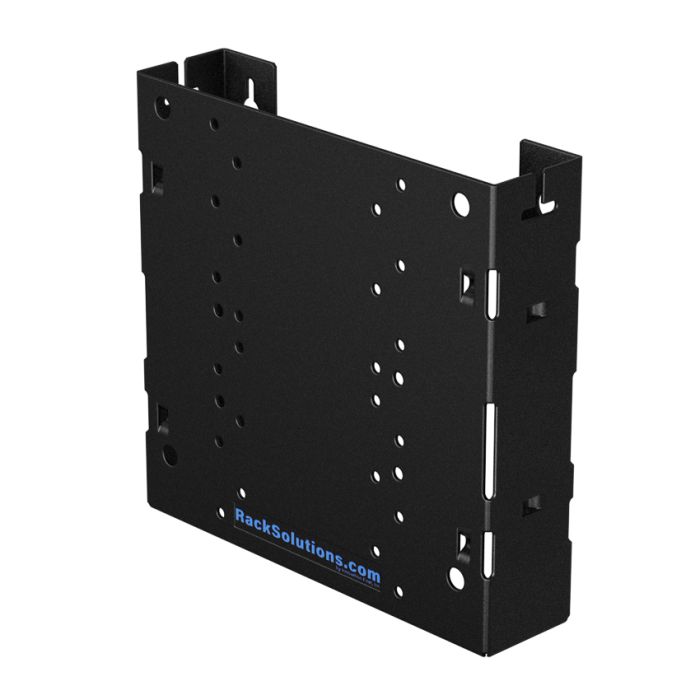

105-A Wall Mounts for Lenovo ThinkCentre Tiny

Rating:
87 % of 100
As low as $29.99
In stock

Wall Mount a Lenovo ThinkCentre Tiny With a Monitor

  • Mounts a ThinkCentre Tiny Desktop and monitor to a wall
  • Utilizes PC's small form factor to create a compact all-in-one solution
  • Perfect for mounting computers in public spaces for displays or public use
  • Attaches to monitor using a 75 mm and 100 mm VESA hole pattern
  • All required mounting hardware is included

Customize it to your needs

  • Mount it to a wall, behind a standing monitor, or under a desk
  • Compatible with almost any LCD monitor
  • Add an adjustable tilt bracket to set the monitor at the preferred angle
  • Combine with a keyboard wall mount for a fully wall mounted solution
  • Optional lock upgrade to deter theft

NOTE: See "Additional Information" below for all compatible PC models. PC & Monitor NOT included.

ROHS Badge (desktop image)ROHS Badge (mobile image)
TAA Compliant (desktop image)TAA Compliant (mobile image)
104-5202-Mounted Desk (desktop image)104-5202-Mounted Desk (mobile image)

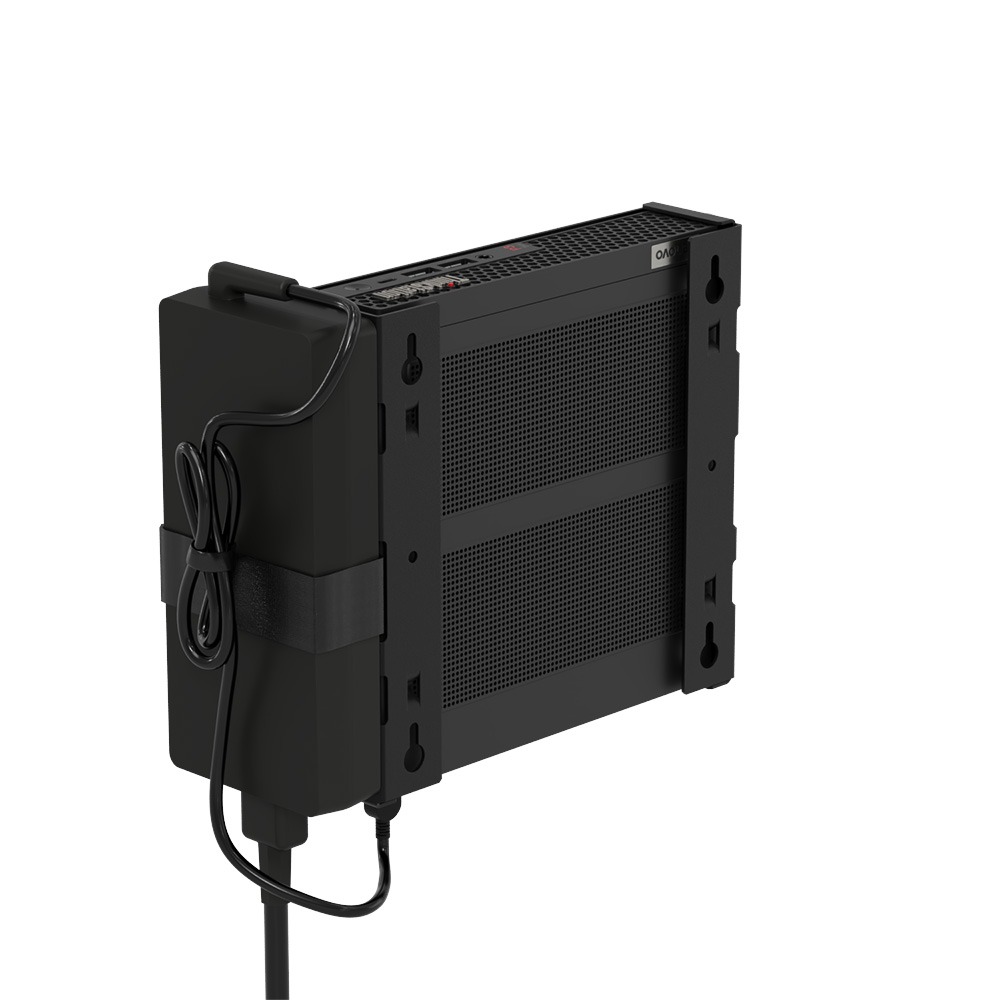

Mount it on a wall or under a desk

The vertical wall mount rack's low-profile flush mounts networking equipment against the wall can hide it under a desk.
104-5202-Lock (desktop image)104-5202-Lock (mobile image)

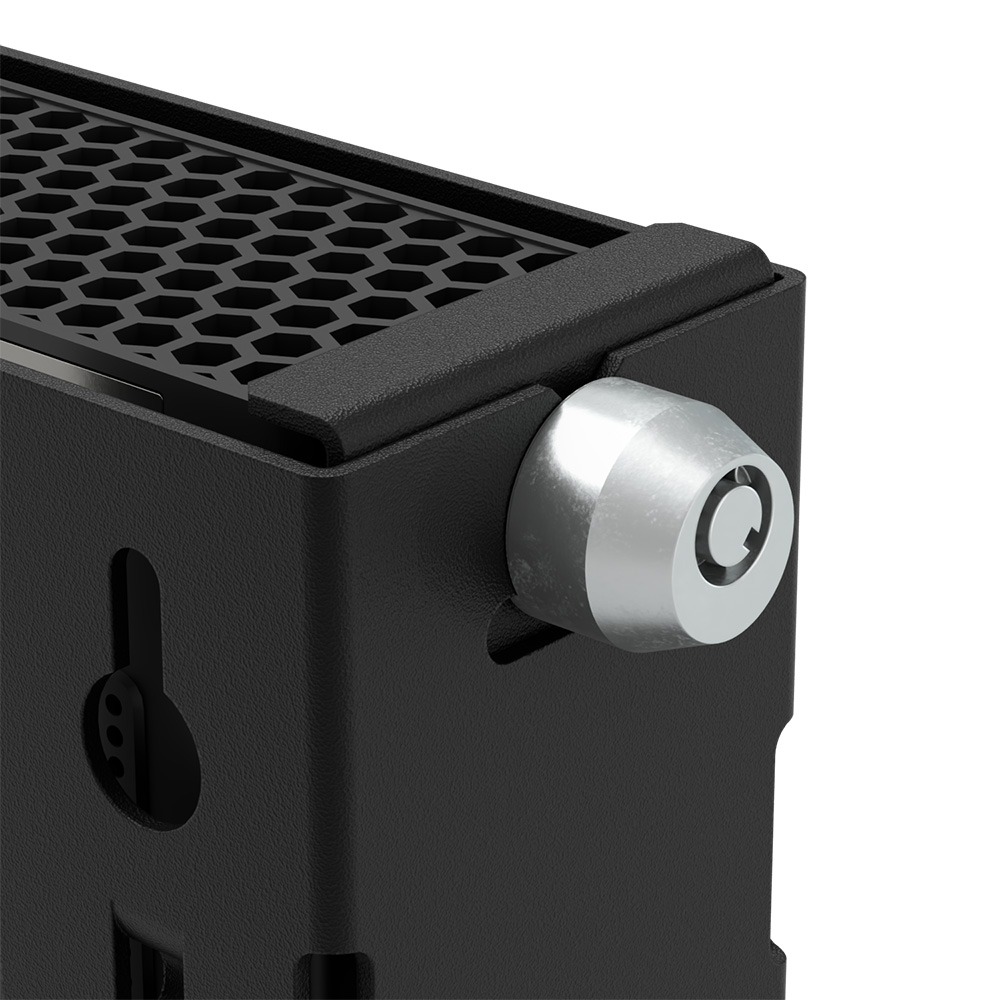

Optional Lock Upgrade

Secure your Lenovo ThinkCentre Tiny Desktop computer with an optional barrel lock upgrade.

RackSolutions' Lenovo ThinkCentre M93p Wall Mount utilizes the Tiny Desktop's ultra SFF to create a more efficient and compact workstation by mounting the device to a wall with a LCD monitor. In addition to being mounted to a wall, the steel enclosure can also be used to mount the PC behind a monitor or under a desk. A barrel lock bracket upgrade is available to prevent the PC from being stolen. Two versions of the wall mount are available, one that allows your monitor to tilt and one that stays fixed. Monitors attach the mount using the 75 mm and 100 mm VESA hole patterns on the front of the mount. The Lenovo ThinkCenter Tiny Desktop wall mount is compatible with Lenovo M93p, M92p, M600, M700, M900, M53, and M83 Tiny desktops. All required mounting hardware is included.

For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained (opens in a new tab).


VESA StandardHole PatternMonitor WeightScreen Size
FDMI MIS-C75 x 35 mm≤ 10 lbs / ≤ 4.5 kg8" to 11.9"
FDMI MIS-D75 x 75 or 100 x 100 mm≤ 30.8 lbs / ≤ 14 kg12" to 23.9"
FDMI MIS-E200 x 100 mm≤ 50 lbs / ≤ 23.7 kg24" to 30.9"
VESA Specifications Guides (desktop image)VESA Specifications Guides (mobile image)

For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained. (opens in a new tab)

More Information
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware "104-5201 | 104-5202
  • Assembly Components:
    • (1) Mount Bracket
    • (1) Tilt Monitor Bracket (104-5201 Only)
    • (1) Hook and loop strap
  • Wall Mount Hardware Package:
    • (4) Drywall Anchors
    • (4) 8-32 x 1.250 Pan Head Screws
  • Tilt Monitor Bracket Hardware Package (104-5201 Only):
    • (4) 8-32 x 0.375 Pan Head Screws
  • Fixed Monitor Mount Hardware Package:
    • (8) Spacers
    • (4) M4 x 0.7 x 10mm Pan Head Screws
    • (4) M4 x 0.7 x 18mm Pan Head Screws
    • (4) M4 x 0.7 x 25mm Pan Head Screws

101-5205
  • Kit Contents
    • (1) Security Lock Key
    • (1) Locking Bracket
    • (1) Security Lock
"
Compatible Products Lenovo M53 Tiny Desktop
Lenovo M600 Tiny Desktop
Lenovo M700 Tiny Desktop
Lenovo M70q Gen3 Tiny Desktop
Lenovo M70q Tiny Desktop
Lenovo M73 Tiny Desktop
Lenovo M75q Gen2 Tiny Desktop
Lenovo M80q Gen3 Tiny Desktop
Lenovo M80q Tiny Desktop
Lenovo M83 Tiny Desktop
Lenovo M900 Tiny Desktop
Lenovo M90q Gen3 Tiny Desktop
Lenovo M92p Tiny Desktop
Lenovo M93p Tiny Desktop
Synnex Part Number 104-5202 - 4841835
101-5205 - 4841843
104-5201 - 4841840
Ingram Part Number 104-5202 - 01TT48
101-5205 - 7R6086
Compatibility Lenovo
Finish Black, textured powder finish
