Lockable Rackmount Storage Boxes
Keep everything safe and accessible
- Why put drawers & boxes in a server rack?
- Store patch cables, networking tools, and more
- Cable access holes located in rear
- Lock and keys keep equipment secure

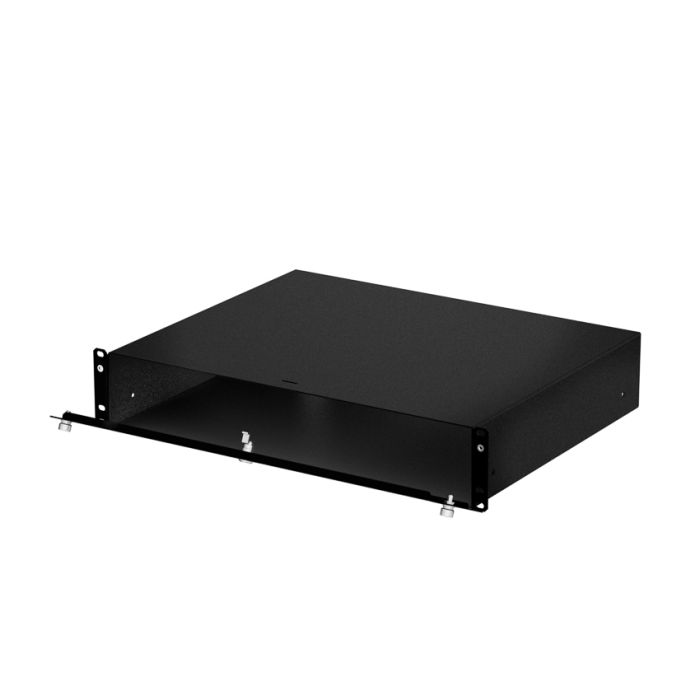

Lockable storage box for server racks
- EIA 19" compatible
- 2U, 3U, and 4U sizes
- 100 lbs (45 kg) max capacity
- Installs in 4 post and 2 post racks
RackSolutions Lockable Rackmount Storage Box provides a secure location to store equipment that you need on-hand for your server rack, such as patch cables, networking tools, USB drives, hardware, and more.
Available in sizes ranging from 2U-4U, the rack-mountable drawer features a hinged locking door to protect your equipment from unauthorized access. Rear access holes allow cables to be routed to any equipment that is stored in the rackmount box.
Additionally, racks with 30” of mounting depth or more will be able to mount 2 lockboxes in the front and back. The lockbox cover has thumb screws for when you want to close the box without fully locking it.
|Assembly Notes||Phillips head screwdriver required|
|Dimensions||2U Dimensions (W x H x D):
19" x 3.45" x 14.25" (483 mm x 88 mm x 362 mm) 3U Dimensions (W x H x D):
19" x 5.2" x 14.25" (483 mm x 132 mm x 362 mm) 4U Dimensions (W x H x D):
19" x 6.95" x 14.25" (483 mm x 177 mm x 362 mm) Weight Capacity: 100 lbs (45 kgs) Cable Access Hole: 1.25" (32 mm) Inside Width: 17.45" (444 mm)
|Finish||Black, textured powder coat|
|Included Hardware||Assembly Components:
|Synnex Part Number||2UBOX-161 - 4614632 3UBOX-161 - 4614633 4UBOX-161 - 4614634|
|Ingram Part Number||2UBOX-161 - V42822 3UBOX-161 - 5KQ486 4UBOX-161 - V42824|
|Amazon ASIN||2UBOX-161 = B003E8XHIC 3UBOX-161 = B003HLE2I0 4UBOX-161 = B0035B6O10|

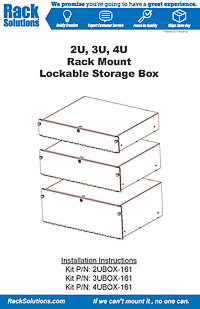

Download Lockable Rackmount Storage Boxes Installation Instructions (opens in a new tab)
Download 2U Lockable Rackmount Box Dimensional Drawing (opens in a new tab)
Download 3U Lockable Rackmount Box Dimensional Drawing (opens in a new tab)
Download 4U Lockable Rackmount Box Dimensional Drawing (opens in a new tab)
