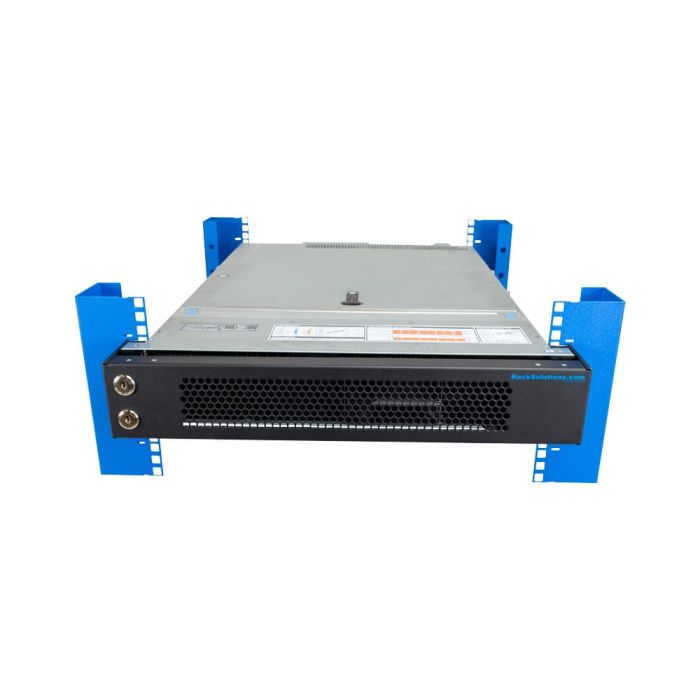

PCI DSS Dual Lock Secure Server Bracket

$174.99
In stock
SKU
124-6909

Secure Servers With Sensitive Data

  • Prevents unwanted access to server hard drives with sensitive customer information
  • Requires 2 different keys to unlock, assisting in PCI DSS compliance standards
  • Perfect for securing individual servers in an open frame rack
  • Provides an additional layer of security in an enclosed cabinet

Accommodates Any Server In Any Rack

  • Compatible with 1U and 2U servers
  • Adjustable mounting bracket to fit servers, rail kits, and racks of varying sizes
  • Mounts equipment using universal square holes

Designed With PCI Compliance Standards in Mind

RackSolutions' PCI DSS Dual Lock Secure Server Bracket provides an additional layer of security for individual rack-mounted servers containing sensitive data, such as customer credit card information. The bracket secures the server in place using 2 different locks, requiring different keys. This system is especially effective when 2 different staff members keep keys, so if one is compromised, the server remains secure and PCI DSS Compliant. The bracket is compatible with server chassis with rail kits up to 2U. To assist with compatibility, the bracket and mounting ears are adjustable to fit servers, rail kits, and server racks of varying sizes and depths.

Mounting the Locking BracketsMounting the Locking Brackets

Step 1: Mount the Locking Brackets

First, install the left and right Locking Brackets. These Locking Brackets take up 2 U-spaces and the Server Attachment Brackets connect to them. The Server Attachment Brackets replace the square mounting holes used by the Locking Brackets.

Adjust the Server Attachment BracketAdjust the Server Attachment Bracket

Step 2: Adjust the Server Attachment Bracket

Afterward, you will be able to adjust to the appropriate depth by moving the Server Attachment Brackets. The correct depth will depend on the Server Ear Thickness.
Install Server and Secure Server AssemblyInstall Server and Secure Server Assembly

Step 3: Install Server and Secure Server Assembly

Installing the rail kit and server works as usual, but instead of using a rack, you use the Server Attachment Brackets. Finally, attach the Secure Server Assembly bracket to the Locking Brackets and lock it into place using the provided keys.

More Information
Hole Type Square
Finish Black, Powder Coat

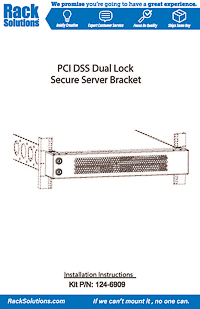

Assembly Notes Bracket position and orientation will be based on "Server Ear Thickness". After measuring the server ear thickness, follow the table in Step 2a in the instruction manual to determine Mounting Location and Bracket Orientation.
Included Hardware Kit Contents:
  • (1) Secure Server Assembly
  • (2) Server Attachment Brackets
  • (1) Locking Bracket (Left)
  • (1) Locking Bracket (Right)
Mounting Hardware:
  • (8) 12-24 x .500 Pan Head Screw
  • (8) 12-24 Cage Nut
  • (4) 8-32 x .250 Countersink Screw
Tech Notes Dimensions: 4.125" (H) x 22.625" (W) x 4.125" (D)
Net Weight: 3.982 lbs
RoHS Compliant Yes
TAA Compliant Yes
