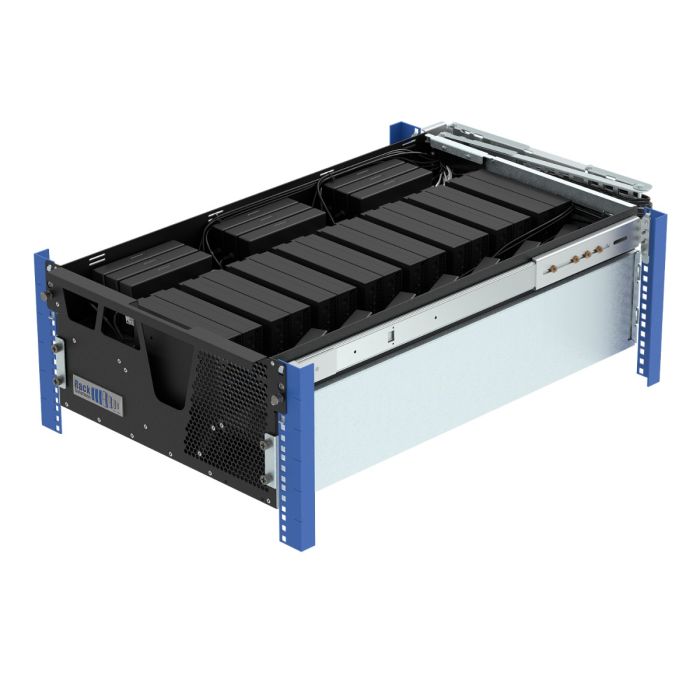

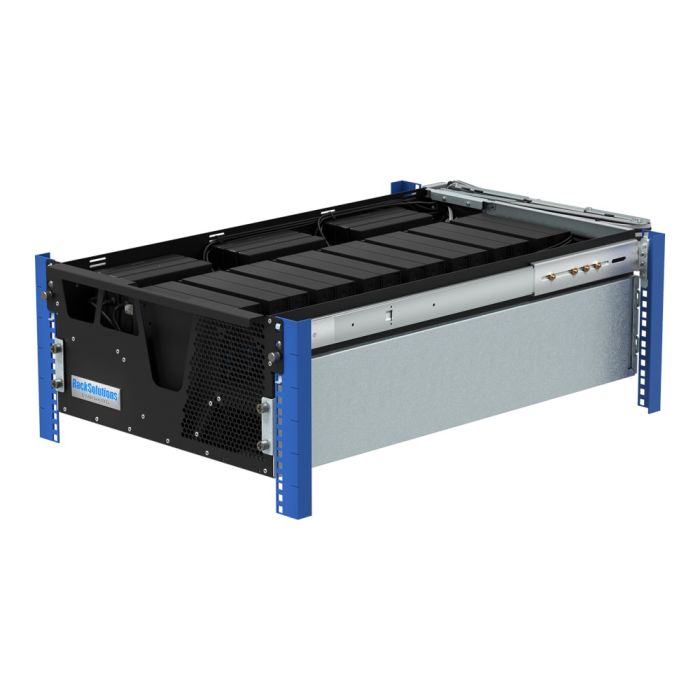

5U HyperShelf for 16 Dell Optiplex Micro
Rack 16 Dell Optiplex Micro Devices in One Shelf
- Great for server clusters and virtual machinesÂ
- Compatible with many Dell Optiplex Micro devices
- Designed to manage airflow effectivelyÂ
- No power button or port interferenceÂ
Operate with Maximum Efficiency
- Quick mount rails allow for fast deployment
- Fully articulated cable management arm included
- Removable side panels for cable access and cleaning
- 16 gauge galvanized steel, high-quality ball bearing slide
Mount Any Devices with the Same Form Factor as:
- Dell OptiPlex 7060 Micro
- Dell OptiPlex 7070 Micro
- See below for full compatibility list
The RackSolutions HyperShelf for Dell Optiplex Micro devices was inspired by an industry that is constantly improving on efficiency. System admins want to do more with less, and that is exactly what this HyperShelf was made for.
Not only is this the most space-efficient Optiplex Micro rack shelf on the market, but every piece of the design is tailored for ease of use. From the quick mount rail mechanism to designated cable pathways and removable side panels - anything that needs to be done can be done easily.

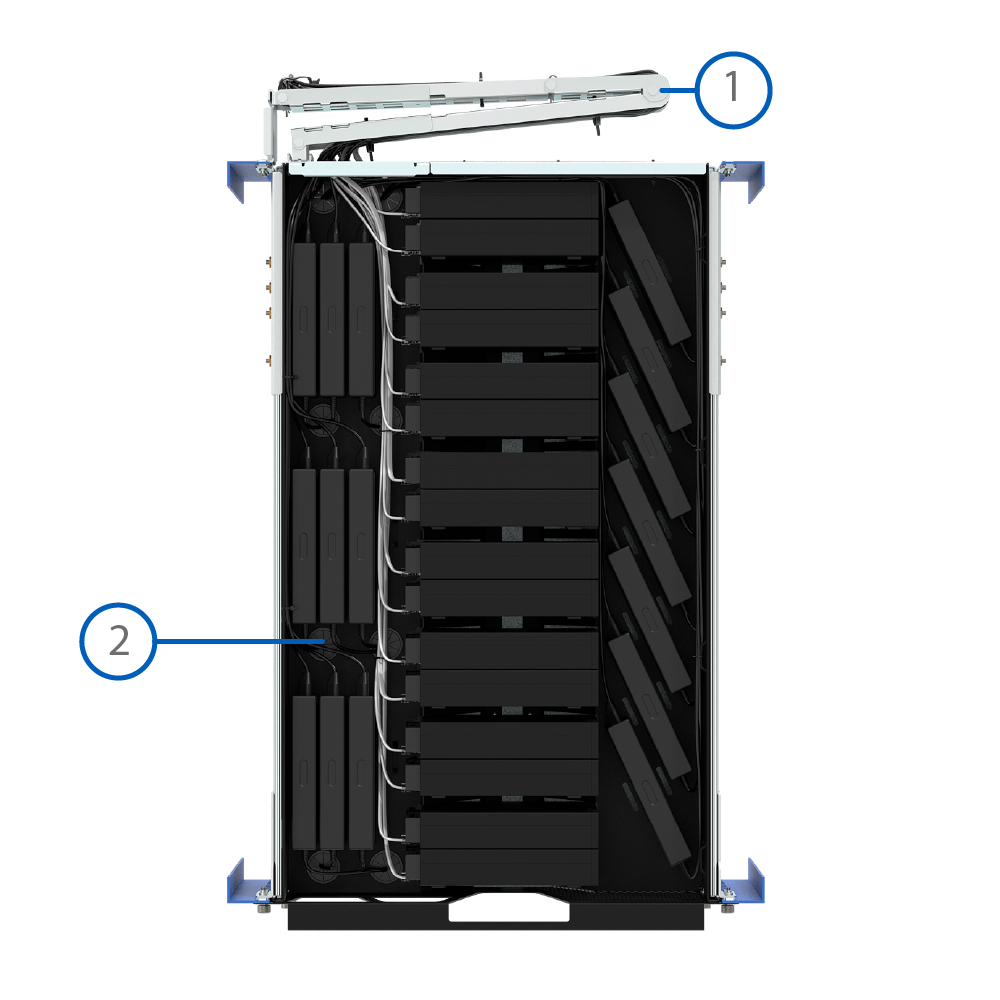

The fully articulated Cable Management Arm is compact and adjustable. The cable management arm extends out of the rack for in-rack serviceability, allowing you to easily slide your Optiplex Micro workstations in and out of the rack. The Optiplex Micro shelf features built-in cable management, so you can conveniently pass cables through the pathway within limited space.

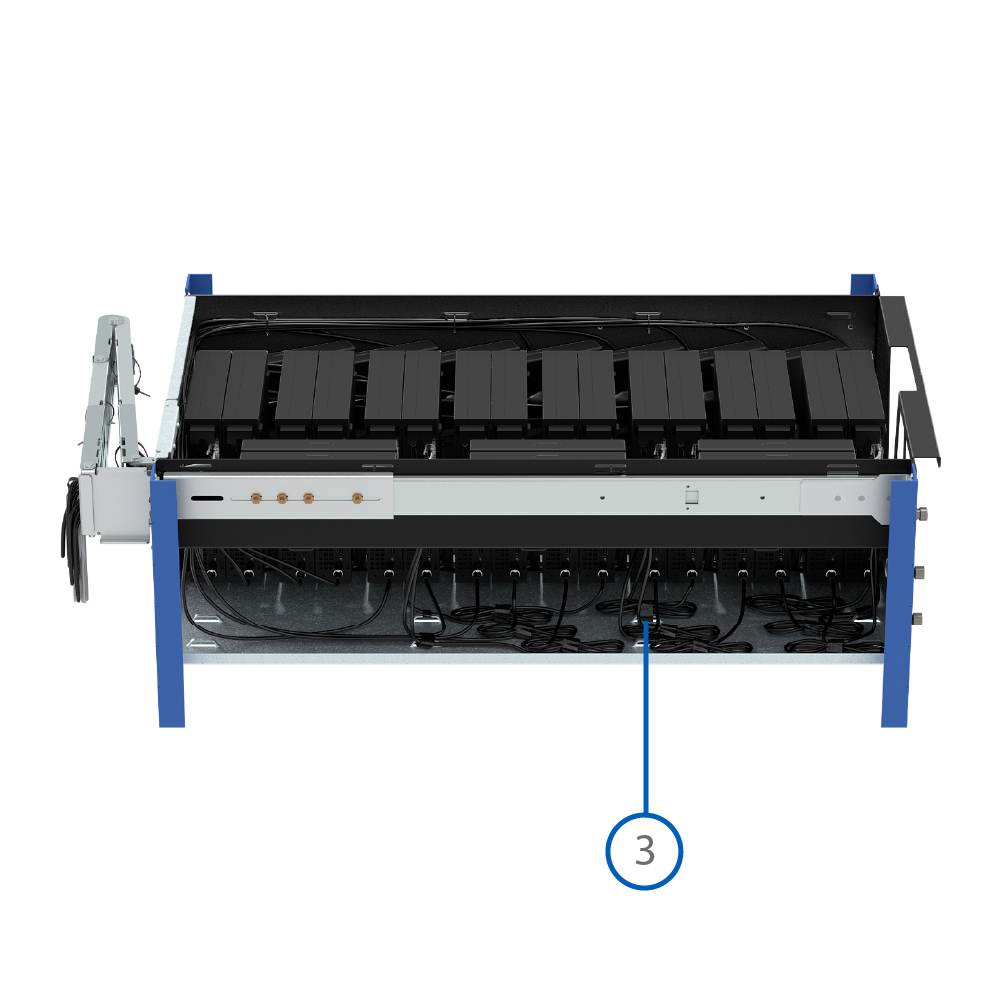

The Optiplex Micro HyperShelf features integrated tie points, allowing you to designate cable pathways for cable management and organization.

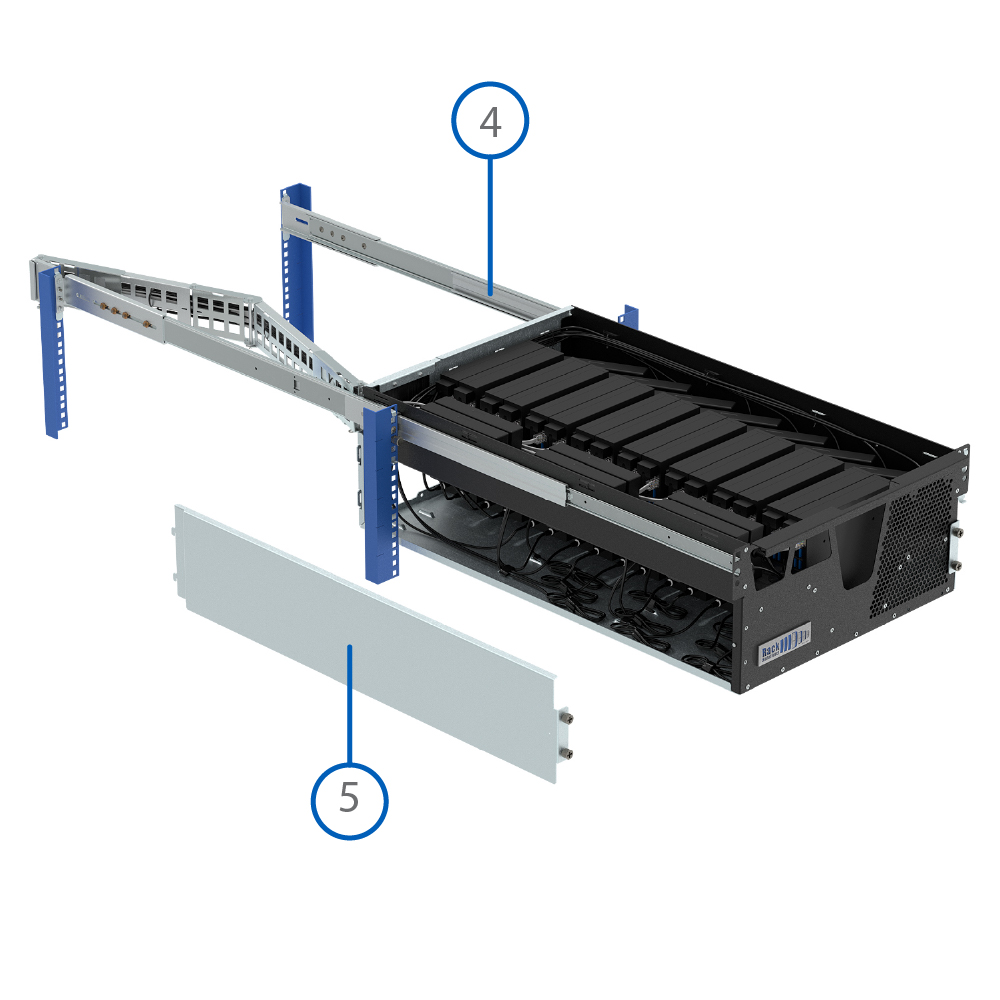

The rack mount shelf sits on high-quality ball bearing slide rails for easier serviceability and increased accessibility. For increased operational efficiency, the side panel provides airflow management for your devices. The removable side panel is included for cable access and exhaust containment.

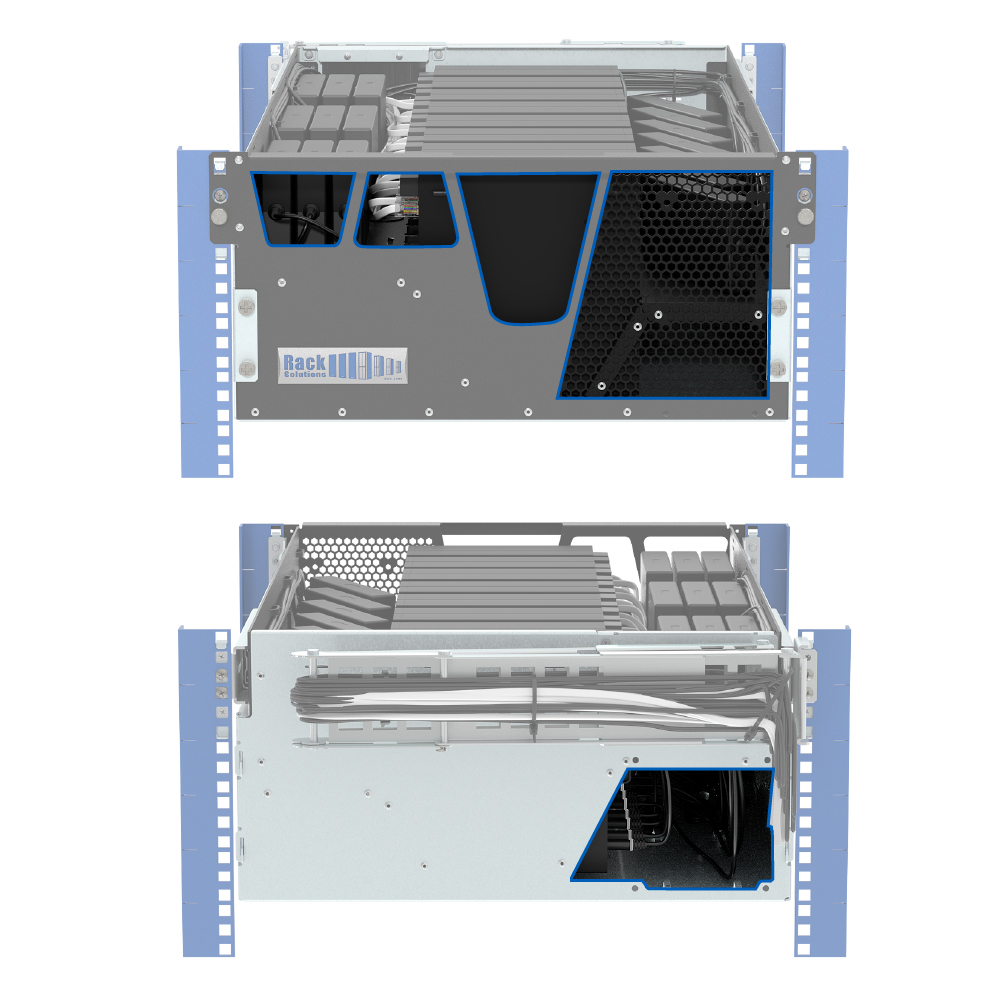

For optimal cooling and thermal efficiency, the Optiplex Micro HyperShelf features integrated airflow for your PCs. To prevent the air from mixing, the intake and exhaust separates the hot and cold air. The airflow management separates the hot and cold air, so you can be confident that your devices will not overheat.

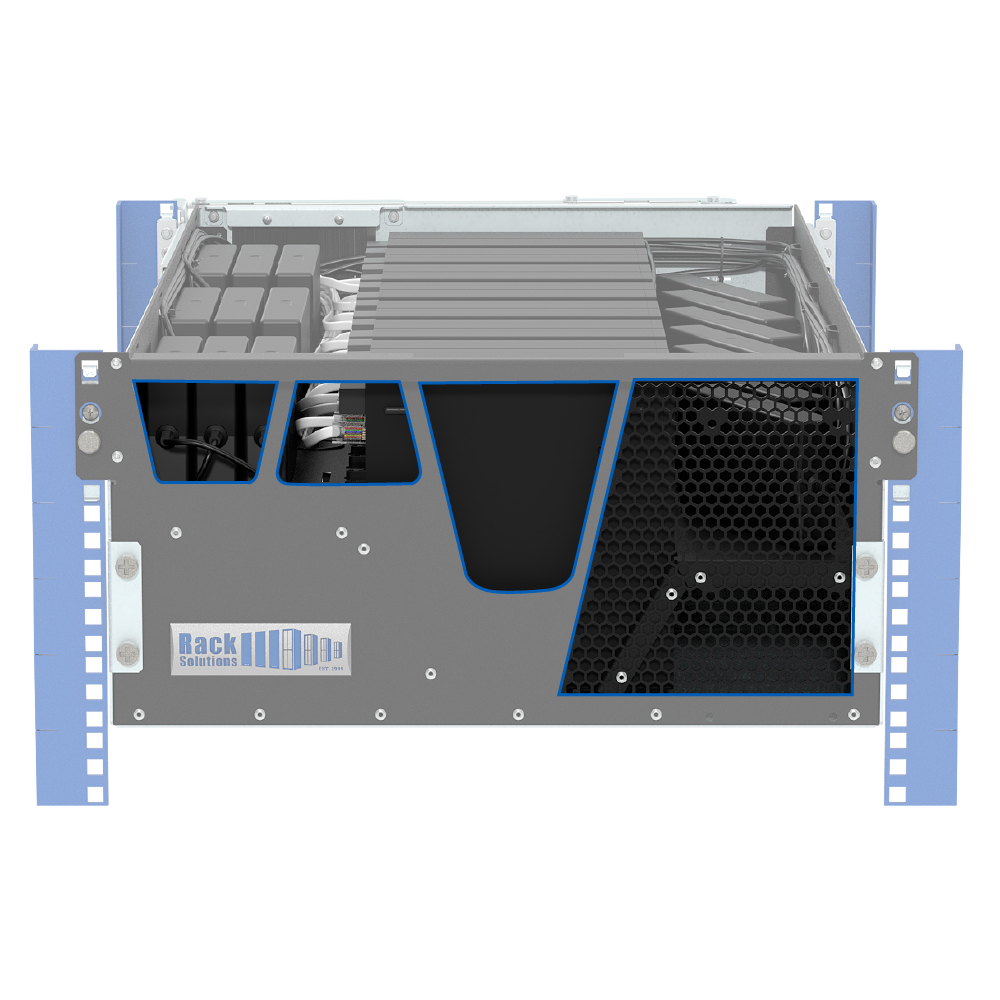

The front airflow management of the rack mount shelf includes mounting holes for optional fans to be installed. The airflow management separates the hot and cold air, so you can be confident that your Optiplex Micro will not overheat.

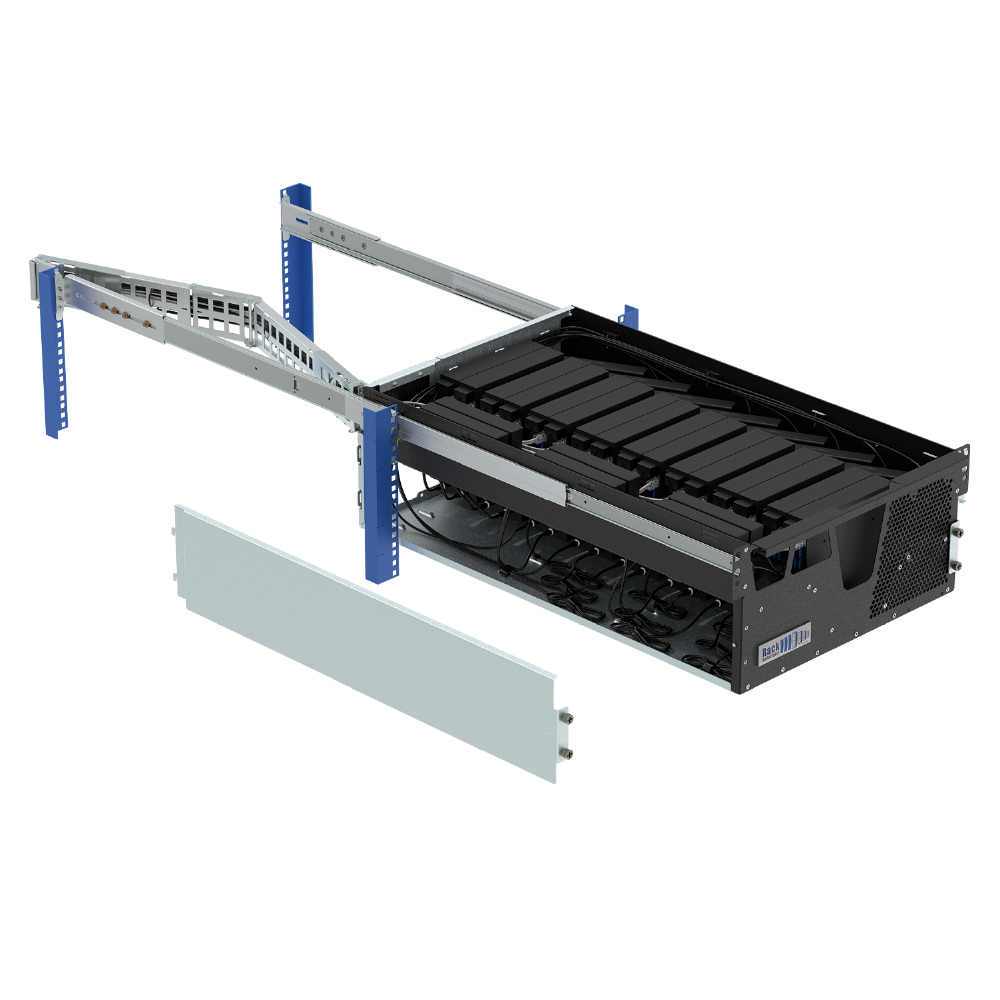

The rack mount shelf features removable side panels that allow for accessing power buttons, peripheral ports, or power supplies.
| Made In America | Yes |
|---|---|
| BABA Compliant | Yes |
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| UL Compliant | No |
| ETL Compliant | No |
| Weight (lbs) | 48.150000 |
| Country of Manufacture | United States |
| Included Hardware | 115-7418:
|
| Compatibility | Dell |
| Compatible Products |
|
| Dell PC Compatibility | OptiPlex 3050 MFF, OptiPlex 3060 MFF, OptiPlex 3070 MFF, OptiPlex 3080 MFF, OptiPlex 3090 MFF, OptiPlex 5050 MFF, OptiPlex 5060 MFF, OptiPlex 5070 MFF, OptiPlex 5080 MFF, OptiPlex 5090 MFF, Optiplex 7000 MFF, Optiplex 7010 MFF, OptiPlex 7010 Plus MFF, OptiPlex 7050 MFF, OptiPlex 7060 MFF, Optiplex 7070 MFF, OptiPlex 7080 MFF, OptiPlex 7090 MFF, OptiPlex 7020 Plus MFF, OptiPlex 7020 MFF, OptiPlex 3000 MFF, OptiPlex 5000 MFF |
| Ingram Part Number | 115-7418 - 02CZ56 |
| Fixed/Sliding | Sliding |
| Finish | Galvanized Steel |
| Hole Type | Square |
| Material | 16 GA Galvanized steel, 14 GA CRS, 16 GA CRS |
| Shelf Depth | 25"-30" (635mm-762mm) |
Download 5U HyperShelf for 16 Dell Optiplex Micro (115-7418) Installation Instructions (opens in a new tab)
Download 5U HyperShelf for 16 Dell Optiplex Micro (115-7418) Dimensional Drawings (opens in a new tab)
Download Fan Upgrade Kit for HyperShelves (106-8448) Installation Instructions (opens in a new tab)
Download Fan Upgrade Kit for HyperShelves (106-8456) Installation Instructions (opens in a new tab)
