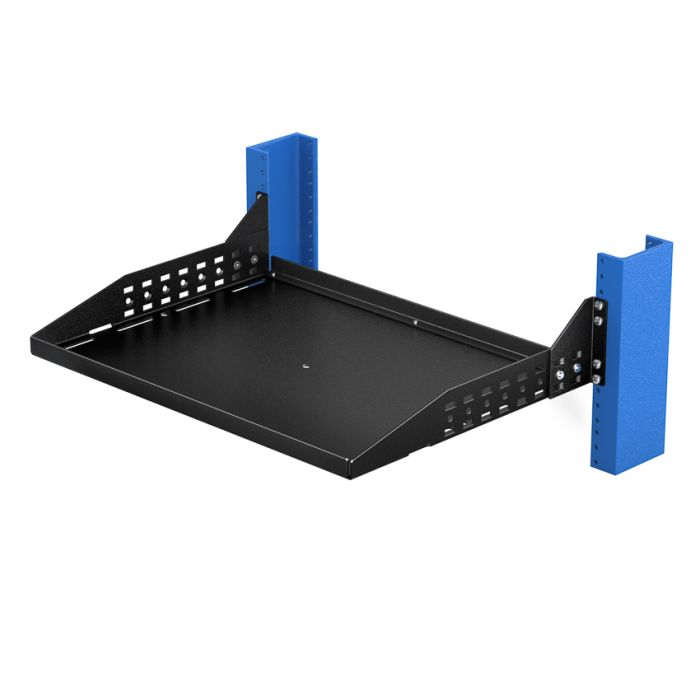

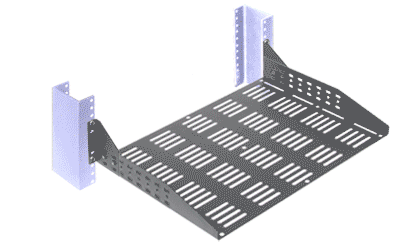

RackSolutions 13" Configurable 2 Post Rack Shelf is designed to be able to be configured to your needs. With a depth of 13 inches (330 mm) and a weight capacity of 150 lbs (68 kgs), the shelf can support a wide variety of networking, AV, and telecommunications equipment. The shelf's position can be adjusted along the mounting mounting bracket in 1" increments. Equipment stops, also called flanges, can be also be re-positioned on the shelf or removed entirely if desired. The shelf mounts the rack cantilever, meaning that it attaches to the rack at only one side of the shelf. Slots for equipment straps along the side of the shelf can be used for strapping down and securing equipment mounted on the shelf. Our 2Post relay rack shelves are designed to fit standard EIA 19" racks.
Shelf AdjustmentsRackSolutions 2U Configurable Cantilever 2 Post Rack Shelf is designed to be able to be configured to your needs.
Shelf FeaturesRackSolutions 2Post relay rack shelves are designed to fit standard EIA 19" racks.
- Additional Information
Dell Part Number 2USHL-020-HALF-13V - A9473412 Assembly Notes Phillips head screwdriver required Equipment Depth The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges. The flanges are used to increase the load bearing capacity of the rack mount shelf or used to prevent equipment movement. Shelf Type Solid , Vented Rack Type 2 Post Fixed/Sliding Fixed Shelf Surface Area 13" x 17.375" (330 x 441 mm) Finish Black, textured powder coat Mounting Depth Range These 2Post rack shelves are cantilever mounted and will install into any
2Post rack as well as any 4Post server rack
Included Hardware 10-32 & 12-24 pan head screws Weight Capacity 150 lbs (68 kgs) Rack Units 2U Tool-less/Standard Standard Overall Installation Depth 13" (330 mm) Material 16 GA Steel RoHS Compliant Yes Tech Notes These 2Post rack shelves can be installed in a 4Post server rack
