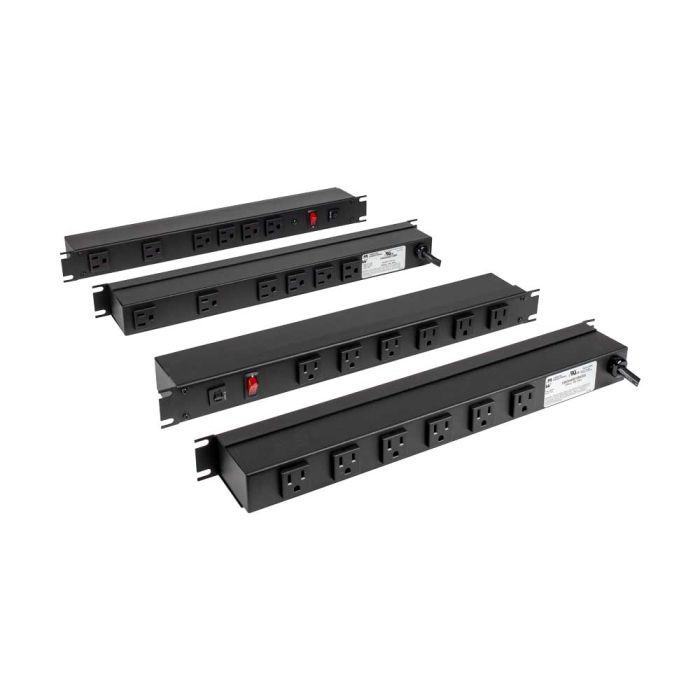

15A Horizontal Rackmount Right Angle Outlet Power Strips
Power all equipment in your rack
- 12,000 amp rated MOV's
- CSA certified and UL recognized
- NEMA 5-15 plugs and receptacles
- 15A, 125VAC circuit breaker
- 6 outlets
- Rack mounts horizontally
- Optional surge protection
Compatible with any 2Post and 4Post rack
- Fits in any standard EIA 19" rack
- Works with square, round or threaded hole racks
Learn more about receptacle & plug types (opens in a new tab).
15A Horizontal Rackmount Power Strips with Surge Protection
These Rackmount Powerstrips protect equipment with built in surge suppression. The surge suppression protects in all three AC modes: Line to Neutral, Neutral to Ground, and Line to Ground. The power strips also have a circuit breaker that protects in over current situations. This rackmount power strip is designed to distribute power from either the front or the rear of the unit and have a lit ON/OFF switch to indicate power. The horizontal power strips are perfect for providing power to rack mounted equipment such as switches and servers.
15A Horizontal Rackmount Power Strips
The receptacles on this model of powerstrip are turned 90 degrees to allow for AC adapters. This type of unit is able to provide power from either the front or the rear depending on which model is used. The powerstrip has a lit ON/OFF switch to indicate power and a 15A circuit breaker to prevent over current situations. The Rack Mount Power Strip is CSA Certified and UL Recognized.
| Cord Length | 15 foot, 6 foot |
|---|---|
| Nominal Discharge Current | 5kA |
| Surge Protection | Yes |
| Surge Max. Energy (Joules) | 1080 |
| Surge Voltage Protection Rating | 500V |
| Powerstrip Certification | CSA certified Standards C22.2 (No. 21-95, 42-99, 8-M1986) |
| Surge Suppression | 12,000 Amp rated MOV's (Metal Oxide Varistor) Max 36,000 Amps transient current and 780 Joules 400V UL 1449 suppressed voltage rating Protection in all 3 AC modes (L-N, N-G, L-G) Green indicator light confirms surge module is active |
| Receptacles & Plugs | NEMA 5-15P, NEMA 5-15R |
| Number of Outlets | 6 Outlets |
| Powerstrip Orientation | Horizontal |
| Amperage | 15A |
| Tech Notes | The internal protection will disconnect the surge module at the end of it's useful life and extinguish the green light but will maintain unprotected power to the load |
| Synnex Part Number | PS19-F6-15-S-F - 5389321 PS19-R6-15-S-M - 5389331 PS19-F6-6-S-E - 5389327 PS19-R6-6-S-L - 5389335 |
| Ingram Part Number | PS19-FR6-6-A - TB2276 PS19-F6-15-S-F - BG5795 PS19-R6-15-S-M - QU4619 |
| RoHS Compliant | Yes |
| Assembly Notes | Fully Assembled |
| TAA Compliant | No |
