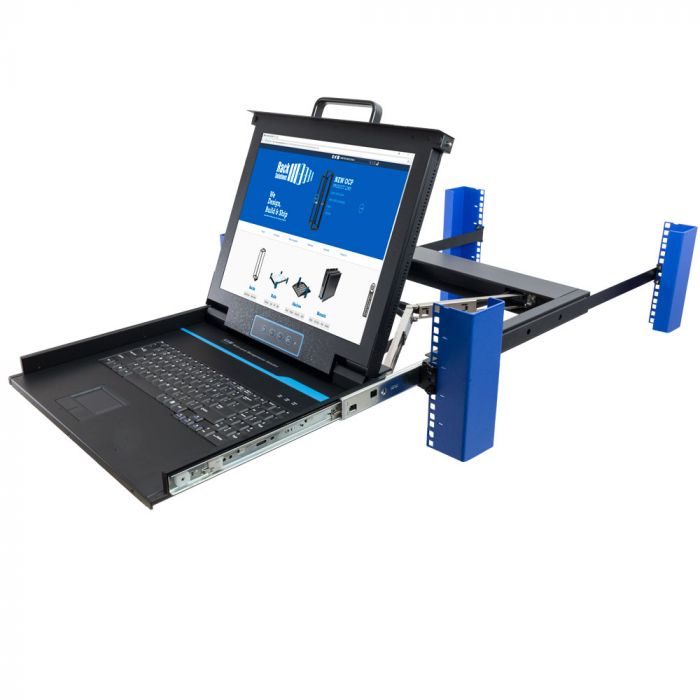

1U Sliding KVM with Keyboard, Trackpad and 17in Monitor (1 KVM Port)

main product photo
RoHS Compliant (default) RoHS Compliant (hover)
Proudly US Made (default) Proudly US Made (hover)
Be the first to review this product
$1,220.00
Quote Now / Temporarily Out of Stock
SKU
185-5286
Log in to get notified when this product is in stock
Sign In for free shipping on products marked with Shipping details icon(see details)
Look for products eligible for free shipping marked with Free Shipping(see details)
Resources

Manage server systems within a rack

  • 1 port KVM switch controls a single system (15 pin VGA)
  • Built-in cable management arm
  • Console auto sleeps when closed
  • Compatible with standard EIA 19" racks
  • Slides in and out on high quality ball bearing slides
  • Easily folds away into 1U when not in use

All-in-One keyboard, mouse, and monitor

  • 17" TFT LED Monitor
  • Supports resolution up to 1280 x 1024
  • 75 Hz refresh rate
  • 106-key US standard keyboard
  • Integrated easy to use touchpad

RackSolutions 1U KVM 1 Port Console is perfect for controlling a single system within a server rack using a 15 pin VGA port or a large system with the addition of a KVM switch. The entire console integrates a 17" LED monitor, a 106-key keyboard, and touchpad within a single rack unit. The KVM console easily slides in and out of the rack on high quality ball bearing slide rails and locks in place when opened or closed. The integrated cable management feature keeps the sleeved cables from getting tangled. When the console is closed, it is set to auto-sleep to save power as well as increase the life of the product and easily folds away into 1U when not in use.

Additional Information
More Information
Made In America Yes
BABA Compliant No
RoHS Compliant Yes
TAA Compliant No
UL Compliant No
ETL Compliant No
Weight (lbs) 35.620000
U Height 1U
Rack Type 4 Post
Rack Hole Type 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole
Fixed/Sliding Sliding
Weight Capacity 30 - 100 lbs
Dell Part Number AB149650
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 185-5286 - 4723901
Ingram Part Number 185-5286 - 6HA805
Resources
PDF Data Sheet preview for 1U Sliding KVM with Keyboard, Trackpad and 17in Monitor (1 KVM Port) (185-5286)

Data Sheet

1U Sliding KVM with Keyboard, Trackpad and 17in Monitor (1 KVM Port) (185-5286)

Open PDF

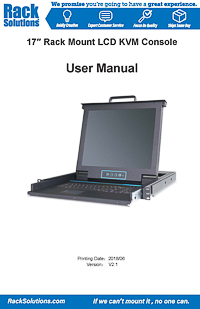

PDF Installation Instructions preview for 1U Sliding KVM with Keyboard, Trackpad and 17in Monitor (1 KVM Port) (185-5286)

Installation Instructions

1U Sliding KVM with Keyboard, Trackpad and 17in Monitor (1 KVM Port) (185-5286)

Open PDF
PDF Dimensional Drawings preview for 1U Sliding KVM with Keyboard, Trackpad and 17in Monitor (1 KVM Port) (185-5286)

Dimensional Drawings

1U Sliding KVM with Keyboard, Trackpad and 17in Monitor (1 KVM Port) (185-5286)

Open PDF
Kit Contents

Kit Contents:

  • (1) 1U Sliding KVM w/ Keyboard, Trackpad and 17in Monitor (1KVM Port)
