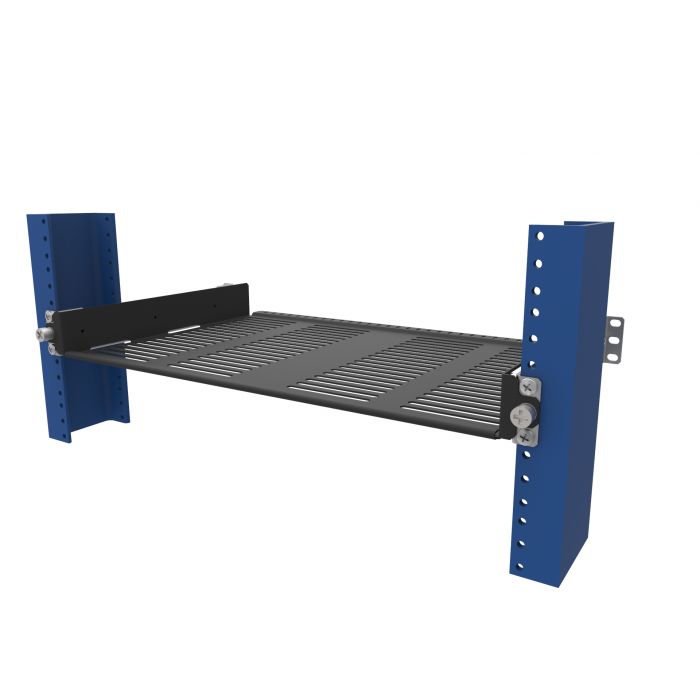

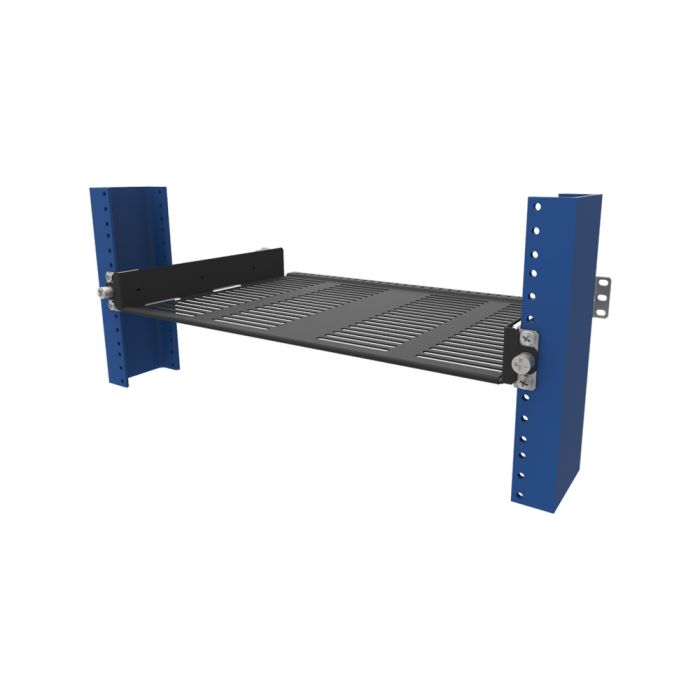

2 Post Rack Sliding Half Shelf

Rating:
80% of 100
$145.00
In stock
SKU
115-4779

Sliding Shelf for Easy Access

  • Slides for access to the back of equipment
  • Compatible for ease of use with enclosed wall mounts
  • Saves space in transport cases
  • Flush or Rear Mounting

Fits any 2 Post of 4 Post Rack

  • Only takes up 1U of space
  • High Quality 16 GA Steel
  • Weight Capacity: 30lbs (13.6kgs)
  • Shelf Depth: 10.3" (261.6mm)
  • Compatible with round, threaded, or square rack holes

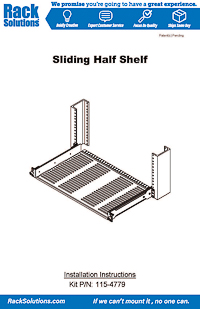

See "Additional Information" for Technical Specifications.

RackSolutions 2Post Rack Sliding Half Shelf is a 19" EIA standard for 2Post racks. We designed the half rack mount for lightweight products such as laptops in 2Post or 4Post racks. Additionally, the half shelf can be used with enclosed wall mounts and transport cases. The half rack mount sliding shelf allows for easy access to the back of the equipment, saves space in transport cases, and is compatible to reach needed equipment inside an enclosed wall mount.

Our 2Post half rack shelf has a 30 lb (13.6 kgs) equipment capacity and a total shelf extension of 21” (533.4mm). Electronic devices up to 10.3" (261.6mm) deep can be supported on this 2Post half shelf and slides in and out for easier servicing. This rack shelf includes all of the tools needed for installation and is compatible with standard 2Post or 4Post racks.

More Information
Visbility Bypass Enabled Yes
Dell Part Number 115-4779 - A8930306
Assembly Notes Phillips head screwdriver required
Equipment Depth Supports equipment up to 10.3" (261.6mm)
Shelf Type Vented
Rack Type 2 Post , 4 Post
Fixed/Sliding Sliding
Shelf Surface Area 16.9" x 10.3" (429.26 mm x 261.6 mm)
Finish Black textured powder coat
Mounting Depth Range Compatible with any 2Post or 4Post rack
Included Hardware 10-32 & 12-24 pan head screws
Tool-less/Standard Standard
Overall Installation Depth 10.3" (261.6mm)
Hole Type Compatible with round, threaded, or square rack holes
Material 16 GA steel
Amazon ASIN B01BVRNX6I
TAA Compliant Yes
RoHS Compliant Yes
