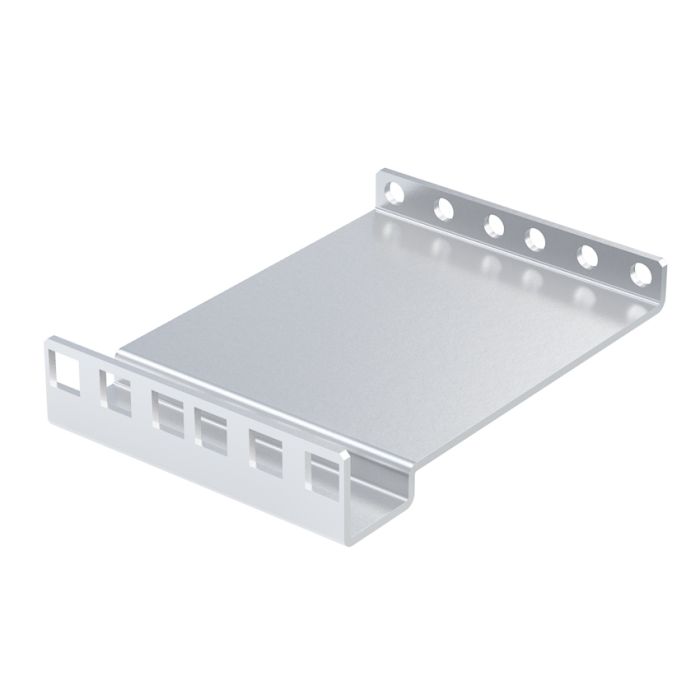

5" Adapter Bracket Set - 2U and 4U

Starting at $59.99

In stock
Hardware Not Included (brackets Sold As A Pair)
Grouped product items
Product Name SKU Qty
4U Adapter Kit - 5"
$64.99
4UKIT-101-CG001
2U Adapter Kit - 5"
$59.99
2UKIT-101-CG001

Designed to rackmount Dell Rapid Rails in almost any rack

  • Does NOT work with L shaped uprights
  • Converts round holes to square holes
  • Used to mount Dell Rapid Rails
  • 2U and 4U sizes available
  • 2 brackets per kit
  • Weight capacity: 50 lbs per rack unit

Please note that these do not work with L shaped uprights. These adapter brackets from RackSolutions are designed specifically for rack mounting Dell Rapid Rails. The brackets can be used to both reduce or decrease the rack depth, depending on which direction you mount the bracket. The brackets are also have the added bonus of converting round hole racks to square hole racks which allow the tool-less Dell Rapid Rails to be installed into almost any rack. The adapter brackets come in 2U or 4U sizes and are 5 inches (127 mm) in length.

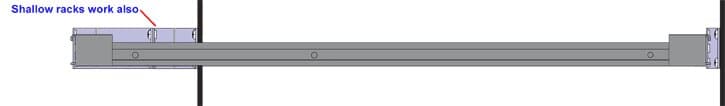

Shallo w Rack ExtensionShallo w Rack Extension

Extension for Shallow Rack

For shallow depth racks, our brackets can be used for rails that extend out past the uprights.

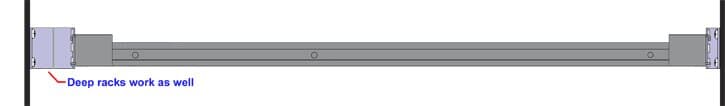

Server Rail Extension Server Rail Extension

Extension for Deep Racks

If the rails that were supplied with your server are to shallow, the 1U adapter bracket allows the extra space needed to mount the rails.

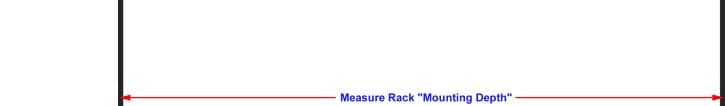

Measure Mounting Depth Measure Mounting Depth

What's the Mounting Depth?

First, measure the mounting depth of your server rack, to determine the size of bracket that you will need.

Install BracketsInstall Brackets

Bracket Installation

Install brackets (hardware not included) in the space where the rack needs to be extended or reduced.

More Information
RoHS Compliant Yes
Amazon ASIN 2UKIT-101-CG001 = B00UVK8D2Q
4UKIT-101-CG001 = B00TGP3FFW
TAA Compliant Yes
