2U Cobra 130-A Rail for Dell
Installs in 4 Post and 2 Post Racks
- 4 Post: Mounting depth of 17.5” - 30.5” (444.5 - 774.7 mm)
- 2 Post: Center mounting depth of 3” - 6” (76.2 - 152.4 mm) uprights
- Flush mount installation requires the Conversion Bracket 4-Pack (opens in a new tab)
- Compatible with square, round, and threaded holes
- Supports L, C, and ? rack upright shapes
Sliding Alternative to Dell ReadyRails
- Compatible with Dell XR11 and XR12
- Sliding rack rails provides easy serviceability
- High-quality dry slide rack rails
- Original Dell rail kit not required
- Slide rails allow for easy maintenance and removal

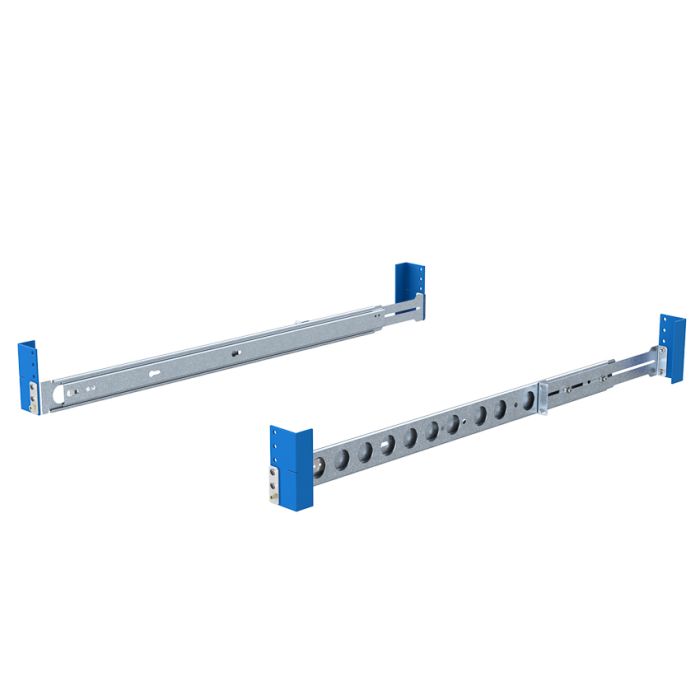

RackSolutions 2U Sliding Rail Kit serves as an alternative to Dell OEM rail kits and provides an easy-to-install rail solution for Dell compatible racks. The sliding rack rails are compatible with the Dell PowerEdge XR11 and XR12. Compared to the Dell OEM Rail Kit, our sliding rack rail kit mounts in 4 Post and 2 Post racks that meet 19” EIA-310 standards. A flush mount kit (opens in a new tab) is required for flush mount rail installation. The conversion brackets must match the corresponding rail’s U height (e.g., 1U rail = 1U Conversion Bracket).
The sliding rack rails occupy 2U of rack space and are compatible with square, round, and threaded holes. Designed to last longer than ball-bearing rail kits, the dry slides allow you to easily extend equipment in and out of your server rack.
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Weight (lbs) | 3.752000 | Country of Manufacture | United States | OEM Compatibility | Dell | Replacement Dell OEM Rail | A20 | Product Line | PowerEdge | Form Factor | Server | U Height | 2U | Rack Type | 2 Post , 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Fixed/Sliding | Sliding | Weight Capacity | 30 - 100 lbs | Finish | Galvanized | Ingram Part Number | 122-8651 - 06UY71 |
|---|
Kit Contents:
- (2) Outer Rail (Left & Right)
- (2) Inner Rail (Left & Right)
- (2) Rear Bracket
Rear Bracket Hardware:
- (4) 8-32 x .375 Flat Head Screw
- (4) 8-32 Keps Nuts
Mounting Hardware:
- (8) 8-32 x .500 Pan Head Screw
- (2) Retainer Plate (Left & Right)
- (2) Mounting Plate
Rack Mount 8x:
- (8) 10-32 x .500 Pan Head Screw
- (8) 12-24 x .500 Pan Head Screw
- (8) 12-24 x Square Nut
- (8) 12-24 x Cage Nut
- PowerEdge XR11
- PowerEdge XR12
