Rackmount KVM 4Post

Availability: In stock

Rackmount KVM 4Post
  • Rackmount KVM folded in
    Rackmount KVM folded in
    close

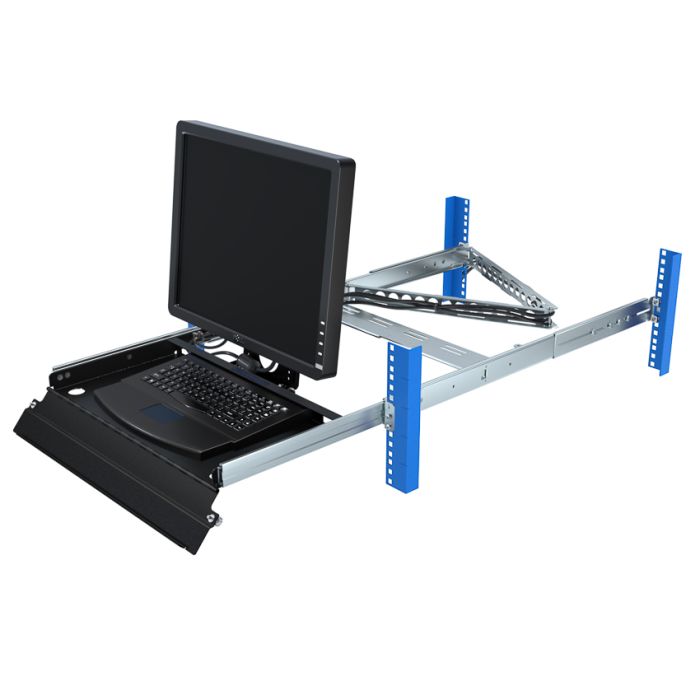

  • Rackmount KVM extended from rack
    Rackmount KVM extended from rack
    close

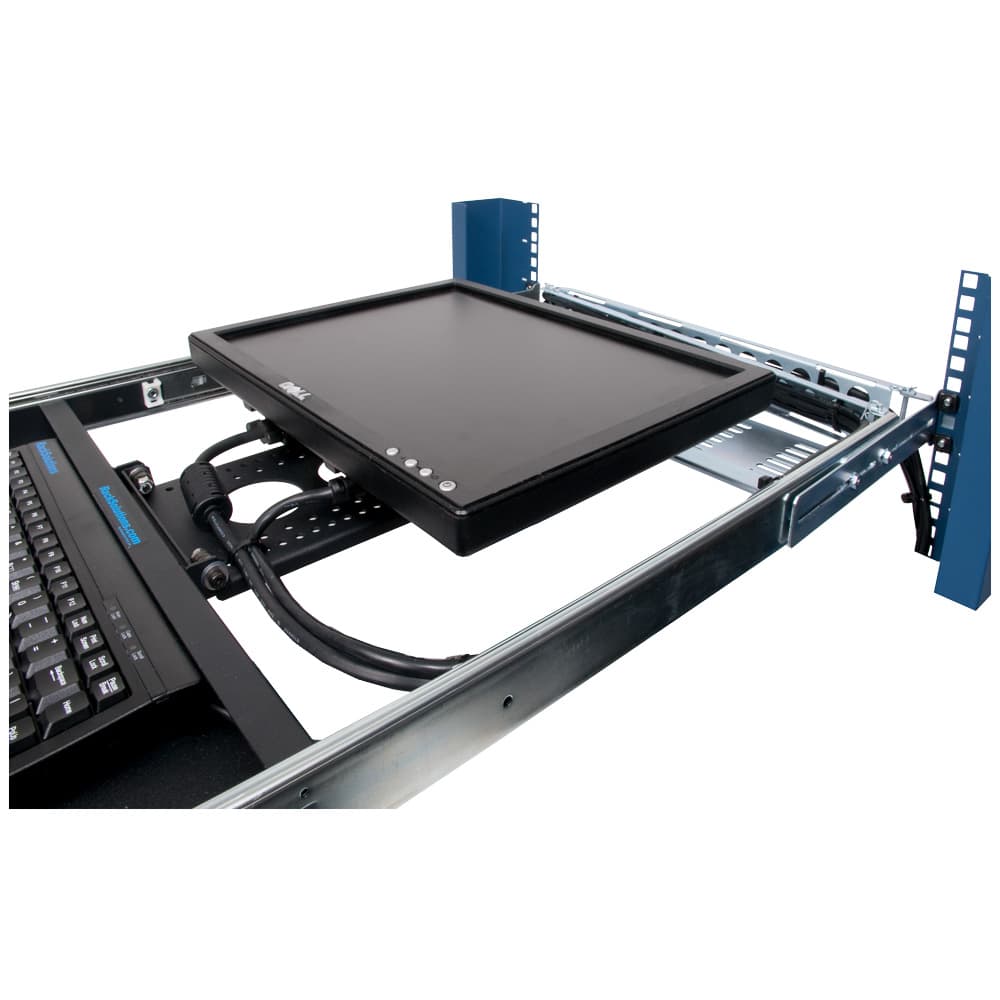

  • Rackmount KVM comes with integrated cable management arm
    Rackmount KVM comes with integrated cable management arm
    close
  • Rackmount extends 12.5 inches
    Rackmount extends 12.5 inches
    close

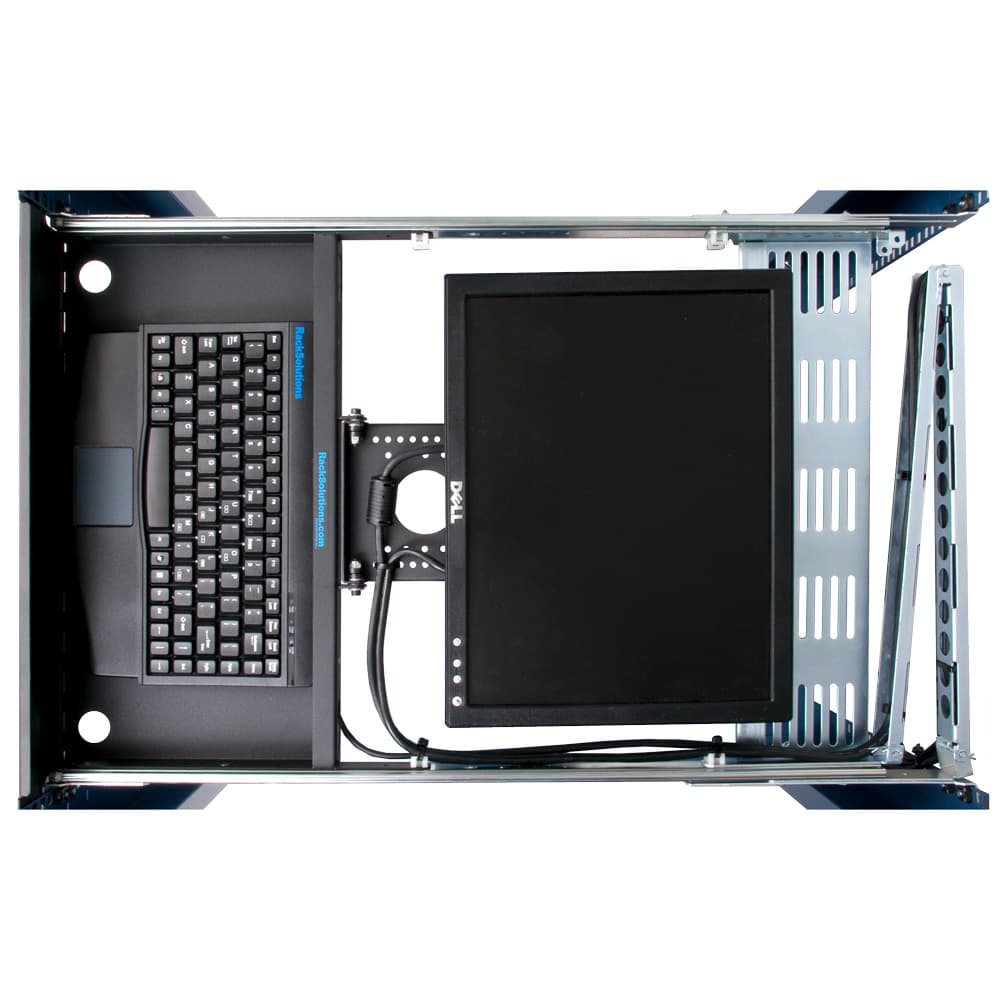

  • Rackmount KVM - folded in (top view)
    Rackmount KVM - folded in (top view)
    close
  • USB-PS2 Dongle included with purchase of 2UKVM-125USB OR 2UKVM-125-4-000
    USB-PS2 Dongle included with purchase of 2UKVM-125USB OR 2UKVM-125-4-000
    close
Made in America

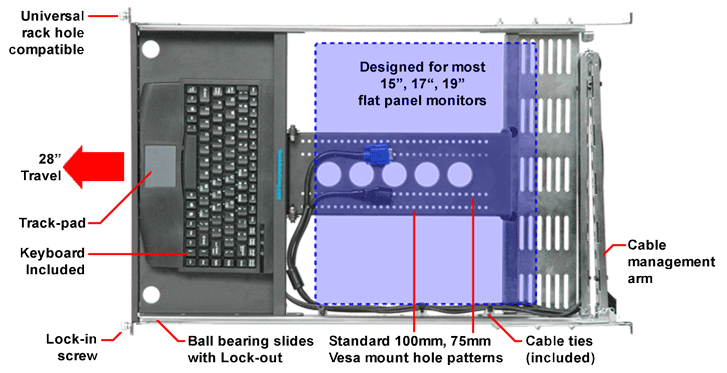

Monitor, keyboard, trackpad

  • Use your own 15 - 19" VESA monitor
  • 17 - 19" monitors available
  • Space saving trackpad
  • Keyboard plug is 54 1/2" long
  • Cable included prerouted
  • Cable management arm
  • Compatible with KVM switches, USB, PS/2
NOTE: Belkin or Raritan KVM Switches are not compatible with these products.

Install in any 4Post, 19" rack

  • Square, round, threaded holes
  • Mounting depth 15.5 - 31.5" (394 - 800 mm) 2UKVM-125
  • Mounting depth 13.5 - 29.5" (343 - 749 mm) 2UKVM-135

Alternate Versions

* Required Fields

From: $399.99

To: $650.98

Price as configured: $0.00

Price as configured: $0.00

Rack Solutions Promise
Description

Details


The RackSolutions Rackmount KVM lets users efficiently mount a keyboard and monitor in server racks with installation depths of 15.5" to 31.5" for the 2UKVM-125 and 13.5 - 29.5" (343 - 749 mm) for the 2UKVM-135.

The Rackmount KVM is designed to support monitors ranging from 15" to 19", making it a suitable platform for users to install their own flat panel computer monitors. For installation purposes, the monitor must also feature 75 mm or 100 mm holes. The product is available as a standalone rackmount or with a 17" or 19" monitor included.

The rail used to support the Rackmount KVM is a 28" travel server rack rail equipped with ball bearings for extra support and easy slide control.

The keyboard that comes with the device features a standard PS2 cable and a USB adapter. It also supports the full functionality of a standard rackmount keyboard and features a standard embedded number pad with numerical keys and 12 function keys. The keyboard's plug is 54 1/2 " long.

When you purchase the Rackmount KVM, USB Keyboard, without Monitor (2UKVM-125USB) OR the Rackmount KVM, Keyboard, without Monitor (2UKVM-125) the Rack Solutions USB Dongle for PS2 keyboard is included.

The Rackmount KVM is compatible with most KVM devices and will ship with the hardware necessary for installation. It comes fully-assembled with the keyboard and monitor cords already routed. The only assembly necessary is the monitor, which will not be assembled with the rest of the device when shipped.

  • RackSolutions KVM
    RackSolutions 2U KVM
    Our 4 Post KVMs come with a keyboard and we offer a monitor to purchase separately.

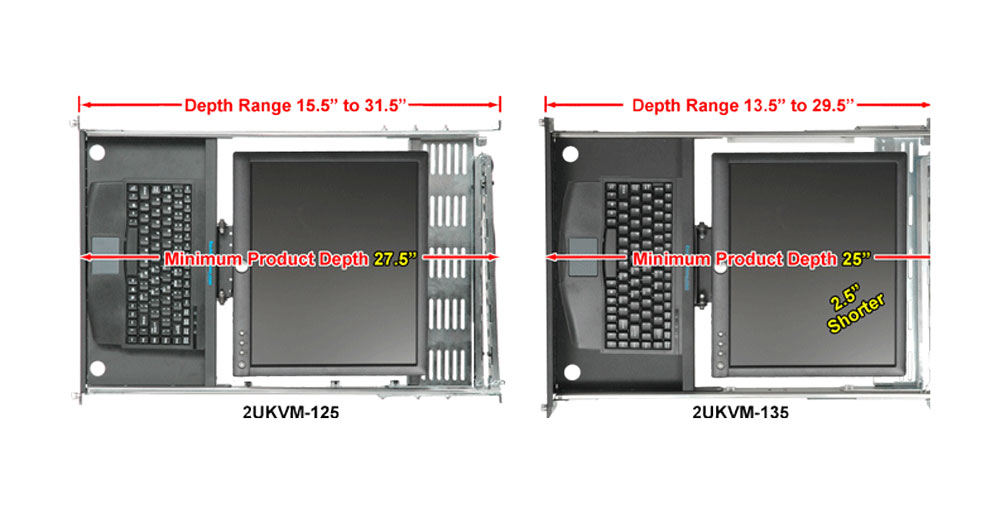

  • 2UKVM-135
    2UKVM-135 & 2UKVM-125 KVMs
    The 4 Post KVMs come in two different sizes of equipment depth. The 2UKVM-135 is the shallow version and the 2UKVM-135 allows for more room to mount a switch.
Additional Information

Additional Information

Mounting Depth Range 15.5" - 31.5" (394 - 800 mm) 2UKVM-125
13.5 - 29.5" (343 - 749 mm) 2UKVM-135
Rack Type 4 Post Rack
Overall Installation Depth 31" Minimum (787 mm) 2UKVM-125
26" minimum (660 mm) 2UKVM-135
Cable Management Articulated cable management arm
Hole Type Compatible with the industry standard 3/8" square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24, and Metric M6
Included Hardware 10-32 and 12-24 Screws
Cage nuts provided for square hole racks
Assembly Notes Fully assembled, except for optional monitor
Power, VGA, and keyboard cables are pre-routed
Rail Type 28" travel (394 mm)
Ball bearing slides
Fixed/Sliding Sliding
Monitor Specs 17” (432 mm) monitor specs
Monitor is Dell E170S (optional)
Height 15" x Width 14.8"
1280 x 1024 pixels @ 60Hz max resolution
TFT active matrix
250 cd/m² brightness
800:1 image contrast ratio
VGA signal input

19” (483 mm) monitor specs
Dell E190S (optional)
Height 16.2" x Width 16.3"
1280 x 1024 pixels @ 75Hz max resolution
TFT active matrix
300 cd/m² brightness
800:1 image contrast ratio
VGA signal input
Keyboard Specs PS/2 or USB
USB Interface requires the use of an adapter (included)
88/89 keys have the functionality of a 104/105 rack mount keyboard
Embedded numeric keypad and 12 dedicated function keys
VESA Mount 100 mm or 75 mm VESA hole patterns (required)
Most LCD display have 4 VESA mounting holes on the back
The VESA holes may be hidden by the display stand
Monitor Thickness LCD display thickness: 2.75" (70 mm) maximum
Exceeding this thickness will require more than 2U of rackmount space
Monitor Width LCD display width: 17.5" (444 mm) maximum
15", 17" or 19" (381 mm, 432 mm or 483 mm) LCD display will typically fit
RoHS Compliant Yes
