4U, Flush Mount, Conversion Kit for 2Post Racks

Availability: In stock

4UKIT-003
4U, Flush Mount, Conversion Kit for 2Post Racks
  • Front view - 4U Flushmount Conversion Kit
    Front view - 4U Flushmount Conversion Kit
    close
  • Rear view with server - 4U Flushmount Conversion Kit
    Rear view with server - 4U Flushmount Conversion Kit
    close
  • Side view with server - 4U Flushmount Conversion Kit
    Side view with server - 4U Flushmount Conversion Kit
    close
  • Front view with server - 4U Flushmount Conversion Kit
    Front view with server - 4U Flushmount Conversion Kit
    close
  • Front view with server - 4U Flushmount Conversion Kit
    Front view with server - 4U Flushmount Conversion Kit
    close
  • Rear view with server - 4U Flushmount Conversion Kit
    Rear view with server - 4U Flushmount Conversion Kit
    close
  • Front view with server - 4U Flushmount Conversion Kit
    Front view with server - 4U Flushmount Conversion Kit
    close
  • Side view with server - 4U Flushmount Conversion Kit
    Side view with server - 4U Flushmount Conversion Kit
    close
Made in America

Flush mount a server in a 2Post rack

  • Mounts 1U - 4U servers
  • Provides 4U of rack mount space
  • Alternative to a center mount kit
  • 2 Post server rack must be supported

Fits any 19", 2Post racks

  • Universal square holes
  • Compatible with most slide rails
  • Dell, HP, IBM compatible

Alternate Products

NOTE: The server chassis + rail kit can not exceed 17.72" to be compatible.
Rack Solutions Promise
Product Name SKU Price Qty
4U, Flush Mount, Conversion Kit for 2Post Racks 4UKIT-003
$199.99
Description

Details

The flush mount conversion kit from RackSolutions allows servers using 4Post rails to be mounted in 2Post, Telco racks. When front space is limited, this kit provides an alternative to the common center mount kits. The flush mount kit provides 4-point corner attachments to allow most OEM rails to be used. The flush mount kit provides 4U of 4Post rack mount space in a 2Post rack.

  • 4UKIT-003 Installation
    4UKIT-003 Installation
    Easy installation of the 4UKIT-003, allows 4U of space to flush mount in a 2 post rack.

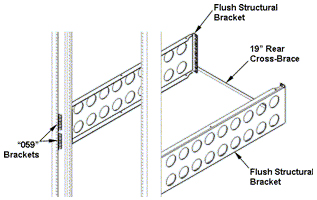

  • Conversion brackets couple together
    Flush mount conversion kit features
    The flush mount conversion kit has a bracket for mounting into the front of the rack uprights. Next, is the rear cross brace to strengthen the kit while mounting equipment flush.All mounting hardware is included.
Additional Information

Additional Information

Finish Black, textured, powder coat
Rack Units 4U
Included Hardware (2) Large, support brackets
(2) Small, support brackets
12-24 cage nuts, bolts and pan head screws
Assembly Notes Philips head screwdriver required
Flat head screwdriver or 3/8" nut driver required
RoHS Compliant Yes
Hole Type Mounts to a round hole, 2Post server rack
Provides EIA standard 3/8" square holes
Bracket Dimensions 7" x 26.788" (178 mm x 660 mm)
