7U Monitor Rackmount with Monitor
Easily mount flat panel monitor for video output
- Dell E2026H flat panel monitor included
- 1600 x 900 at 100Hz (HDMI)
- 1600 x 900 at 60Hz (VGA)
- Simply install monitor to rear VESA bracket
- Internal power supply
- Standard KVM switches supported
Compatible with EIA 19” standard racks
- Install in 4-Post and 2-Post racks
- Fits square, round, and threaded hole racks
- Faceplate prevents bypass airflow
- Monitor protrudes past the uprights by 1.09"

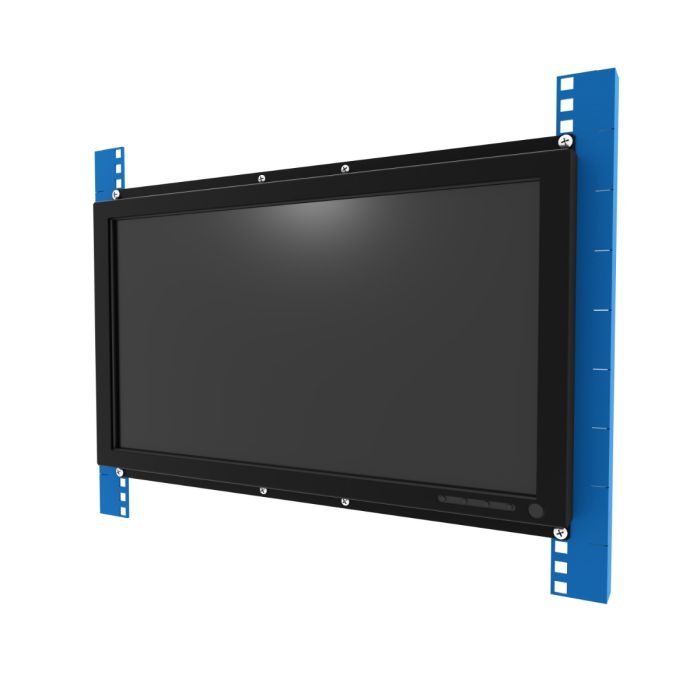

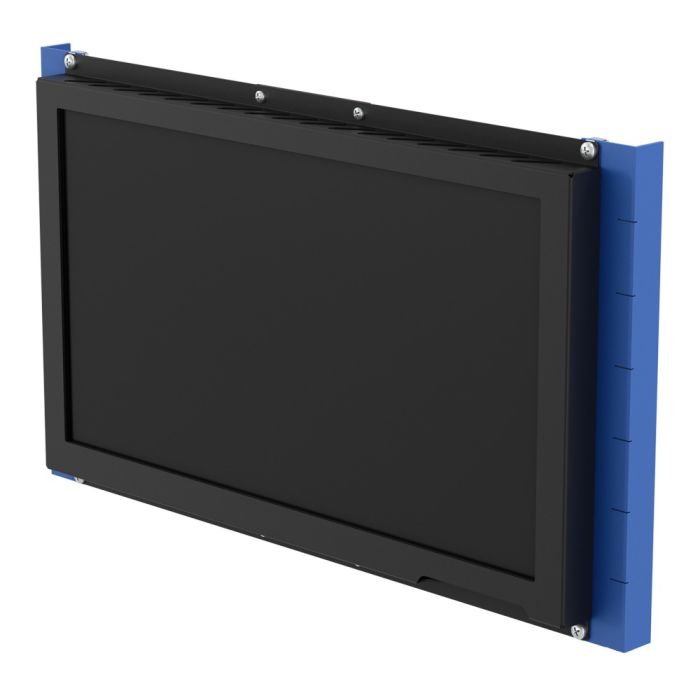

Designed to mount the Dell Pro 20” Monitor - E2026H , the RackSolutions 7U rackmount monitor kit is compatible with any standard EIA 19” server rack. Our rackmount monitor kit features a professional and seamless look that is engineered to keep your monitor safely mounted on a 4-post or 2-post rack. The 3-piece kit includes a monitor, rear bracket, and faceplate. The faceplate prevents any bypass airflow by covering all sides of the monitor. You can also pair our rackmount keyboard with the monitor for a complete console solution.
For more information on VESA Mounting Standards and what VESA stands for, visit VESA Mounting Standards Explained.

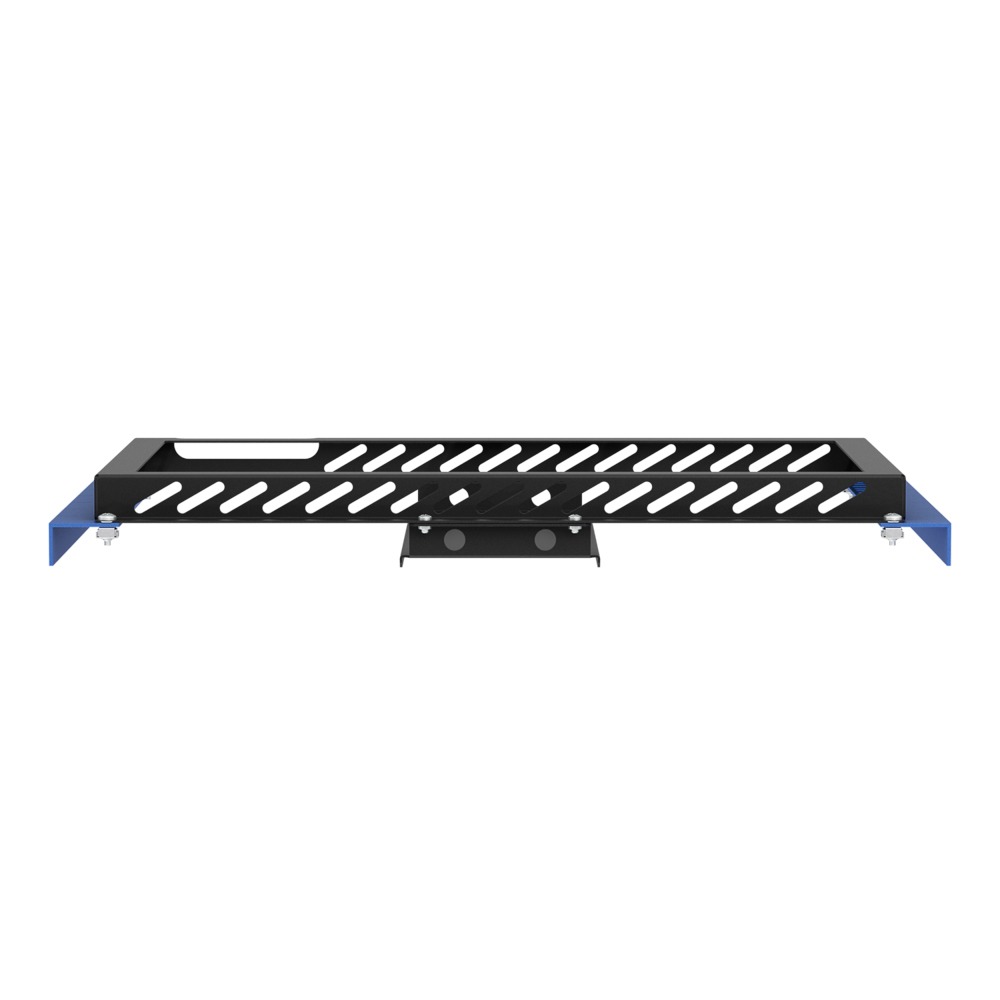

Efficient Airflow Management
Similar to a filler panel, the rackmount kit helps fill unused rack space around the monitor to prevent bypass airflow and improve cooling performance.

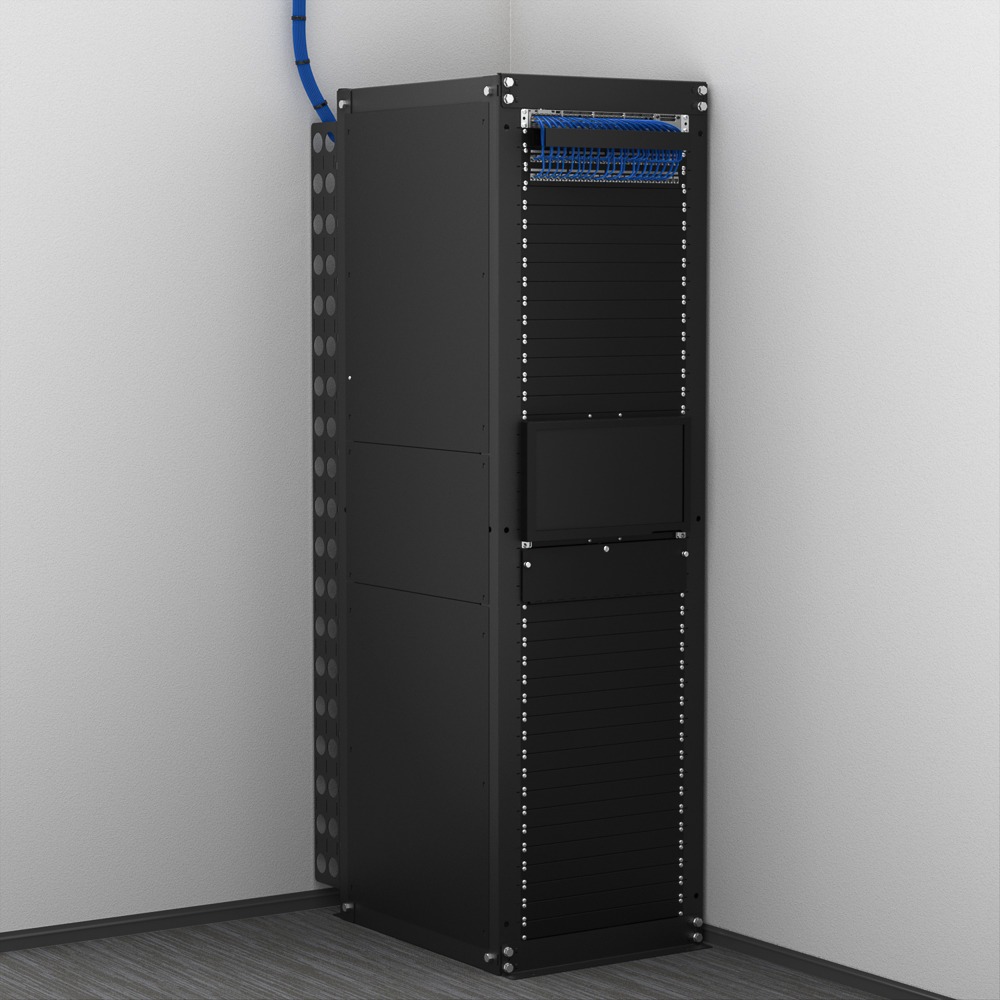

Compatible with 4-Post and 2-Post Racks
Compatible with any standard EIA 19” server rack, the 7U rackmount monitor kit can be installed in both 4-post and 2-post rack configurations.

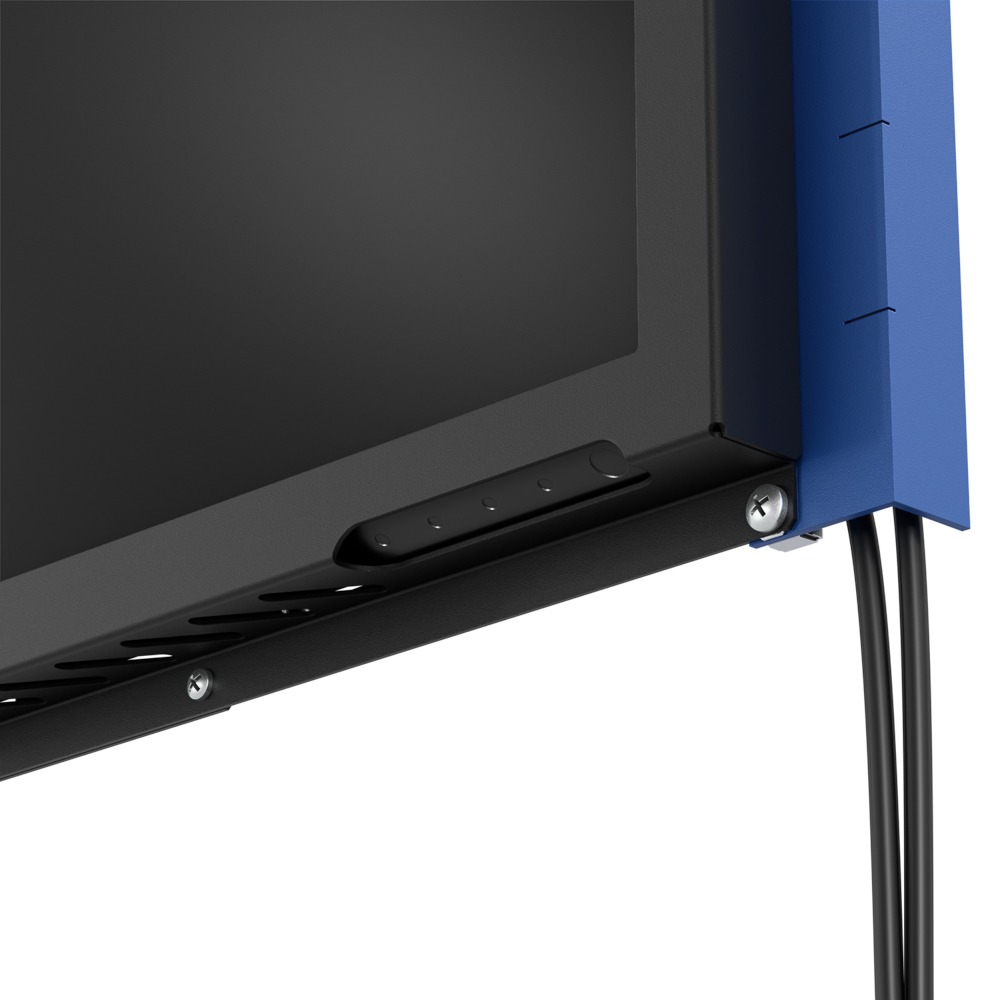

Easy Access to Monitor Buttons
Mount your monitor directly within the server rack while keeping the monitor buttons fully accessible and unobstructed.
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | No | UL Compliant | No | ETL Compliant | No | Weight (lbs) | 13.800000 | Country of Manufacture | United States | U Height | 4U - 9U | Rack Type | 2 Post , 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole |
|---|
Kit Contents:
- (1) Dell E2020H Monitor
- (1) Mounting Bracket
- (1) 7U Face Plate
Assembly Hardware:
- (4) M4 x .7 x 25mm Pan Head Screw
- (4) .194 x .5 x .5 Spacer
- (4) 8-32 x .312 Pan Head Screw
Mounting Hardware:
- (5) 10-32 x .5 Pilot Point Pan Head Screw
- (5) 12-24 x .5 Pilot Point Pan Head Screw
- (5) 12-24 Square Nut
- (5) 12-24 Cage Nut
