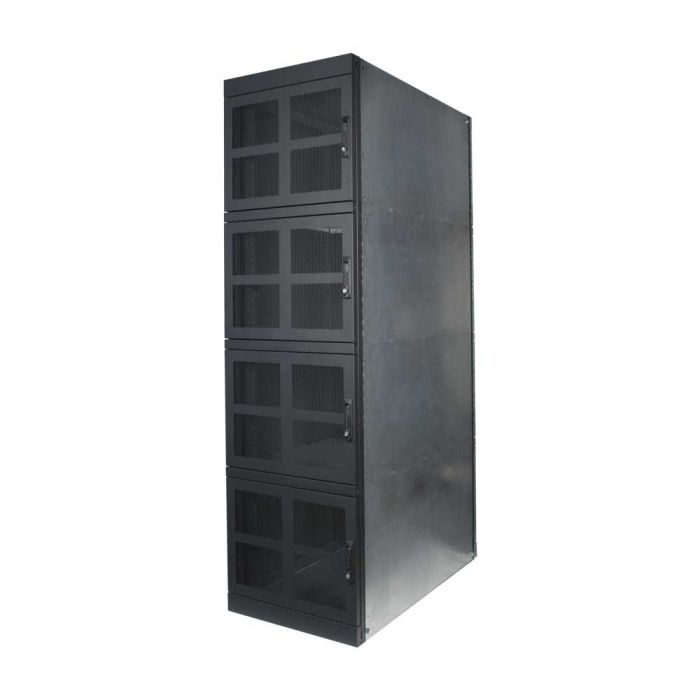

Front view - Colocation Cabinet, 44U

 Front view - Colocation Cabinet, 44U

Hover to View, Click to Zoom

  • Side panels removed, front view - Colocation Cabinet, 44U
  • Doors open, side panels removed, front view - Colocation Cabinet, 44U
  • Straight on view - Colocation Cabinet, 44U
  • Interior view shows mounting post and cable channel holes
  • Divider between compartments - Colocation Cabinet, 44U
  • Cable access ports on top of Colocation Cabinet, 44U
  • Front post, interior view - Colocation Cabinet, 44U
  • Combination & key lock on front and rear doors - Colocation Cabinet, 44U
  • Front View- 2 Compartment configuration
  • Doors open, side panels removed, front view - 2 Compartment configuration

Colocation Cabinet

Each compartment includes:

  • 4 compartment configuration - 11U of usable space per compartment
  • 2 compartment configuration - 23U of usable space per compartment
  • 29” mounting depth
  • 48" physical depth will easily accommodate modern equipment

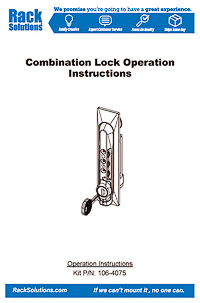

  • 3 dial combination lock and key
  • Secure, isolated cable channel
  • Clearly marked rack units

Features & benefits

  • 4 compartment configuration 44U - total rack space
  • 2 compartment configuration 46U - total rack space
  • Reversible doors
  • Large 3”x 3” cable access ports on top and bottom of the cabinet
  • Compatible with overhead cabling and raised floor cabling systems
  • Robust steel frame
  • Tenants cannot remove compartment dividers
  • Ships fully assembled, freight only on an over-sized pallet. Loading dock or lift gate required for delivery.

Side panels are required for security

  • Black, powder coated option for racks at each end of a row
  • Side panels have to be purchased separately. The rack does not come with side panels.

Be the first to review this product

Product Name P/N: Availability Price Qty
Colocation Cabinet (2 compartments) 141-2602
Built to Order: 1-888-903-RACK
Colocation Cabinet (4 compartments) 141-4073
Built to Order: 1-888-903-RACK
Side Panels for Rack - Black, Powder Coated (1 side only) 102-2478
Built to Order: 1-888-903-RACK
Please call for shipping and order: 1-888-903-7225

Colocation Cabinet Overview

The Colocation Cabinet provides a secure, self-contained means for 2-4 tenants to share a single cabinet. This cabinet efficiently utilizes the floor space in the datacenter by minimizing the amount of unused space in the cabinets. The quality of manufacturing in this cabinet will instill confidence in the tenant that their physical infrastructure is protected from unauthorized access. RackSolutions, designer and manufacturer of the industry’s most innovative IT infrastructure products, has developed a unique Colocation Cabinet containing features that are unmatched in the industry. The most distinctive feature of this cabinet is the secure cable channels (located in the back) within each compartment. The secure channels are compatible with overhead and under floor structured cabling products.

Side Panels

Side Panels for the Colocation rack are required. Choose from the black, powder coated style (P/N: 102-2478), best suited for the end cap of a rack row.The Side Panels come 4 panels to a side. When ordering your Colocation Cabinet, select 2 side panels for your rack. If ordering multiple racks, only 1 side panel is required between racks. Example: 2 racks bayed together require 3 side panels.

Colocation Cabinet - Technical Specifications

Finish Durable, powder coat finish on front exterior
Durable, zinc plating on interior and rear exterior
Assembly Notes Ships fully assembled
Tech Notes
  • Static load capacity - 3000 lbs
  • Dimensions: 89”H x 26”W x 48”D
  • EIA 19” Rack
  • Square hole mounting posts
  • Multiple cage nut sizes fit in square holes
  • Reversible doors
  • Side panels are required
  • Built to order: Call for lead time
