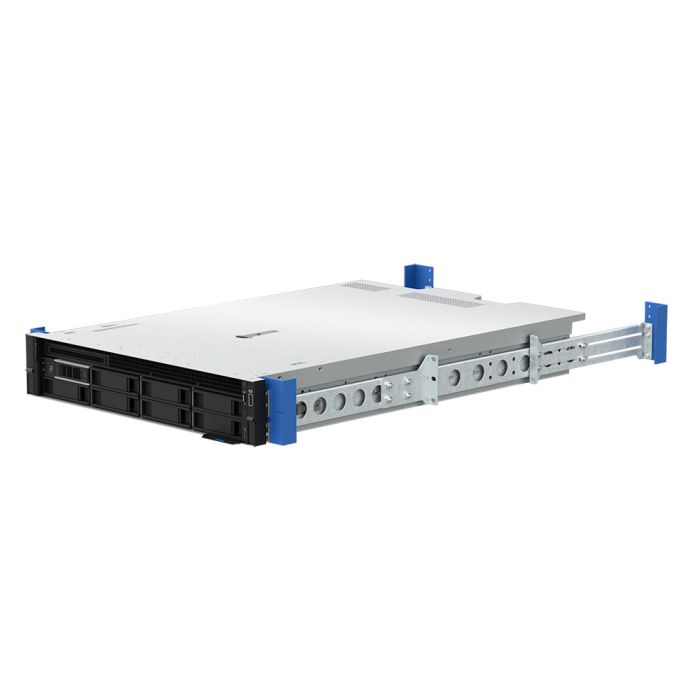

2U Cobra 175-A Rail for Dell
Sliding Alternative to Dell ReadyRails
- Compatible with 2U Dell PowerEdge Servers Generation 15-17
- Sliding rack rails provides easy serviceability
- High-quality dry slide rack rails
- Original Dell rail kit not required
Installs in 2-Post and 4-Post Racks
- 4-Post: Mounting depth of 12” - 32” (304.8 - 812.8 mm)
- 2-Post: Center mounting depth of 3” - 6” (76.2 - 152.4 mm) uprights
- Flush mount installation requires the Conversion Bracket 4-Pack (opens in a new tab)
- Compatible with square, round, and threaded holes
- Supports L, C, and ? rack upright shapes
Compatible Dell PowerEdge Servers
- Dell PowerEdge Gen 17: R570, R770, R7715, R7725, R7725xd (2.5" U.2)
- Dell PowerEdge Gen 16: R760, R760xs, R7615, R7625
- Dell PowerEdge Gen 15: R550 Rack Server, R750xs
RackSolutions 2U Cobra 175-A Rail for Dell PowerEdge servers is an alternative to Dell OEM rail kits. The sliding rack kit is compatible with most 2U Dell PowerEdge rack servers from the 15th-17th generations. Our sliding rack rails are compatible with Dell PowerEdge R760, R760xs, R7615, R7625, R550 Rack Server, and R750xs servers. A flush mount kit (opens in a new tab) is required for flush mount rail installation. The conversion brackets must match the corresponding rail’s U height (e.g., 1U rail = 1U Conversion Bracket). Learn more about the Cobra rack rails here.
Dell Slam Latch Retaining Plate
Mounts in 2 Post and 4 Post Racks
Unlike the Dell OEM Rail Kit, our sliding rack rail kit mounts in 2-Post and 4-Post racks that meet 19” EIA-310 standards. Designed to last longer than ball-bearing rail kits, the dry slides allow you to easily extend equipment in and out of your server rack. For 4-Post Racks, the rack rails feature an adjustable mounting depth between 12” - 32” (304.8 - 812.8 mm).
Rack Hole Type
The sliding rack rails occupy 2U of rack space and are compatible with threaded, round, and universal square holes.
| Made In America | Yes | BABA Compliant | Yes | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Weight (lbs) | 5.034000 | Country of Manufacture | United States | OEM Compatibility | Dell | Replacement Dell OEM Rail | B20, B21, B22 | Generation | 15G, 16G, 17G | Product Line | PowerEdge | Form Factor | Server | U Height | 2U | Rack Type | 2 Post , 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Fixed/Sliding | Sliding | Weight Capacity | 30 - 100 lbs | Finish | Zinc plated |
|---|
Kit Contents:
- (2) Outer Rail (Left & Right)
- (2) Inner Rail (Left & Right)
- (2) Rear Bracket (Left & Right)
Rear Bracket Hardware:
- (8) 8-32 x .312 Flat Head Screw
- (8) 8-32 Keps Nut
Mounting Hardware:
- (12) 8-32 x .500 Pan Head Screw
- (2) Retainer Plate (Left & Right)
- (2) Mounting Plate
Rear Mount 8x:
- (8) 10-32 x .500 Pan Head Screw
- (8) 12-24 x .500 Pan Head Screw
- (8) 12-24 x Square Nut
- (8) 12-24 x Cage Nut
Rear Mount 4x:
- (4) 10-32 x .500 Pan Head Screw
- (4) 12-24 x .500 Pan Head Screw
- (4) 12-24 x Square Nut
- (4) 12-24 x Cage Nut
- PowerEdge R550
- PowerEdge R570
- PowerEdge R750xs
- PowerEdge R760
- PowerEdge R760xs
- PowerEdge R7615
- PowerEdge R7625
- PowerEdge R770
- PowerEdge R7715
- PowerEdge R7725
- PowerEdge R7725xd (2.5" U.2)
