120-B Wall Mounts for Dell OptiPlex SFF

RoHS Compliant (default) RoHS Compliant (hover)
TAA Compliant (default) TAA Compliant (hover)
As low as $114.99
In stock

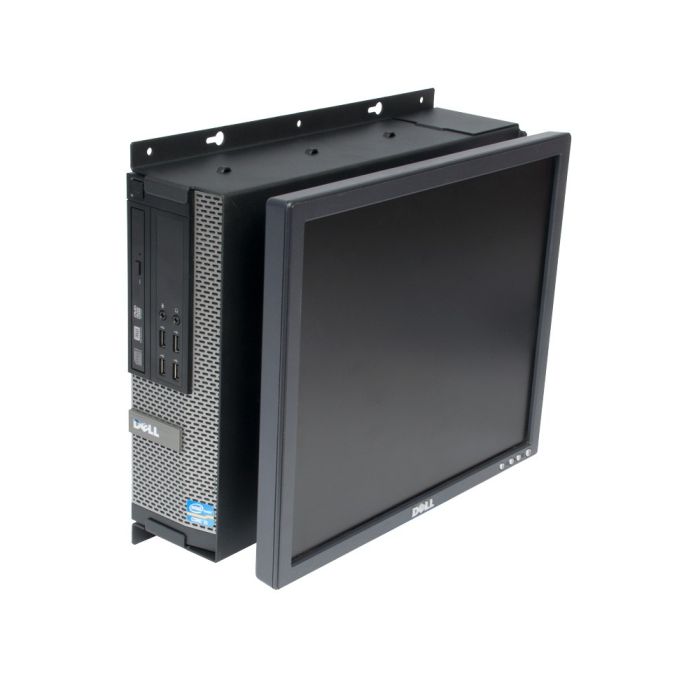

Wall Mount for Dell OptiPlex SFF PC Models

  • Only Compatible with SFF PCs - Full Compatibility Below
  • Creates a compact, wall mounted, all-in-one solution
  • 75 mm and 100 mm VESA hole pattern
  • Wall mount bracket can hold up to 50 lbs
  • Includes all mounting hardware
  • PC & Monitor not included

Customize to your needs

  • Compatible with most monitors
  • Tilt option available to position the monitor as needed
  • Combined with a keyboard wall mount provides a full wall mounted system

NOTE: See "Additional Information" below for compatibility.

Dell Compatible Products

  • Optiplex 3010 Small Form Factor (SFF)

  • Optiplex 3020 Small Form Factor (SFF)

  • Optiplex 7010 Small Form Factor (SFF)
  • Optiplex 7020 Small Form Factor (SFF)
  • Optiplex 7040 Small Form Factor (SFF)
  • Optiplex 9010 Small Form Factor (SFF)
  • Optiplex 9020 Small Form Factor (SFF)
  • Optiplex 740 Small Form Factor (SFF)

  • Optiplex 745 Small Form Factor (SFF)

  • Optiplex 790 Small Form Factor (SFF)
  • Optiplex 960 Small Form Factor (SFF)
  • Optiplex 980 Small Form Factor (SFF)
  • Optiplex 990 Small Form Factor (SFF)
  • OptiPlex XE2 Small Form Factor (SFF)

RackSolutions' Dell Optiplex 790 SFF Wall Mount allows you to mount Dell OptiPlex 790 SFF PCs, as well as other OptiPlex SFF models including the 9010 to the wall. The wall mount creates a compact all-in-one system by mounting both the PC and the monitor together on the wall. The mount also allows you to mount the PC horizontally under a table or desk if desired at the expense of the monitor mount. There are two options when choosing a Dell Optiplex 790 SFF Wall Mount, a version that allows your monitor to tilt and one that stays fixed. The wall mount is compatible with almost any flat panel display using 75 mm and 100 mm VESA hole patterns. All required mounting hardware is included with the Dell Optiplex 790 SFF Wall Mount.

VESA StandardHole PatternMonitor WeightScreen Size
FDMI MIS-C75 x 35 mm≤ 10 lbs / ≤ 4.5 kg8" to 11.9"
FDMI MIS-D75 x 75 or 100 x 100 mm≤ 30.8 lbs / ≤ 14 kg12" to 23.9"
FDMI MIS-E200 x 100 mm≤ 50 lbs / ≤ 23.7 kg24" to 30.9"
VESA Specifications Guides (desktop image)VESA Specifications Guides (mobile image)

For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained. (opens in a new tab)

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware "104-2323
  • Assembly Components:
    • (1) Main Bracket
    • (1) Cover
  • Monitor Hardware Package:
    • (8) Nylon Spacers
    • (5) M4 x 10mm Flat Head Screws
    • (5) M4 x 12mm Flat Head Screws
    • (5) M4 x 20mm Flat Head Screws
  • Wall Mount Hardware Package:
    • (4) Pan Head Screw
    • (4) Anchors

  • Assembly Components:
    • (1) Main Bracket
    • (1) Cover
    • (1) Pivot Assembly
  • Monitor Hardware Package:
    • (8) Nylon Spacers
    • (5) M4 x 10mm Pan Head Screws
    • (5) M4 x 18mm Pan Head Screws
    • (5) M4 x 25mm Pan Head Screws
    • (5) 8-32 Flat Head Screws
  • Wall Mount Hardware Package:
    • (4) Pan Head Screw
    • (4) Anchors
Dell Part Number 104-2323 (Fixed) - A7248086
104-2324 (Tilt) - A5777178
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 104-2323 - 4614619
104-2324 - 4614620
Ingram Part Number 104-2323 - LC0946
104-2324 - LC0947
Compatibility Dell

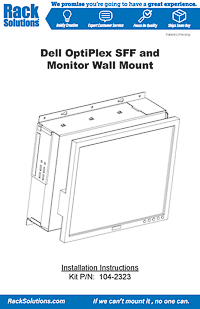

Assembly Notes Phillips head screwdriver required
Dimensions Fixed Monitor Outside Dimensions P/N: 104-2323
H x W x D = 13.26" (336 mm) x 15.41" (391 mm) x 4.06" (103 mm)

Tilt Monitor Outside Dimensions P/N: 104-2324
H x W x D = 13.26" (336 mm) x 15.41" (391 mm) x 5.09" (129 mm)
Rack Type Wall Mount
Finish Black, textured powder finish
