1U Sliding Shelf Rail Kit for Dell Precision T3600, T5600
Fits any 4 Post rack
- Compatible with Dell Precision tower PCs
- Fits square, round, threaded holes
- Mounting depth: 10 - 31.75" (254 - 806 mm)
- Includes cabling crossbar (installation is optional)
Rackmounts Dell T3600 and T5600
- Computer chassis is secured to the shelf
- Uses 4U space once chassis has been mounted
- The shelf is a dry slide type
- Rails are static. Shelf slides on top of rail flanges
- Thumbscrews allow the shelf to be secured to the front of the rack
Compatible with these servers:
- Dell Precision T3600
- Dell Precision T3610
- Dell Precision T5810
- Dell Precision T5600
- Dell Precision T5610
- Dell Precision T7810

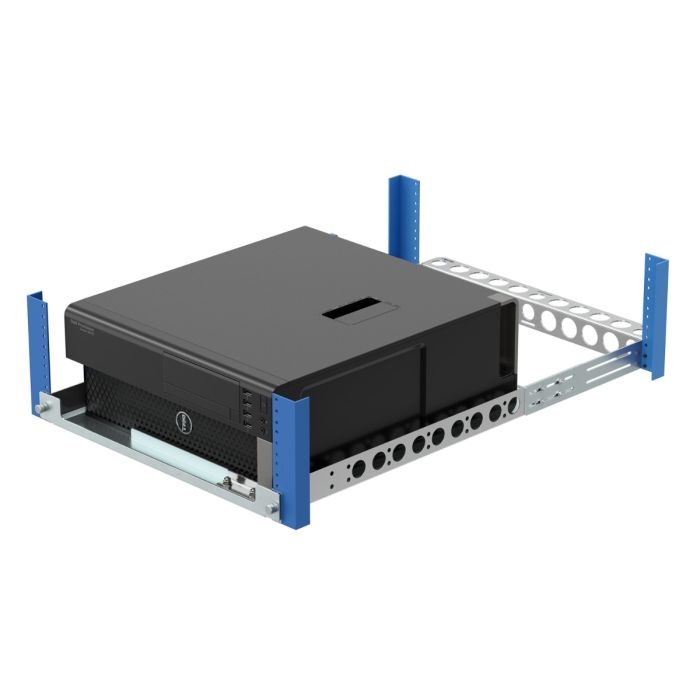

The Sliding Shelf/Rails for the Dell T3600 and T5600 mounts in any EIA-310, 19" rack with square, round or threaded holes. The T3600 or T5600 is secured to the shelf with a front and rear bracket allowing the shelf to dry slide on top of the metal flanges found on both sides of the universal, fixed mounting rails. The shelf slides completely out of the rack. The Sliding Shelf for the Dell T3600 and T5600 has a mounting depth range of 10 - 31.75" (254 - 806 mm). It includes a cabling crossbar that is optional for installation. Thumbscrews allow shelf for the T3600 and T5600 to be secured to the front of the rack. Cage nuts are required for square hole racks. This shelf is compatible with the Dell T3600, T3610, T5810, T5600, T5610 and Dell T7810.
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Weight (lbs) | 12.802000 | Country of Manufacture | United States | OEM Compatibility | Dell | Product Line | Precision | Form Factor | Tower | U Height | 1U | Rack Type | 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Fixed/Sliding | Sliding | Weight Capacity | 30 - 100 lbs | Finish | Zinc plated | Dell Part Number | 112-2167 - A6782673 | Synnex Part Number | 112-2167 - 5122785 | Ingram Part Number | 112-2167 - QZ9599 |
|---|
Components:
- (1) Shelf
- (1) Rear Bracket
- (1) Front Bracket
Assembly Hardware Kit:
- (5) 10-32 Nuts
- (5) #10 Flat Washer
- Precision T3600
- Precision T3610
- Precision T5600
- Precision T5610
- Precision T5810
- Precision T7810
