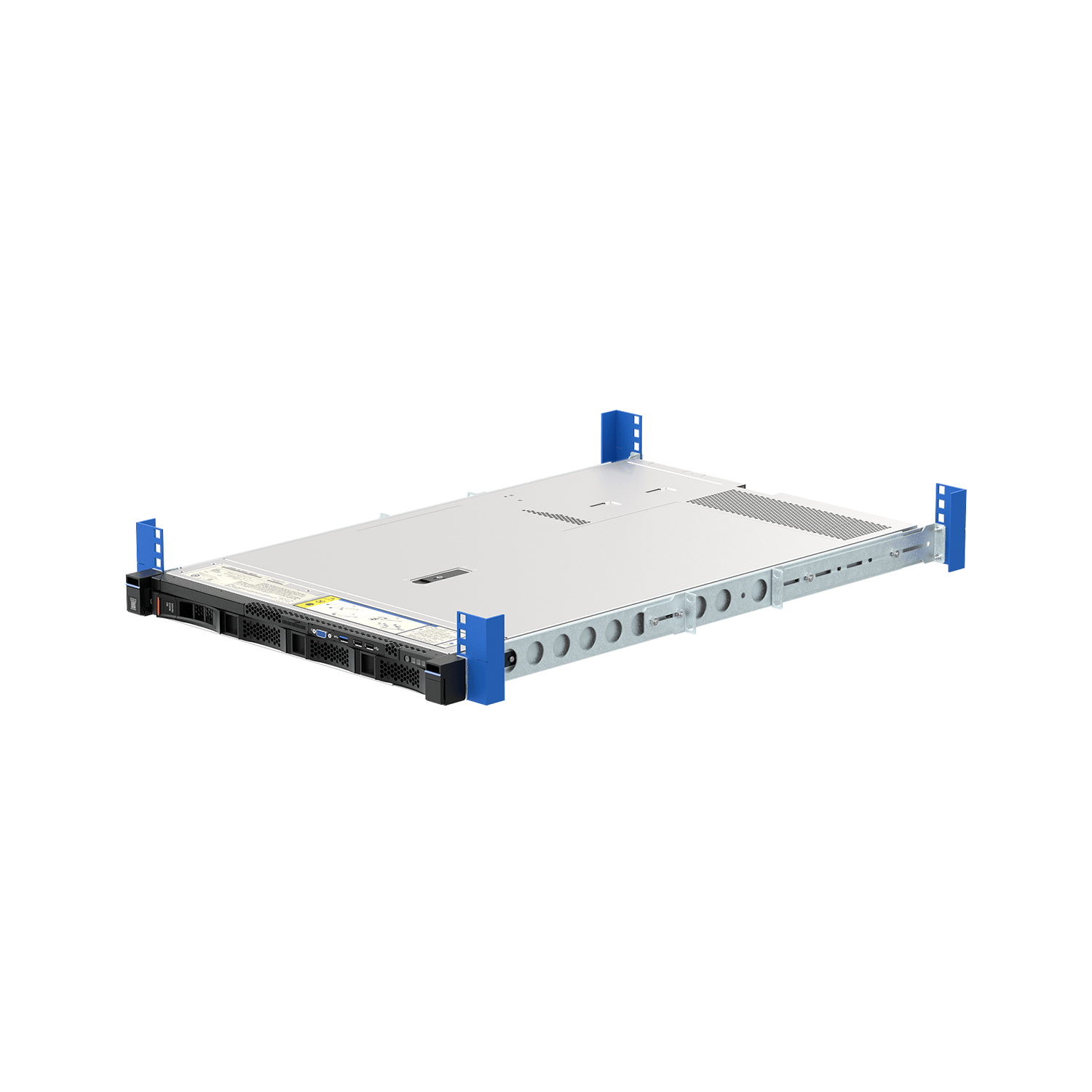

1U 120-A Dry Slide Rail for Lenovo

main product photo
RoHS Compliant (default) RoHS Compliant (hover)
TAA Compliant (default) TAA Compliant (hover)
Proudly US Made (default) Proudly US Made (hover)
Rating:
100 % of 100
1  Review Add Your Review
$99.99
In stock
SKU
122-4818
Sign In for free shipping on products marked with Shipping details icon(see details)
Look for products eligible for free shipping marked with Free Shipping(see details)
Resources
Compatibility

Fits any 4Post rack

  • Square, round, threaded holes.
  • Mounting depth of 3 - 30" (76.2 - 762 mm).
  • Lenovo/IBM rail kit not required.
  • Supports L, C, and ? (opens in a new tab) rack upright shapes

Alternative to Lenovo/IBM rail kit

  • High quality, dry slide rail kit

Fits any 2Post rack

  • Center mounts in 2Post rack
  • Works with 3" - 6" uprights

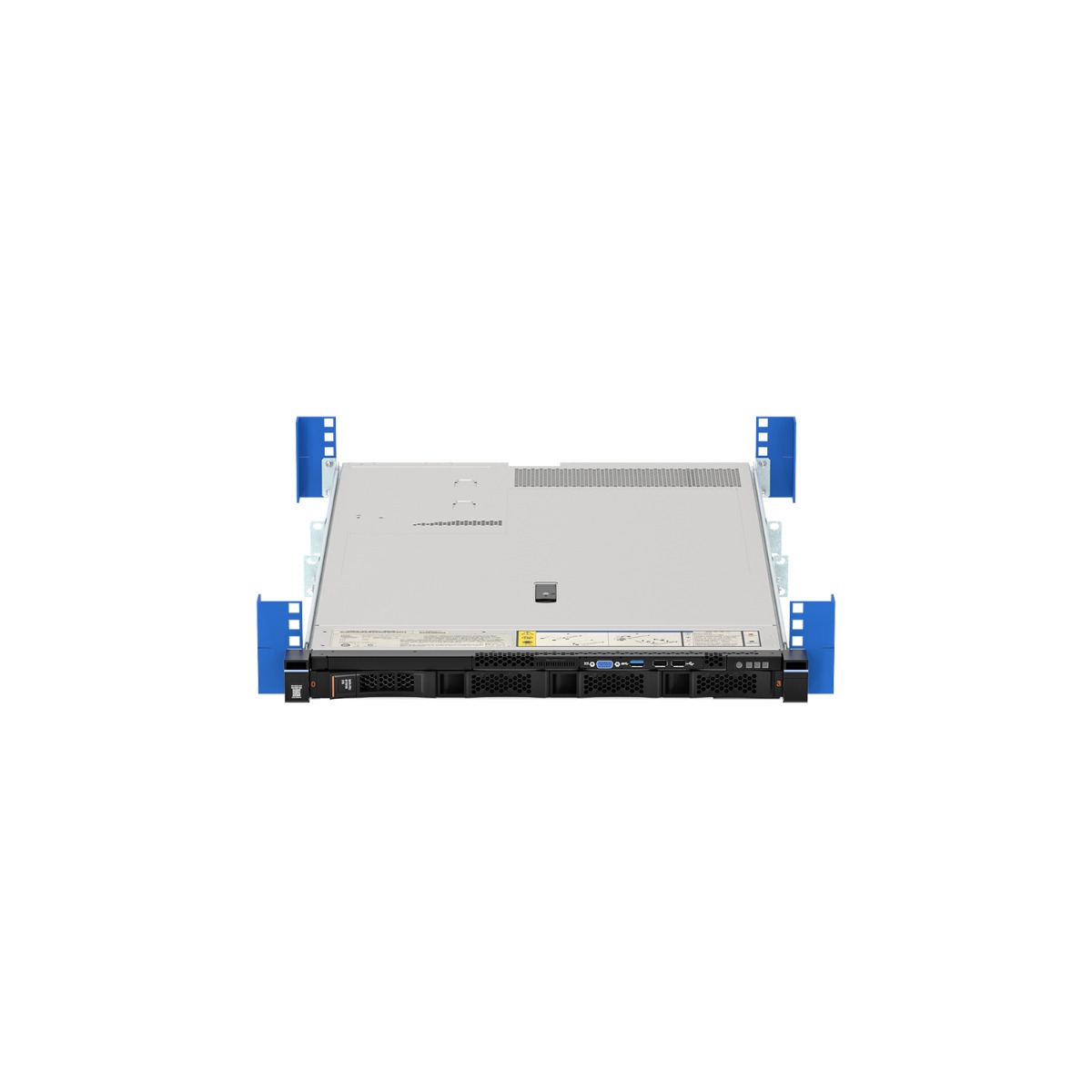

Compatibility

  • Lenovo X3250 M5
  • Lenovo X3550 M5
  • Lenovo X3650 M5
  • IBM x3250 M5
  • IBM x3550 M5
  • IBM x3650 M5
  • Lenovo Converged HX 1000 Series
  • Lenovo Converged HX 2000 Series
  • Lenovo Converged HX 3000 Series
  • Lenovo Converged HX 5000 Series
  • Lenovo Converged HX 7000 Series

Replacement for Lenovo/IBM OEM Rail Kit

The Lenovo/IBM System x3250 M5, x3550 M5 and x3650 M5 Slide Rails can provide a stable, sturdy and easy-to-install sliding rail solution almost any server racks. Lenovo/IBM System M5 Slide Rails are compatible with standard 19" EIA-310 server racks, and can work with either 2 post or 4 post models. The device is designed to fit in racks using either standard square, round or threaded holes, and feature an adjustable mounting depth between 3” - 30" (76.2 - 762 mm). This rail kit is not a ball-bearing rail kit.

Additional Information
More Information
Made In America Yes
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Weight (lbs) 4.130000
Country of Manufacture United States
OEM Compatibility Lenovo
Generation HX1000, HX2000, HX3000, HX5000, HX7000, M5
Product Line System x, ThinkAgile HX
Form Factor Server
U Height 1U
Rack Type 2 Post , 4 Post
Rack Hole Type 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole
Fixed/Sliding Sliding
Weight Capacity 30 - 100 lbs
Synnex Part Number 122-4818 - 4648626
Ingram Part Number 122-4818 - 6GZ969
Resources

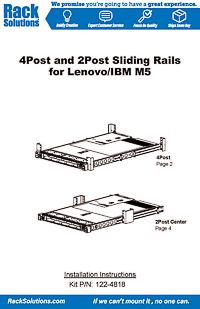

PDF Installation Instructions preview for 1U 120-A Dry Slide Rail for Lenovo (122-4818)

Installation Instructions

1U 120-A Dry Slide Rail for Lenovo (122-4818)

Open PDF
PDF Dimensional Drawings preview for 1U 120-A Dry Slide Rail for Lenovo (122-4818)

Dimensional Drawings

1U 120-A Dry Slide Rail for Lenovo (122-4818)

Open PDF
Kit Contents

Kit Contents:

  • (2) Outer Rail (Left & Right)
  • (2) Inner Rail (Left & Right)
  • (2) Rear Bracket

Rear Bracket Hardware:

  • (4) 8-32 x .312 Flat Head Screws
  • (4) 8-32 Keps Nut

Mounting Hardware:

  • (8) 8-32 x .500 Pan Head Screw
  • (2) Retainer Plate
  • (2) Latch Plate (Left & Right)
  • (2) Mounting Plate

Rear Mount 8x:

  • (8) 10-32 x .500 Pan Head Screw
  • (8) 12-24 x .500 Pan Head Screw
  • (8) 12-24 x Square Nut
  • (8) 12-24 x Cage Nut
Compatibility
  • Converged HX 1000 Series
  • Converged HX 2000 Series
  • Converged HX 3000 Series
  • Converged HX 5000 Series
  • Converged HX 7000 Series
  • X3250 M5
  • X3550 M5
  • X3650 M2
