Lockable Rackmount Drawers - 14"
Organize your networking equipment
- Why put drawers in a server rack?
- 2U, 3U, and 4U sizes
- Store networking tools, patch cables, and manuals
- Lock and keys keep equipment secure
Lockable drawer for server racks
- High quality ball bearing slides
- Installs in 2 post and 4 post racks
- 100 lbs (45 kgs) max capacity
- Cable access holes in rear
RackSolutions Lockable Rackmount Drawers provide a secure enclosure to store equipment that you need on-hand for data centers, such as networking tools, hardware, cable management supplies, manuals, laptop, patch cables, and more. The 14” drawer is perfect for punch down tools, cable testers, USB drives, and cable crimpers.
This rack-mountable drawer is available in sizes from 2U-4U and features an integrated lock to keep all of your equipment safely stored. The drawer extends up to 9.54” from the rack on high-quality ball bearing slide rails. Rear access holes allow cables to be routed to any equipment that is stored in the lockable drawer.
Other storage options are available, including a deeper drawer, as well as open-faced and lockable rack-mounted storage boxes.
| Assembly Notes | Phillips head screwdriver required |
|---|---|
| Dimensions | 2U Dimensions (W x H x D): 19" x 3.45" x 14.25" (483 mm x 88 mm x 362 mm) 3U Dimensions (W x H x D): 19" x 5.2" x 14.25" (483 mm x 132 mm x 362 mm) 4U Dimensions (W x H x D): 19" x 6.95" x 14.25" (483 mm x 177 mm x 362 mm) Weight Capacity: 100 lbs (45 kgs) Cable Access Hole: 1.25" (32 mm) Inside Width: 16.63" (422 mm) Drawer Extension: 9.54" (242 mm) |
| Finish | Black, textured powder coat |
| RoHS Compliant | Yes |
| Included Hardware | Assembly Components:
Rackmount Hardware:
|
| Synnex Part Number | 2UDRAWER-162 - 4614629 3UDRAWER-162 - 4614630 4UDRAWER-162 - 4614631 |
| Ingram Part Number | 2UDRAWER-162 - V42816 3UDRAWER-162 - V42817 4UDRAWER-162 - V42818 |
| Amazon ASIN | 2UDRAWER-162 = B0035B04ZM 3UDRAWER-162 = B0046SNH6Q 4UDRAWER-162 = B00BFTK7WG |
| TAA Compliant | Yes |

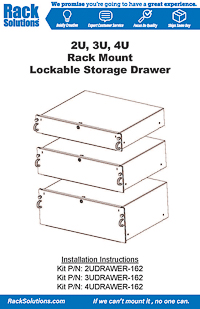

Download Lockable Rackmount Drawers - 14" Installation Instructions (opens in a new tab)
Download 2U Lockable Rackmount Drawer Dimensional Drawing (opens in a new tab)
Download 3U Lockable Rackmount Drawer Dimensional Drawing (opens in a new tab)
Download 4U Lockable Rackmount Drawer Dimensional Drawing (opens in a new tab)
