Rack Mount Shelf for Apple Mac mini

As low as $0.00
In stock
Qty:

Rack Mount 2 to 16 Mac minis per Shelf

  • Integrated airflow ducting for optimal cooling and thermal efficiency
  • Supports more Mac mini's per rack than alternatives in the industry
  • Increases operational efficiency with limited space

Compatible with Mac minis from 2010-2020

  • Works with 3rd, 4th and 5th gen systems
  • Developer Transition Kit (DTK) with A12Z SoC processor
  • 2020 Mac mini with Apple's M1 Chip

See "Additional Information" for compatibility.

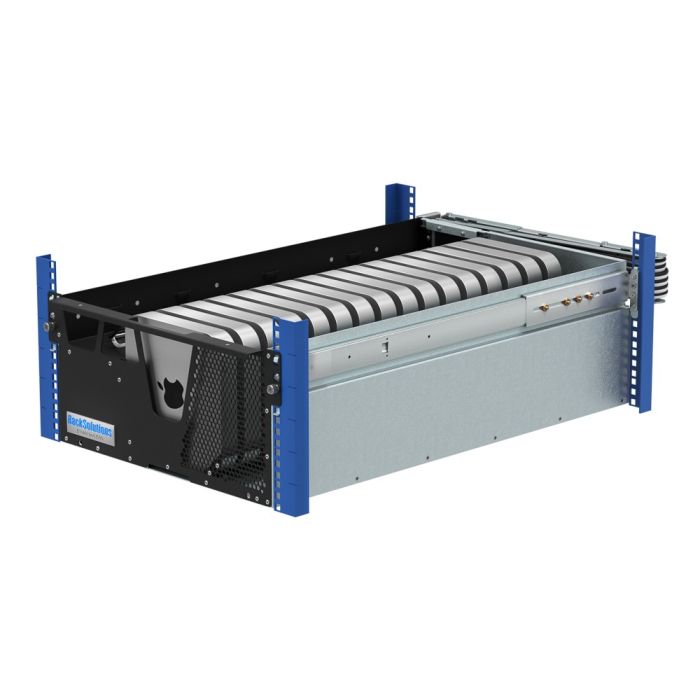

Apple Mac mini HyperShelf

SKU: 115-6875

(Capacity: 16)

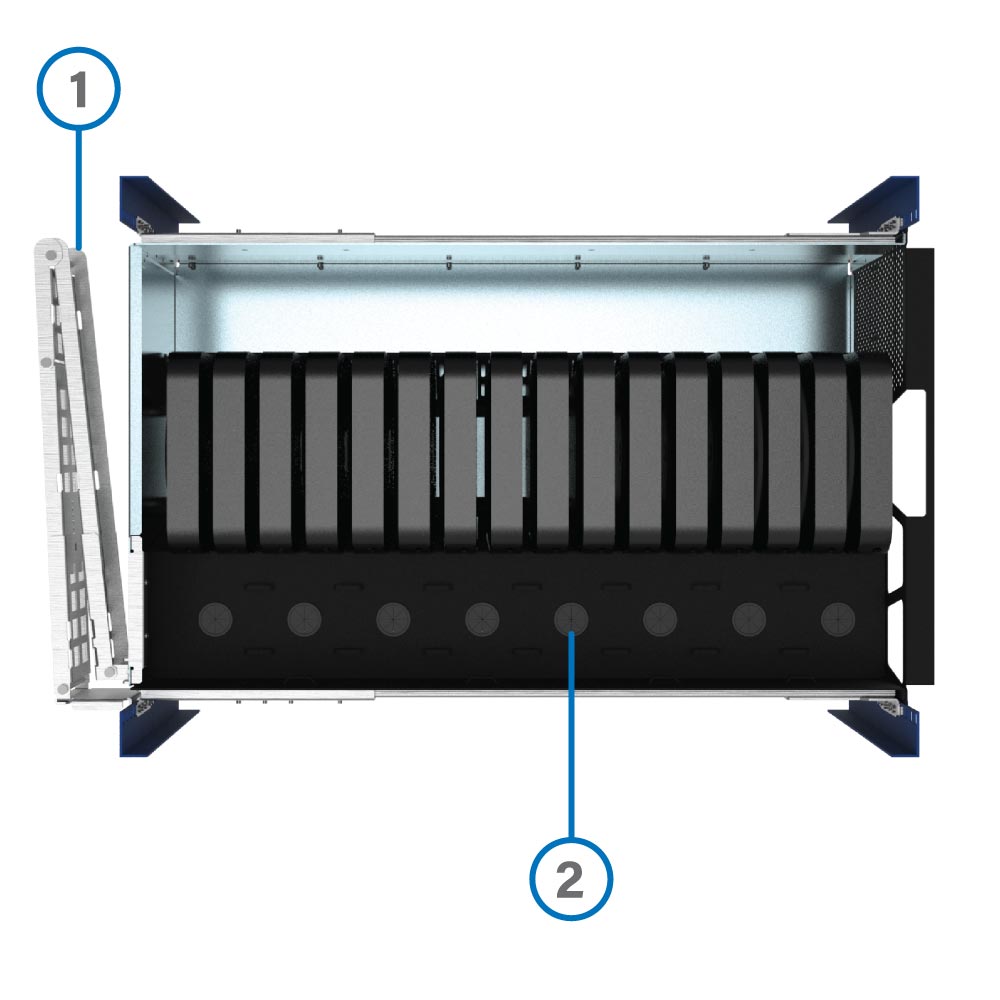

Apple Mac mini HyperShelf Features

  • Supports 16 Mac minis per 5 rack units of space

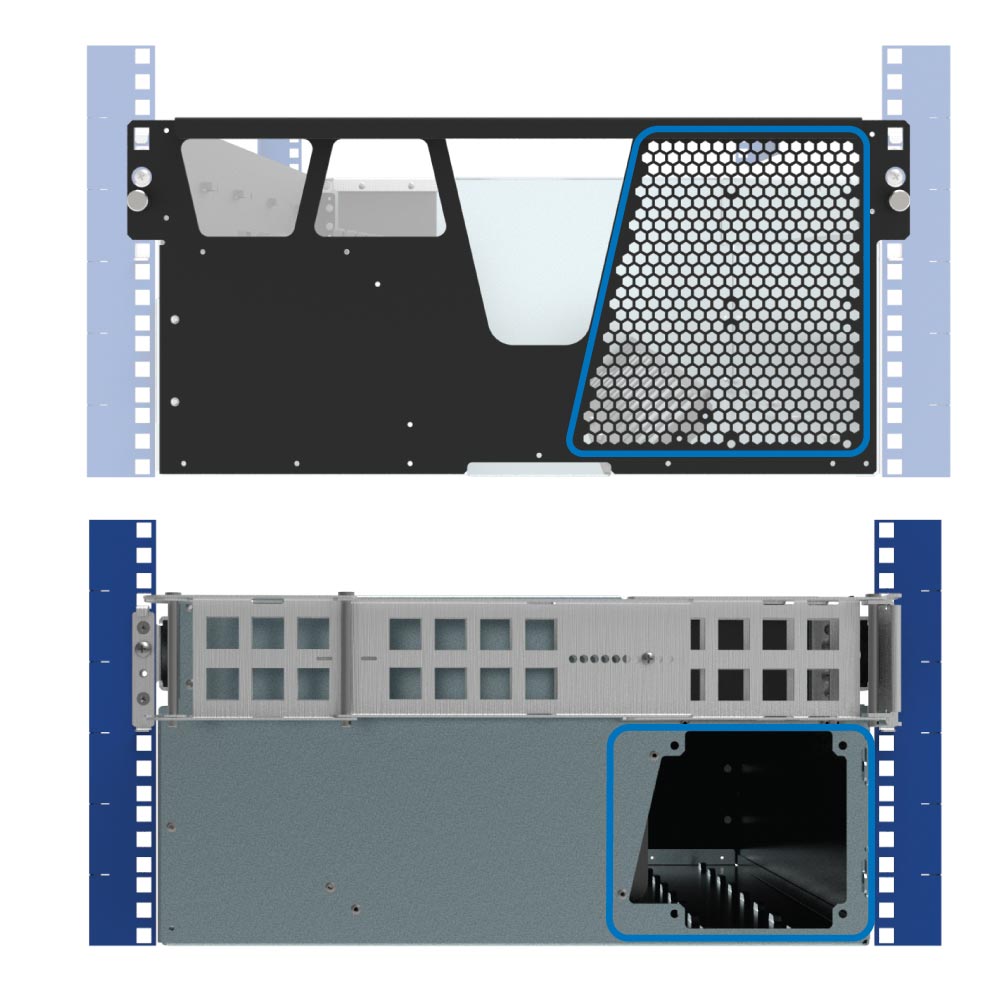

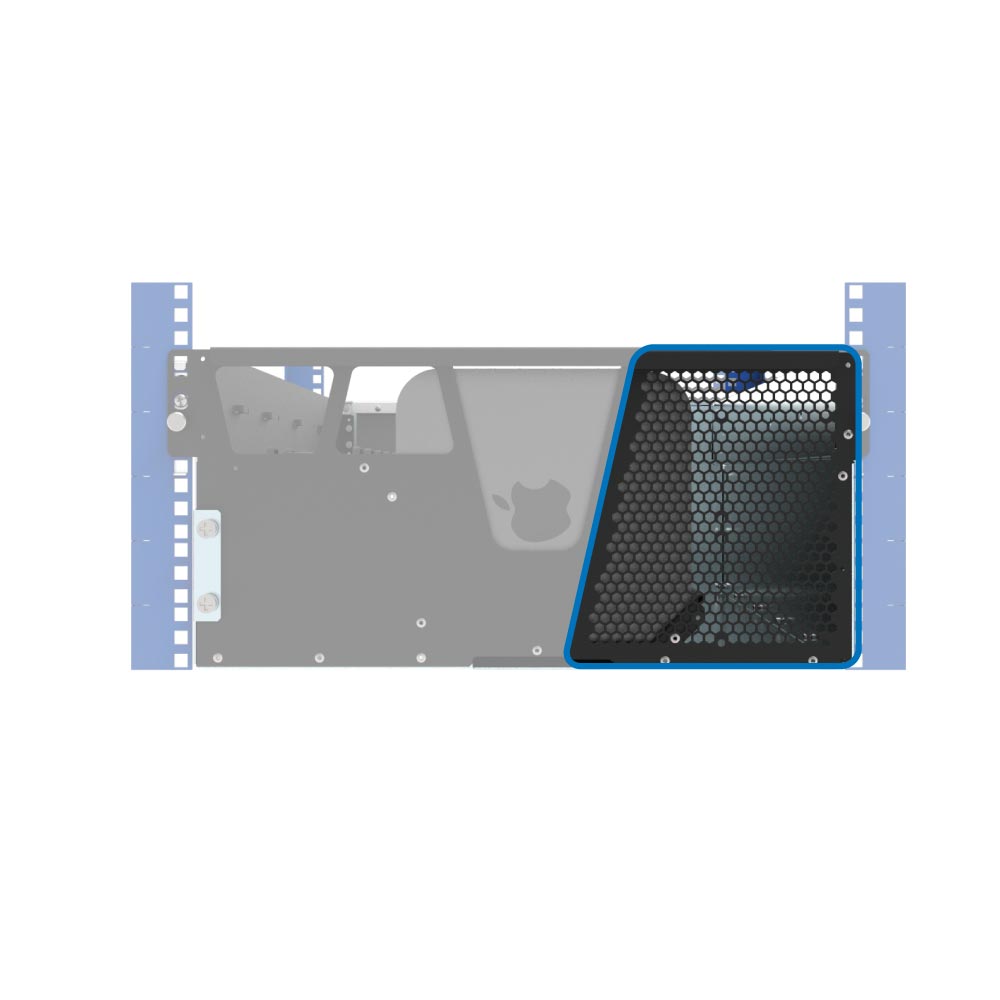

  • Isolated intake/exhaust ports
  • Extends out of the rack for in-rack serviceability

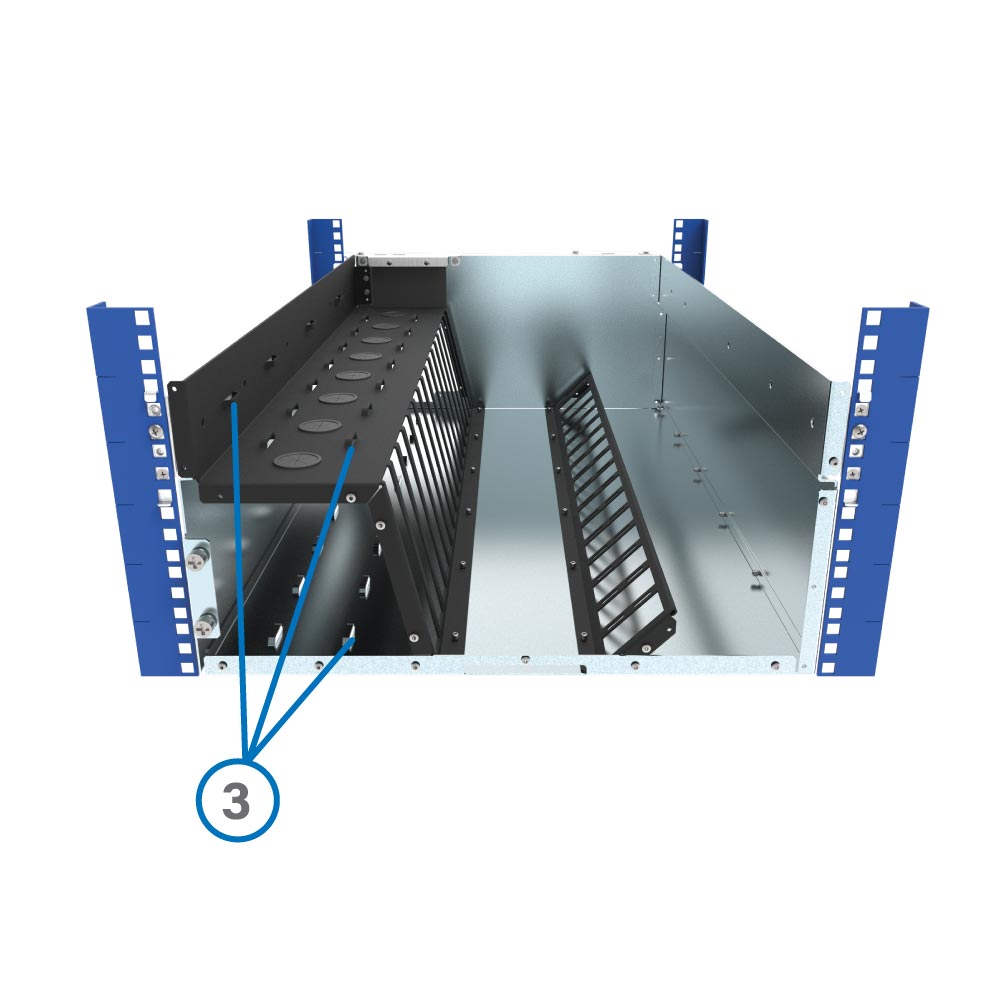

  • Built-in cable management tie points/pathways

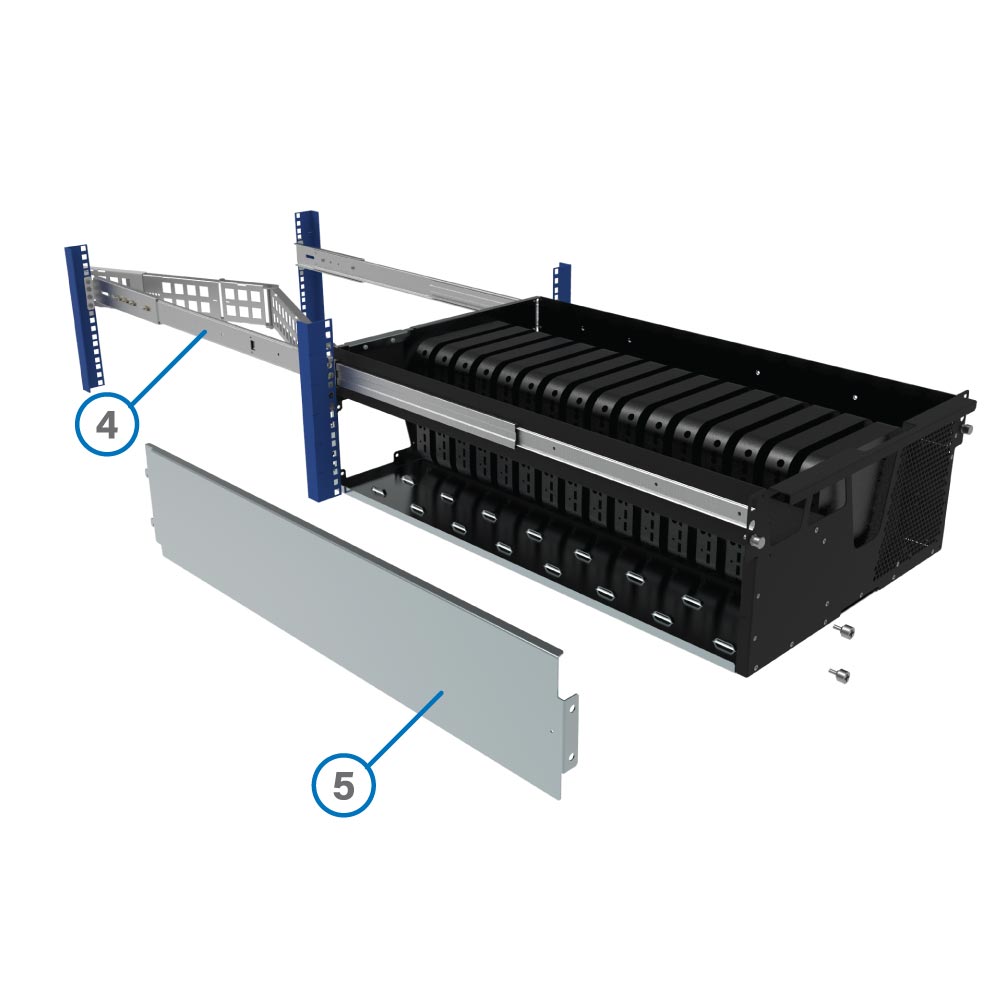

  • Optional blanking plate for better control of airflow
RackSolutions’ Mac Mini Shelf allows you to mount as many Macs per square foot as possible. We built these mounts to perfectly optimize space and airflow so the customer can be sure that their Macs will last. The Mac mini HyperShelf is designed for enterprise deployments and data center environments to provide a lower installation cost per device that doesn't interfere with the power button or peripheral ports.

Optimized for Maximum Device Mounting

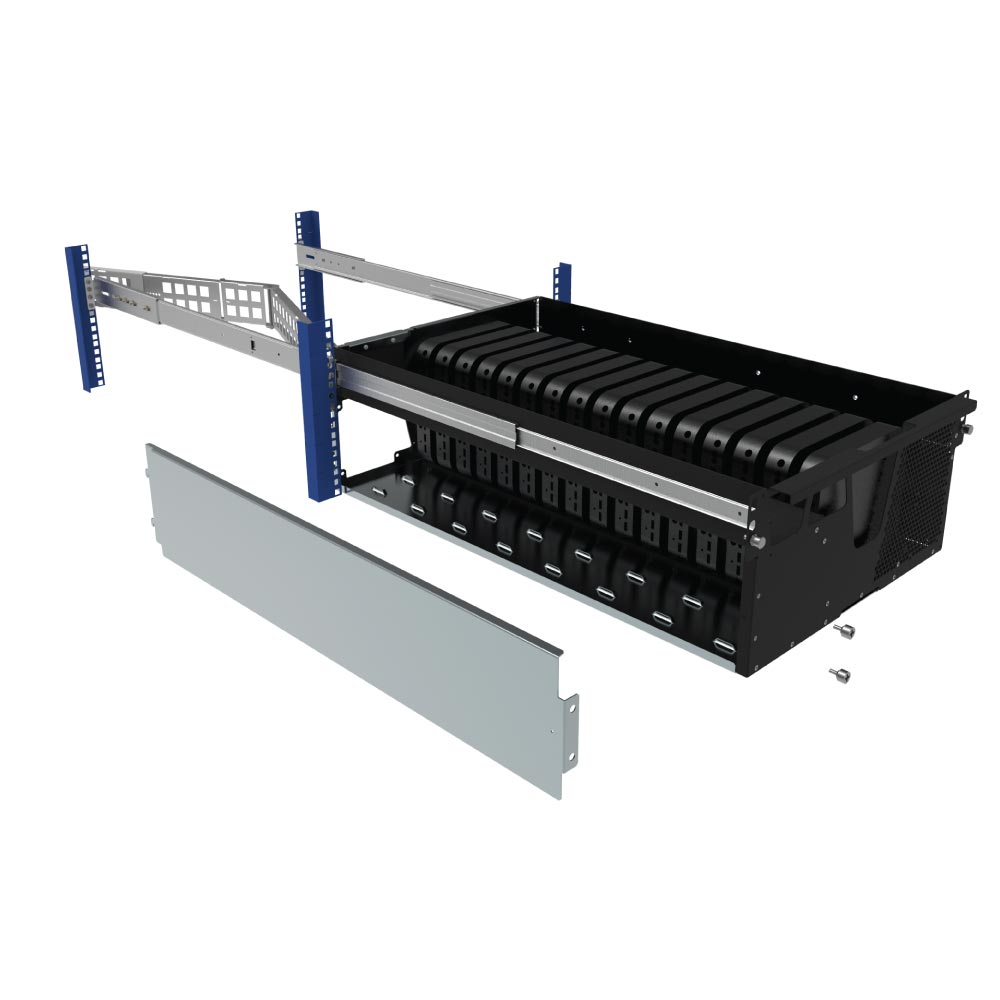

5U sliding enclosure that mounts 16 Mac mini devices

Easy Installation

Decrease deployment times with quick mount rail design and increased shelf density

Apple Mac Mini Rack Shelf

SKU: 112-4901 | 112-5541

(Capacity: 4)

Mac Mini Rack Shelf Features

  • 4 Mac minis per 1 rack unit
  • In-rack serviceability
  • Tool-less Installation
  • Separate In-take exhaust ports

The Mini Rack Access is an ideal solution to create a mini power rack. In less than 1U, up to 4 Mac minis can be installed in a standard 19" server rack shelf or any standard equipment rack. The sliding shelf works with standard mounting depth server racks that are square hole. The design of the 19" shelf allows airflow from the front of the rack to exhaust directly to the rear of the rack shelf without trapping them in hot air.

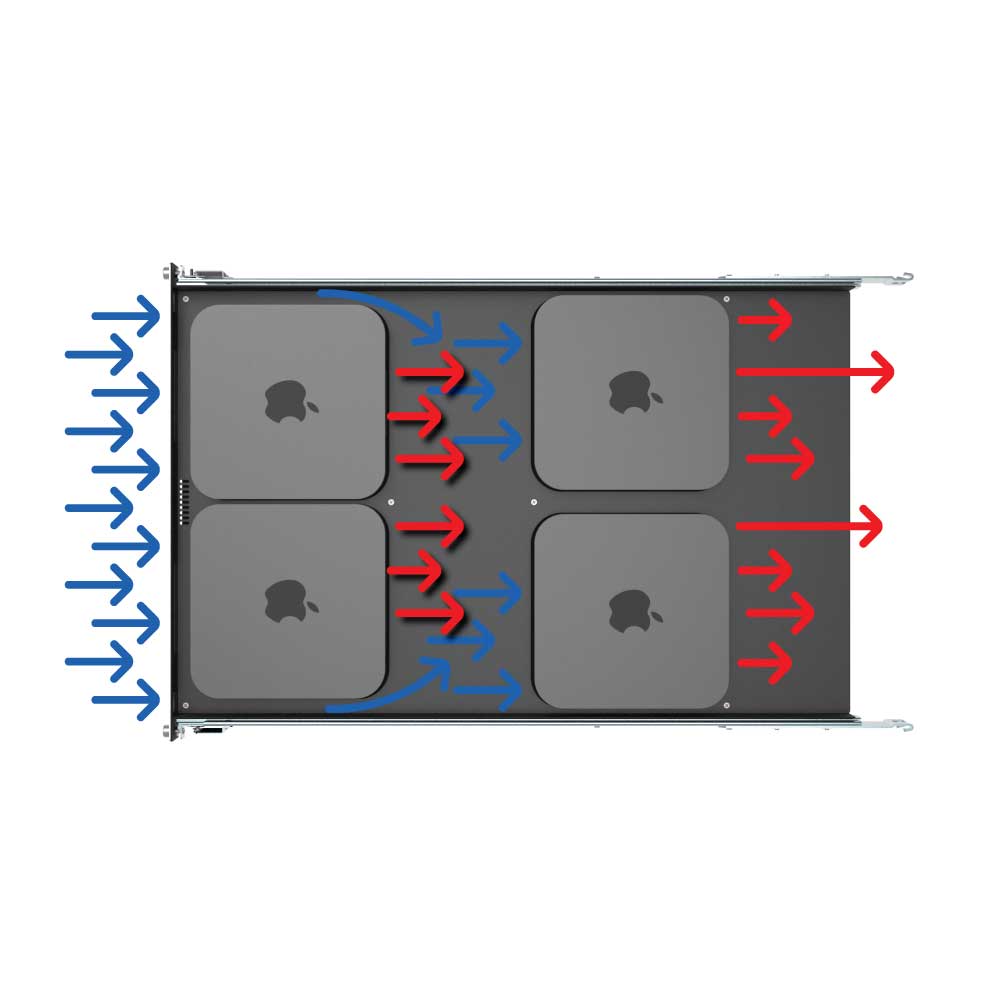

Integrated Airflow Duct

The ventilation system takes in cold air through the shelf's front air intake and moves the air to a lower chamber where each Mac Mini's air intake resides. Then the Mac Mini's own exhaust then pushes the hot air out, keeping hot and cold air separate.

Tool-less Installation

The Mac Mini Shelf can be installed in less than 5 minutes, no tools required. Each rail securely engages the square mounting holes on each side of the rack which allow shelf to just slide into place.

1U 2-Post Rack Mount Shelf for Apple Mac Mini

SKU: 107-5735

(Capacity: 2)

2-Post Mac Mini Rack Shelf Features

  • Rack Mount 2 Mac Mini computers per 1U of space
  • Compatible with 3rd, 4th and 5th Generation (2010 to 2020)
  • Integrated airflow ducting for optimal cooling and performance
  • All rear peripheral ports are accessible

The 2-Post Mac Mini rack shelf features a passive ventilation system designed to isolate hot and cold aisles in large data center environments. The shelf's front air intake moves cool air from the front and moves it through the lower chamber on the shelf and to the rear of the rack where it is ventilated out along with the Mac Mini's exhaust.

Accessible Rear Peripheral Ports

Optimal Cooling and Performance

More Information
Equipment Depth

112-4901 | 112-5541

  • 17.75" (451mm)
Shelf Type Solid
Rack Type 2 Post , 4 Post
Fixed/Sliding Fixed, Sliding
Shelf Surface Area

112-4901 | 112-5541

  • 27.14" (689.36mm) x 16.99" (431.55mm) = 461.10" (11,711.94mm)

107-5735

  • 17.70" (449.58mm) x 9.08" (230.63mm) = 160.72" (4082.29mm)
Finish Black, Powder Coat
Mounting Depth Range

115-6875

  • 26.00-29.50"

112-4901 | 112-5541

  • 27.77- 29.97"

107-5735

  • 9.08"
Included Hardware

115-6875

  • Cage nuts are provided for square hole racks

107-5735

  • Cage nuts are provided for square hole racks
Weight Capacity

112-4901 | 112-5541

  • 45 lbs capacity

107-5735

  • 30 lbs capacity
Rack Units

115-6875

  • 5U

112-4901 | 112-5541

  • 1U

107-5735

  • 1U
Overall Installation Depth

115-6875

  • 32.95" (837mm)

112-4901 | 112-5541

  • 24" (610 mm)

107-5735

  • 9.1" (231mm)
Hole Type

115-6875

  • 10-32 Threads, 12-24 Threads, Square Hole

112-4901 | 112-5541

  • Square Hole

107-5735

  • 10-32 Threads, 12-24 Threads, Square Hole
Amazon ASIN 107-5735: B074JLMSBZ
TAA Compliant Yes
RoHS Compliant Yes
Tech Notes

Compatible with:

  • Mac mini (Mid 2010)
  • Mac mini (Mid 2011)
  • Mac mini (Late 2012)
  • Mac mini (Late 2014)
  • Mac mini (2018)
  • Developer Transition Kit (DTK) with A12Z SoC
  • Mac mini with Apple's M1 Chip (Late 2020)
