Monitor Wall Mounts
Mount a computer monitor on a wall:
- Allows monitor to pivot up and down
- P/N 104-2411: moves up, down, left, and right
- Mounting hardware included
VESA hole patterns compatibility:
- 75x75 and 100x100mm compatible with 104-2202
- 75x75 and 100x100mm compatible with 104-2411
- 75x75, 100x100, and 200x100mm compatible with 104-4011

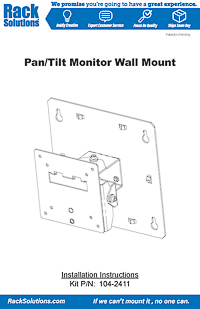

104-2411 Pivot Wall Mount
The pivot mount pictured above (104-2411) moves up, down, left, and right. The VESA compatibility is 75- 100 mm.
| VESA Standard | Hole Pattern | Monitor Weight | Screen Size |
| FDMI MIS-C | 75 x 35 mm | ≤ 10 lbs / ≤ 4.5 kg | 8" to 11.9" |
| FDMI MIS-D | 75 x 75 or 100 x 100 mm | ≤ 30.8 lbs / ≤ 14 kg | 12" to 23.9" |
| FDMI MIS-E | 200 x 100 mm | ≤ 50 lbs / ≤ 23.7 kg | 24" to 30.9" |
For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained. (opens in a new tab)
RackSolutions' Monitor Wall Mount allows you to easily mount a monitor on a wall. It is compatible with computer monitors from leading manufacturers like Dell and HP. The mount is designed to attach to monitors with 75-100 mm or 75-200mm VESA hole patterns.
For installation, hardware is included to securely attach the Monitor Wall Mount to a wall or stable flat surface. Wall Mount hardware includes a VESA monitor bracket, 4 drywall anchors, and 4 screws. Monitor hardware includes spacers and screws to attach your monitor to the wall mount.
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | OEM Compatibility | Universal | Finish | Black, powder coat | Dell Part Number | 104-2202 - A5498923 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
Synnex Part Number | 104-2411 - 6384278 104-2202 - 4614623 104-4011 - 4614624 | Ingram Part Number | 104-2411 - 9RB942 104-2202 - LC2288 |
|---|
Assembly Components:
- (1) Pivot Assembly
- (1) VESA Monitor Bracket
Monitor Hardware Package:
- (8) Nylon Spacers
- (4) M4 x 10mm Pan Head Screws
- (4) M4 x 18mm Pan Head Screws
- (4) M4 x 25mm Pan Head Screws
Wall Mount Hardware Package:
- (4) Pan Head Screws
- (4) Anchors
Assembly Components:
- (1) Pivot Assembly
- (1) VESA Monitor Bracket
Monitor Hardware Package:
- (8) Nylon Spacers
- (4) M4 x 10mm Pan Head Screws
- (4) M4 x 18mm Pan Head Screws
- (4) M4 x 25mm Pan Head Screws
Wall Mount Hardware Package:
- (4) Pan Head Screws
- (4) Anchors
Assembly Components:
- (1) Base Assembly
- (1) VESA Monitor Bracket
Monitor Hardware Package:
- (8) Nylon Spacers
- (4) M4 x 10mm Pan Head Screws
- (4) M4 x 18mm Pan Head Screws
- (4) M4 x 25mm Pan Head Screws
Wall Mount Hardware Package:
- (4) Pan Head Screws
- (4) Anchors
