A RackSolutions Exclusive!

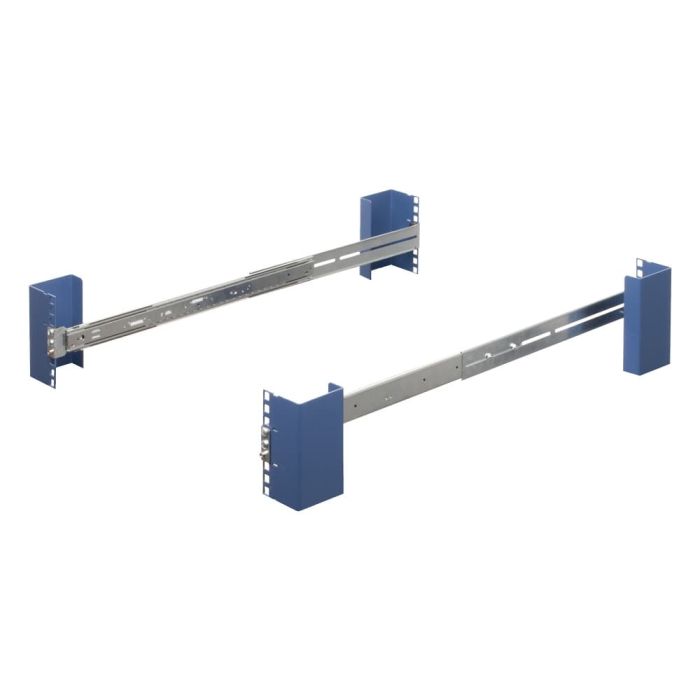

Front view - R210 Slide Rails - P/N: 120-2382

 Front view - R210 Slide Rails - P/N: 120-2382

Hover to View, Click to Zoom

  • Front view - R210 Slide Rails with server - P/N: 120-2382
  • Extended view - R210 Slide Rails - P/N: 120-2382
  • Side view - R210 Slide Rails with server - P/N: 120-2382
  • Rear view - R210 Slide Rails with server - P/N: 120-2382
  • Front view - R210 Slide Rails - P/N: 120-2445
  • R210 Slide Rails, 2Post center mount, P/N: 120-2445
  • Side view - R210 Slide Rails - P/N: 120-2445
  • R210 Slide Rails, 2Post center mount, P/N: 120-2445
  • R210 Slide Rails, 2Post center mount, P/N: 120-2445
  • Front view - R210 Slide Rails - P/N: 120-2382
  • Side view - R210 Slide Rails - P/N: 120-2382
  • Rear view - R210 Slide Rails - P/N: 120-2382

Dell PowerEdge R210, R220 Slide Rails

Fits any 4Post cabinet, 2Post rack

  • Fits square, round, threaded holes
  • Adjustable mounting depth from 3 - 30.5" (76 - 774 mm)
  • Rails slide out a distance of 17.5" (444 mm)
  • Cage nuts included for square hole mounting

Alternative to Dell R210, R220 rails

  • High quality, ball bearing slide rails
  • Solid steel construction

4Post or 2Post flush mounting

  • Use P/N: 120-2382

2Post center mounting

  • Use P/N: 120-2445
  • Includes 2 conversion brackets

Be the first to review this product

Items in stock ship out today if you complete your order in the next 9 hours and 52 minutes!
Product Name P/N: Availability Price Qty
Dell Poweredge R210,R220 Slide Rails - 4Post or 2Post Flush Mount 120-2382
In Stock
$179.99
Dell Poweredge R210,R220 Slide Rails - 2Post Center Mount 120-2445
In Stock
$209.99

Features

The RackSolutions Dell PowerEdge R210, R220 Slide Rails are an upgrade over the standard Dell R210, R220 rail kit, as Dell's rails do not slide. RackSolutions' model is also compatible with round, square or threaded server racks. Versatility is ingrained into every aspect of the RackSolutions Dell PowerEdge R210, R220 Slide Rails' design. They feature a mounting depth ranging from 3" to 30.5", an extension range of 17.5". These rails are an alternative to the Dell R210, R220 rails. The slide rails are built with high-quality design principles applied to a stainless steel frame. The slides themselves feature ball bearing construction to ensure smooth and stable functionality. These rails may also be installed in a 2 post center mount configuration (P/N: 120-2245), 2 post flush mount or 4 post configuration (P/N: 120-2382). The RackSolutions Dell PowerEdge R210 Slide Rails will ship with all of the necessary hardware for installation. As a result, buyers need only have a Phillip's head screwdriver to assemble the product.

Dell PowerEdge R210, R220 Slide Rails - Technical Specifications

Rail OEM Dell
Server Compatibility Dell PowerEdge R210
Dell PowerEdge R220
Rack Type 4Post or 2Post, 19" EIA-310 standard server rack
Hole Type Compatible with the industry standard 3/8" (10 mm) square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and Metric M6
Rail Type Ball bearing slide rails
17.5" (444 mm) extension
Rack Units 1U
Mounting Depth Range 3 - 30.5" (76 - 774 mm)
Included Hardware
  • Kit contents:
  • (1) Right Rail
  • (1) Left Rail
  • (2) Long Rear Bracket
  • (2) Short Rear Bracket

  • Mounting hardware:
  • (4) M4 x .375 Flat Head
  • (4) M4 Keps Nut
  • Rack hardware kit:
  • (8) 10-32 x .500 Pan Head
  • (8) 12-24 x .500 Pan Head
  • (8) 12-24 Square Nut
  • (8) 12-24 Cage Nut

Assembly Notes Phillips head screwdriver required
