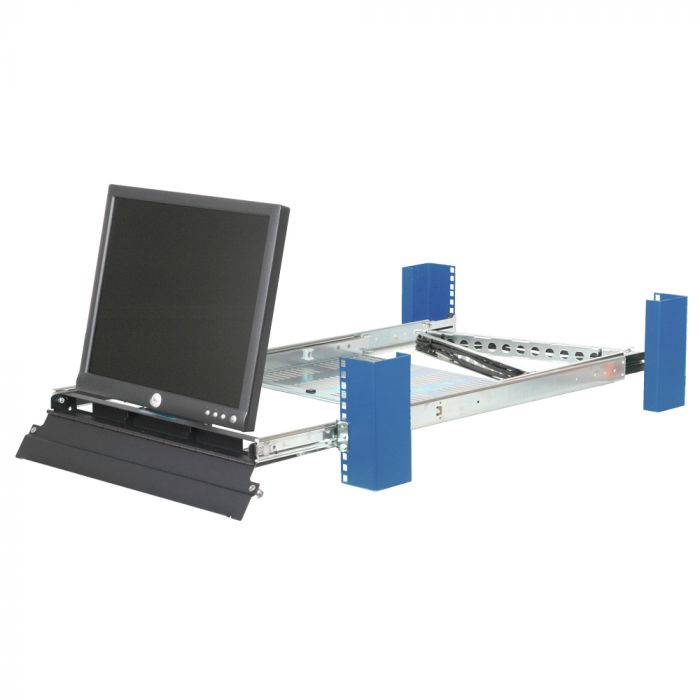

2U Shallow Sliding Rackmount Monitor Shelf

As low as $274.99
In stock

Use your own monitor, or select our 17” or 19” LCD

  • Supports 15" - 19" LCD with a VESA mount
  • Compatible with any KVM switch
  • Articulated cable management included

Fits any 4 Post Rack

  • Compatible with square and round holes
  • Adjustable mounting depth of 11” - 31.5" (279 - 800 mm)
  • 2U of rack space required
RoHS-Symbol (desktop image)RoHS-Symbol (mobile image)
TAA Compliant (desktop image)TAA Compliant (mobile image)

The Rackmount Monitor Kit allows you to use a standard Flat Panel Monitor and install it into any 4 post rack. Designed to support flat panel monitors with 75mm or 100mm hole patterns, the 20” Sliding Rackmount Monitor Kit can be installed into racks with an installation depth ranging from 11” to 31.5” (279 - 800 mm). We also provide Dell 17” or 19” LCD monitors for additional purchase.



VESA StandardHole PatternMonitor WeightScreen Size
FDMI MIS-C75 x 35 mm≤ 10 lbs / ≤ 4.5 kg8" to 11.9"
FDMI MIS-D75 x 75 or 100 x 100 mm≤ 30.8 lbs / ≤ 14 kg12" to 23.9"
FDMI MIS-E200 x 100 mm≤ 50 lbs / ≤ 23.7 kg24" to 30.9"
VESA Specifications Guides (desktop image)VESA Specifications Guides (mobile image)

For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained. (opens in a new tab)

More Information
Country of Manufacture United States
Included Hardware 133-2279
  • Kit Contents:
    • (1) Partially Assembled Shelf w/ Door
    • (2) Long Rear Brackets
    • (2) Short Rear Brackets
    • (1) Cable (PS2 to USB)
    • (2) Cable Power Cord
    • (10) 11" Tie Straps
  • Rack Mount Hardware x8 Bag:
    • (8) 12-24 x 1/2" Pan Head Screws Zinc
    • (8) 10-32 x 1/2" Pan Head Screws
    • (8) 12-24 Cage Nuts
    • (8) 12-24 Square Nuts
  • Generic Monitor Hardware Bag:
    • (4) 1/8" White Nylon Spacers
    • (4) 1/4" White Nylon Spacers
    • (4) Pan Head Screws M4x6mm
    • (4) Pan Head Screws M4x25mm
    • (4) Pan Head Screws M4x30mm
  • Dell 17V/19V Monitor Hardware:
    • (4) 1/4" White Nylon Spacers
    • (4) Pan Head Screws M4x14mm
  • Rear Hardware Bag:
    • (4) 8-32 x 3/8" Pan Head Screws
    • (4) 8-32 Nuts
KVM Type Keyboard and Monitor Mount
Mounting Depth Range Compatible with the industry standard 3/8" square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24, and Metric M6
Rack Type 4 Post Rack
Overall Installation Depth 31" Minimum
Cable Management Articulated Cable Management Arm included
Additional CMAs are also sold separately. Call to order.
Assembly Notes Fully Assembled except for optional monitor
Cable routing required
Fixed/Sliding Sliding
Monitor Specs 17” (432 mm) Monitor Specs
Monitor is Dell E170S (optional)
1280x1024 Pixels @ 60Hz Max. Resolution
TFT Active Matrix
250 cd/m² Brightness
800:1 Image Contrast Ratio

19” (483 mm) Monitor Specs
Dell E197FP (optional)
1280x1024 Pixels @ 75Hz Max. Resolution
TFT Active Matrix
300 cd/m² Brightness
500:1 Image Contrast Ratio
VESA Mount 100 mm or 75 mm VESA hole patterns (required)
Most LCD display have a four hole VESA mounting holes on the back
The VESA holes may be hidden by the display stand
Monitor Thickness LCD display thickness: 2.75" (70 mm) maximum
Exceeding this thickness will require more than 2U of rackmount space
Monitor Width LCD display width: 17.5" (444.5 mm) maximum
15" 17" or 19" (381 mm, 432 mm or 483 mm) LCD display typically fit
RoHS Compliant Yes
TAA Compliant Yes
