2U 2Post Cantilever Rack Shelf 13in Depth

100 % of 100
As low as $44.99
In stock

Great for Mounting IT & Networking Equipment

  • Solid and vented options available
  • Choose from equipment stops (flanges) facing up or down
  • Slots for equipment straps along the side of the shelf
  • Can be mounted upside down

Compatible With 2 Post and 4 Post Racks

  • Weight Capacity: 60 lbs (27.2 kgs)
  • Shelf Depth: 13" (330.2 mm)
  • Compatible with round, threaded, or square rack holes

Want something more versatile? Check out our configurable (opens in a new tab) version.

See "Additional Information" for Technical Specifications.

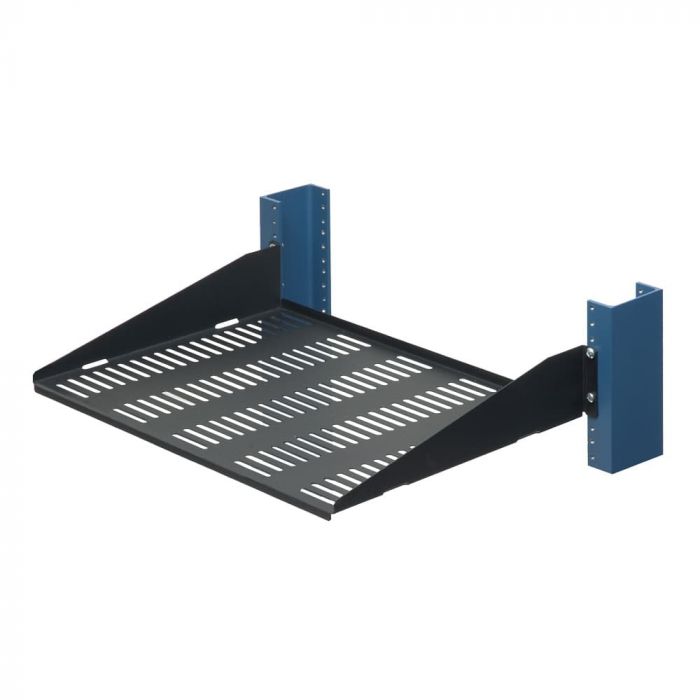

RackSolutions' fixed 2U Cantilever Rack Shelf has a depth of 13 inches, (330 mm) and a weight capacity of 60 lbs (27.2 kgs) making it perfect for rack mounting smaller networking, AV, and other equipment that might not ordinarily be rack-mountable. Our 2 Post rack shelves are compatible with most standard EIA 19" (opens in a new tab) 2Post relay and telco racks and 4Post racks and cabinets. These fixed rack shelves are cantilever, meaning they mount to the rack at only one end of the shelf. Both vented and solid shelf options are available depending on your airflow needs. The shelf features flanges that can face either up or down meaning that the shelf can be mounted upside down to fit a wider variety of needs for different types of electronic equipment. Equipment strap slots found along the side of the shelf allow straps to be looped through the shelf to secure equipment to the shelf.

2U Cantilever 2 Post Rack Shelf - 13" depth (desktop image)2U Cantilever 2 Post Rack Shelf - 13" depth (mobile image)

2U Cantilever 2 Post Rack Shelf Features

RackSolutions 2U Cantilever 2 Post Rack Shelf is available vented or solid with flanges up or down.

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 2USHL-022HALF-13UV | 2USHL-022HALF-13DV
  • Assembly Hardware:
  • (1) Shelf
  • (4) 10-32 Pan Head Screws
  • (4) 12-24 Pan Head Screws

  • Assembly Hardware:
  • (1) Shelf
  • (4) 10-32 Pan Head Screws
  • (4) 12-24 Pan Head Screws
Dell Part Number 2USHL-022HALF-13US - A0539432
2USHL-022HALF-13UV - A0754708
2USHL-022HALF-13DV - A0445191
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 2USHL-022HALF-13US - 6356022
2USHL-022HALF-13DS - 6223599
2USHL-022HALF-13UV - 4614649
2USHL-022HALF-13DV - 4614779
Ingram Part Number 2USHL-022HALF-13US - E93440
2USHL-022HALF-13DS - E93442
2USHL-022HALF-13UV - E93439
2USHL-022HALF-13DV - E93441
Assembly Notes Phillips head screwdriver required
Equipment Depth The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges. The flanges are used to increase the load-bearing capacity of the rack mount shelf or used to prevent equipment movement.
Shelf Type Solid , Vented
Rack Type 2 Post
Fixed/Sliding Fixed
Shelf Surface Area Flanges Up: 19.89" x 17.5" (505 x 445 mm)
Flanges Down: 20" x 17.5" (508 x 445 mm)
Finish Black textured powder coat
Mounting Depth Range These relay rack shelves are cantilever mounted and will install into any relay rack, as well as any 4Post server rack
Rack Units 2U
Tool-less/Standard Standard
Overall Installation Depth 13" (330 mm)
Material 16 GA Steel
Tech Notes These relay rack shelves can be installed in a 4Post server rack.
Shelf depth is measured from front to rear excluding flanges.
