5U HyperShelf for 7 Lenovo ThinkStation P3 Ultra Gen 2
Rack mount up to 7 ThinkStation P3 Ultras Gen 2 per shelf
- Increases operational efficiency with limited shelf space
- Integrated airflow ducting for optimal cooling and thermal efficiency
- Supports more ThinkStation P3 Ultras Gen 2 per rack than alternatives in the industry
- High-quality ball bearing slide rails with high capacity and full extension
- No power button or port interference
- 27” - 29.5” (685.8mm - 749.3mm) mounting depth range
- Compatible with ThinkStation P360 Ultra Workstation, ThinkStation P3 Ultra Workstation, and ThinkStation P3 Ultra Gen 2 Workstation
- Up to 4x faster installation and deployment compared to Gen 1 HyperShelf*
HyperShelf for Lenovo ThinkStation P3 Ultra Gen 2 Features
- Rack mount 7 ThinkStation P3 Ultras per 5 rack units of space
- Extends out of the server rack for in-rack serviceability
- Built-in cable management for integrated tie points/pathways
- Isolated intake and exhaust ports
- Removable side panels for cable access and cleaning
- Integrated 120mm exhaust fan to increase air flow and cooling capacity
- Optional blanking plate to control airflow in the shelf
Note: To ensure optimal performance, we recommend deploying this product within a standard data center environment at or below 75°F (~23°C).
This HyperShelf is equipped with a 6 ft Fan Cable featuring an IEC C14 plug to a Fan Terminal Receptacle (SKU:100-9043). An adapter may be required to accommodate different plug types. RackSolutions does not provide adapters for the HyperShelf.
Designed for data center environments and enterprise deployments, the Lenovo ThinkStation P3 Ultra Gen 2 HyperShelf allows you to rack mount 7 workstations per 5U of rack space. This rack mount shelf provides a lower installation cost per device that doesn’t interfere with the power button or peripheral ports. We built the ThinkStation P3 Ultra Gen 2 HyperShelf to perfectly optimize space and airflow to enhance system performance and reliability. By using this rack shelf, you will be able to decrease deployment times and increase scalability.
*Based on a time study, installing the PCs and power supplies into the Gen 2 HyperShelf is up to four times faster compared to the previous Lenovo ThinkStation P3 Ultra Gen 1 HyperShelf model. This improvement reflects the efficiency of the new shelf design, not the speed or performance of the PCs themselves.
The comparison measures the time required to install and connect the PCs and PSUs within the shelf, not the time it takes to install the shelf into the rack. Actual results may vary depending on configuration, environment, and setup conditions.
Industry Applications
The RackSolutions HyperShelf is built for hyperscale data centers and high-density configurations where efficiency, airflow, and space optimization are critical. Engineered for versatility, it supports a wide range of industries and applications by reducing installation costs per device and improving in-rack serviceability.
Banks and Financial Institutions - Powers high-density workstation clusters for daily banking operations, share trading, and real-time data analysis.
Automotive and Aerospace Industries - Supports engineering workloads, including simulation and CAD applications, with efficient cooling and compact rack layouts for GPU-intensive performance.
Media and Post-Production Teams - Hosts render farms and VFX workstations, enabling high-performance processing while maximizing rack space and organization.
Remote Office and Edge Deployments - Enables rapid installation, simplified maintenance, and consistent performance across distributed environments. This ensures enterprise-grade reliability beyond the primary data center.
Data Center Environments - Maximizes rack density and airflow efficiency while ensuring easy maintenance. Its high-density design simplifies installation and cable management, helping data centers operate more efficiently and cost-effectively.
The fully articulated Cable Management Arm is compact and adjustable. The cable management arm extends out of the rack for in-rack serviceability, allowing you to easily slide your devices in and out of the rack. The ThinkStation P3 Ultra Gen 2 shelf features built-in cable management, so you can conveniently pass cables through the pathway within limited space.

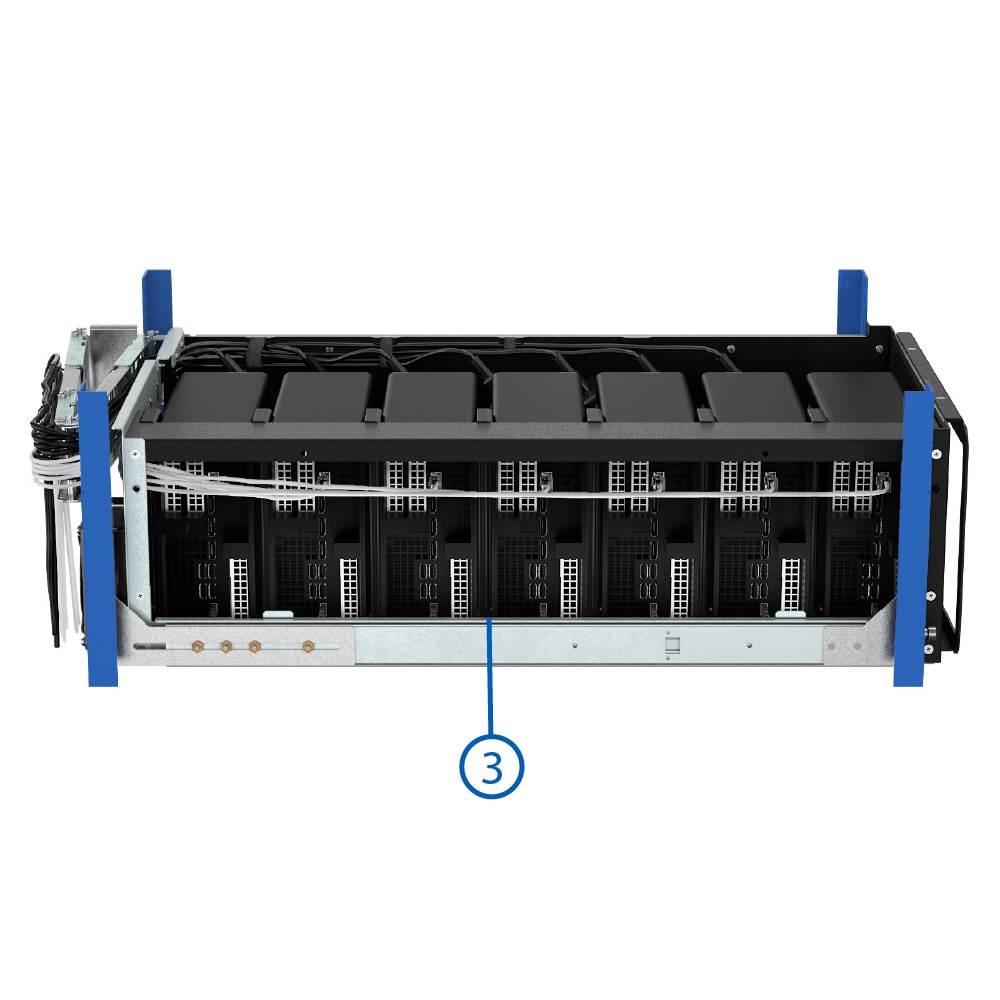

The ThinkStation P3 Ultra Gen 2 HyperShelf features integrated tie points, allowing you to designate cable pathways for cable management and organization.

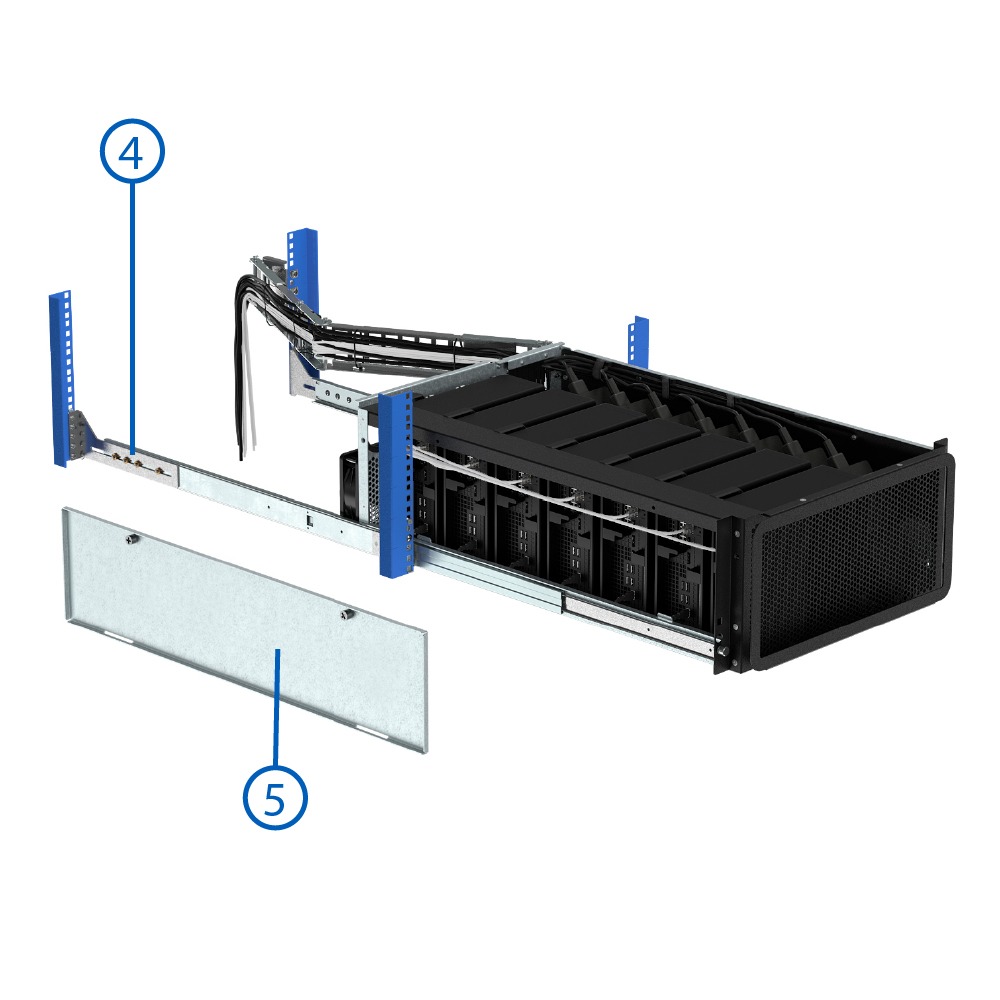

The rack mount shelf sits on high-quality ball bearing slide rails for easier serviceability and increased accessibility. For increased operational efficiency, the side panel provides airflow management for your devices. The removable side panel is included for cable access and exhaust containment.
For optimal cooling and thermal efficiency, the ThinkStation P3 Ultra Gen 2 HyperShelf features integrated airflow for your workstations. To prevent the air from mixing, the isolated intake and exhaust aisles separate the hot and cold air.

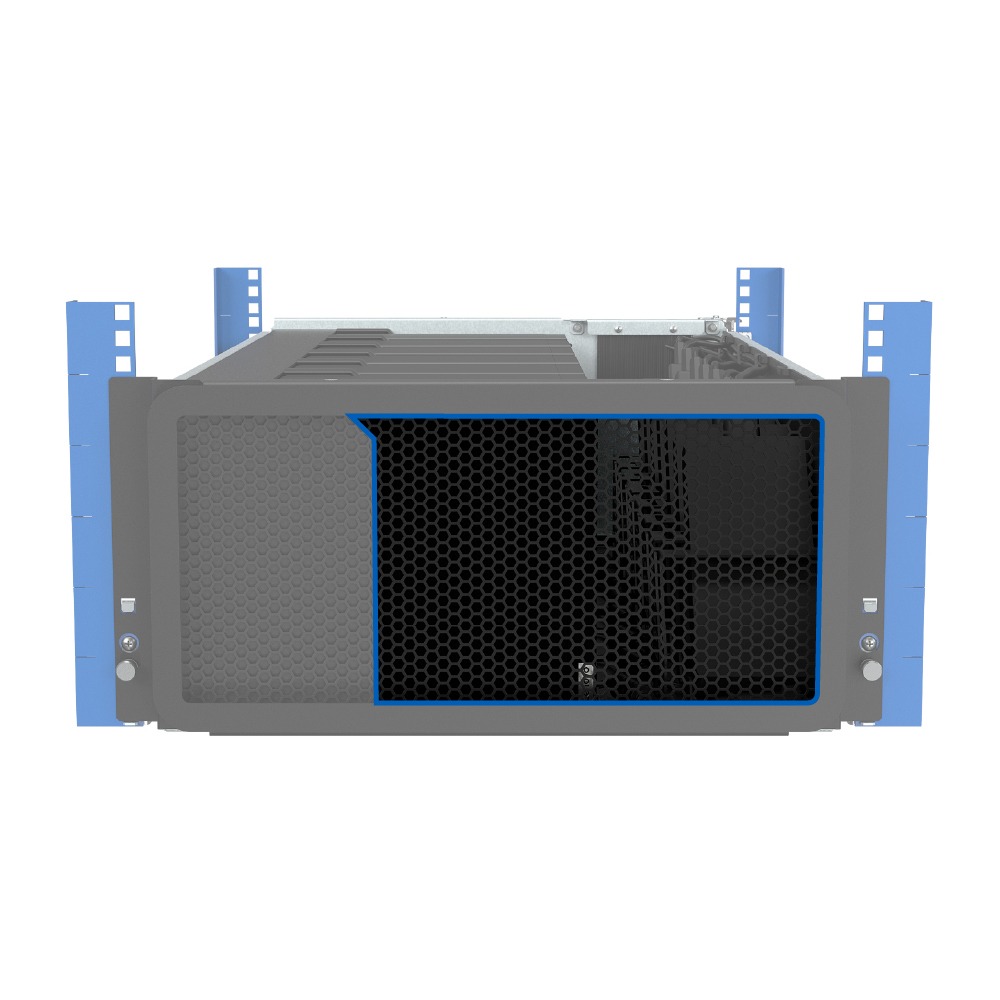

The front airflow management of the rack mount shelf includes mounting holes for optional fans to be installed. The airflow management separates the hot and cold air, so you can be confident that your devices will not overheat.
The rack mount shelf features removable side panels that allow for accessing power buttons, peripheral ports, or power supplies.
| Made In America | Yes | BABA Compliant | Yes | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | OEM Compatibility | Lenovo | Generation | Gen1, Gen2 | Product Line | ThinkStation | Form Factor | Small, Tiny | U Height | 4U - 9U | Rack Type | 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Shelf Depth | 25"- 30" (635mm-762mm) | Fixed/Sliding | Sliding | Finish | Galvanized, Clear Zinc, and Black Powder Coat | Material | Galvanized Steel, Cold-Rolled Steel |
|---|
Data Sheet
5U HyperShelf for 7 Lenovo ThinkStation P3 Ultra Gen 2 (115-8177)
Open PDF

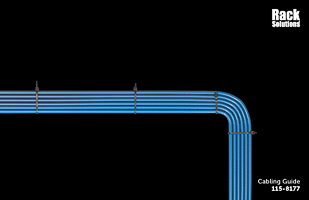

Cable Guide
5U HyperShelf for 7 Lenovo ThinkStation P3 Ultra Gen 2 (115-8177)
Open PDF

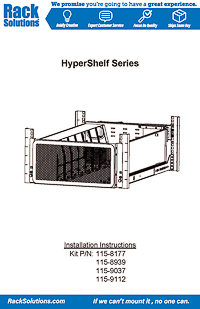

Installation Instructions
5U HyperShelf for 7 Lenovo ThinkStation P3 Ultra Gen 2 (115-8177)
Open PDF

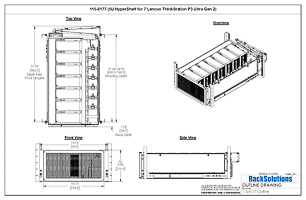

Dimensional Drawings
5U HyperShelf for 7 Lenovo ThinkStation P3 Ultra Gen 2 (115-8177)
Open PDF
Kit Contents:
- (1) Hypershelf
- (1) Cable Management Arm Kit
- (1) Rail Kit
- (1) Fan Hardware Kit
Fan Hardware:
- (1) Fan Power Cord
- (2) 50" Hook and Loop Wrap
Cable Management Arm Kit:
- (1) Cable Management Arm Assembly
- (1) 50" Hook and Loop Wrap
- (6) 11" Cable Tie
- (8) 8-32 x .500 Truss Head Screw
- (2) 10-32 x .500 Pan Head Screw
- (2) 10-32 Cage Nut
Rail Kit:
- (1) Rail Assembly Pair
- (4) 8-32 x .250 Truss Head Screw
Kit Contents:
- (1) P3 Ultra Blanking Panel
- ThinkStation P3 Ultra Gen2 Workstation
- ThinkStation P3 Ultra Workstation
- ThinkStation P360 Ultra Workstation
