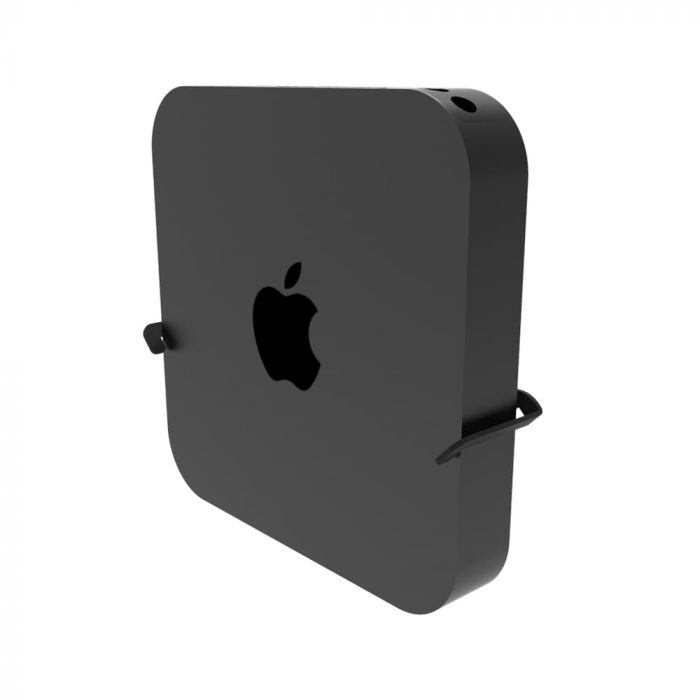

Quickmount Apple Mac Mini VESA Wall Mount (2010-2023)

In stock

Easily install your Apple VESA Mount

  • Mount your Mac Mini to the wall or behind a monitor
  • Uses standard VESA pattern mounting holes, compatible with almost any monitor
  • Compatible with 2010-2023 Apple Mac minis
  • Includes necessary hardware for Apple VESA wall mounting
  • Works with the Developer Transition Kit (DTK) running on Apple's A12Z SoC

Simple and Non-Intrusive Design

  • Single-piece design allows the Mac Mini to easily slide into place
  • Open V-shaped design does not interfere with any peripheral ports
  • Mount frame allows Mac Mini to face any direction
  • Built to last with durable 14 GA cold-rolled steel frame
  • Scratch resistant black powder coat finish

See "Additional Information" for compatibility.

104-6766-Installation-1 (desktop image)104-6766-Installation-1 (mobile image)

Fast and Easy Installation

Just mount the frame to a wall or to the back of a monitor using the VESA hole pattern on the back and slide the Mac Mini into place.
104-6766-No-Interference (desktop image)104-6766-No-Interference (mobile image)

Unintrusive Design

Our Quickmount is designed to allow the Mac Mini to be installed in any orientation without blocking the device's peripheral ports.

RackSolutions Quickmount for Apple's Mac Mini provides a simple and discrete solution for mounting your Mac Mini to a wall or behind your monitor. Our Apple VESA mount features a unique and minimalist V-shaped design that keeps your Mac Mini safely mounted on the wall or monitor while maintaining a clean and non-intrusive look.

Constructed with 14 GA steel, the open design provides proper ventilation and easy access to the ports on your device. Mounting hardware is included for your Apple VESA Mount. The Mac Mini Quickmount allows you to mount your mini with the ports facing up or down, whichever cable management option is best. You can also use our Apple VESA mount for Apple's Developer Transition Kits running the A12Z SoC.

For more information on VESA Mounting Standards and what VESA stands for, visit VESA Mounting Standards Explained (opens in a new tab).

VESA StandardHole PatternMonitor WeightScreen Size
FDMI MIS-C75 x 35 mm≤ 10 lbs / ≤ 4.5 kg8" to 11.9"
FDMI MIS-D75 x 75 or 100 x 100 mm≤ 30.8 lbs / ≤ 14 kg12" to 23.9"
FDMI MIS-E200 x 100 mm≤ 50 lbs / ≤ 23.7 kg24" to 30.9"
VESA Specifications Guides (desktop image)VESA Specifications Guides (mobile image)

For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained. (opens in a new tab)

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Weight (lbs) 0.648000
Country of Manufacture United States
Included Hardware 104-6766
  • Kit Contents:
    • (1) Mounting Bracket
  • Wall Mounting Hardware:
    • (2) Flat Head Wall Screws
    • (2) Drywall Anchors
  • VESA Mounting Hardware:
    • (2) M4 10mm Flat Head Screws
    • (2) M4 20mm Flat Head Screws
    • (2) Spacers
Apple Compatibility A1347, A1993, A2348, A2686, A2816
Compatibility Apple
Dimensions L: 8.3in W: 1.8in H: 3.8in
Rack Type Wall Mount
Finish Black powdered coat
Tech Notes Constructed from 14 GA steel
