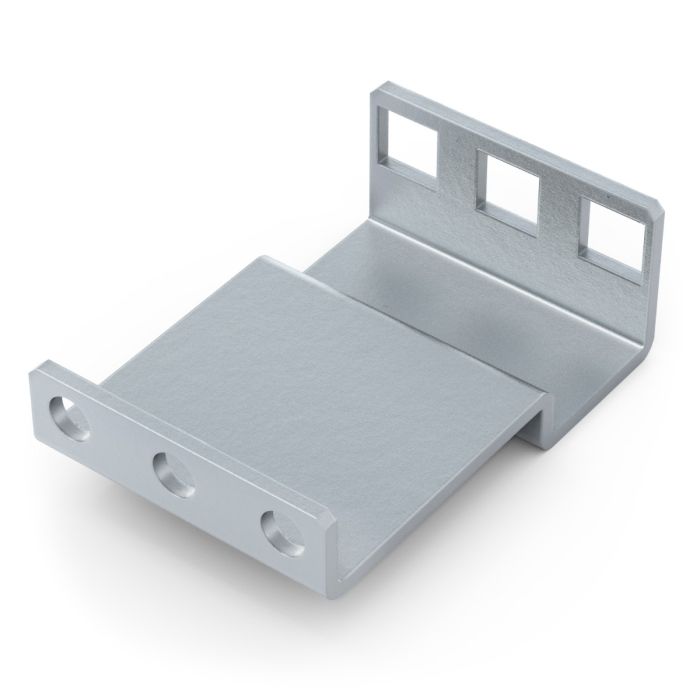

1U Adapter Brackets
As low as $15.99
Adjusts server rack installation depth
- Quick fix for racks that are too long or too short
- Works with square, threaded and round hole racks in 4 post racks
- 5 depth options available (.59” to 3.5” length)
- 2 bends = C shaped uprights / 4 bends = ? shaped uprights
- Brackets are sold as singles
Compatible with most 4Post racks
- Works with square, threaded and round holes in 4 post racks
- Compatible Dell, HP, and IBM equipment
- 1UBRK-059 is NOT compatible with Dell Ready Rails
- Weight capacity rated at 50 lbs per rack unit
Ex: 1U = 50 lbs, 2U = 100 lbs, 4U = 200 lbs, 6U = 300 lbs, etc.
|Country of Manufacture||United States|
|Dell Part Number||1UBRK-059 - A6819796
1UBRK-350 - A3367237
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
|Synnex Part Number||1UBRK-059 - 5521610 1UBRK-100 - 5267932 1UBRK-200 - 5521611 1UBRK-270 - 5521612 1UBRK-290 - 5521613 1UBRK-350 - 5521614|
|Ingram Part Number||1UBRK-059 - CE1230 1UBRK-100 - 3GY691 1UBRK-200 - CE1231 1UBRK-270 - CE1232 1UBRK-290 - CE1233 1UBRK-350 - CE1234|
|Assembly Notes|| Phillips head screwdriver required
Requires screws that are 3/8 in length.
|Hole Type||EIA 3/8" square holes (9.5 mm), round holes, 12-24 threaded holes|
|Rack Post Shape||1UBRK-059: C Shape
1UBRK-200: ? Shape
1UBRK-270: ? Shape
1UBRK-290: C Shape
1UBRK-350: ? Shape What are L, C, and ? (opens in a new tab) rack upright shapes?
|Amazon ASIN||1UBRK-059 = B00UVKC1KG|
