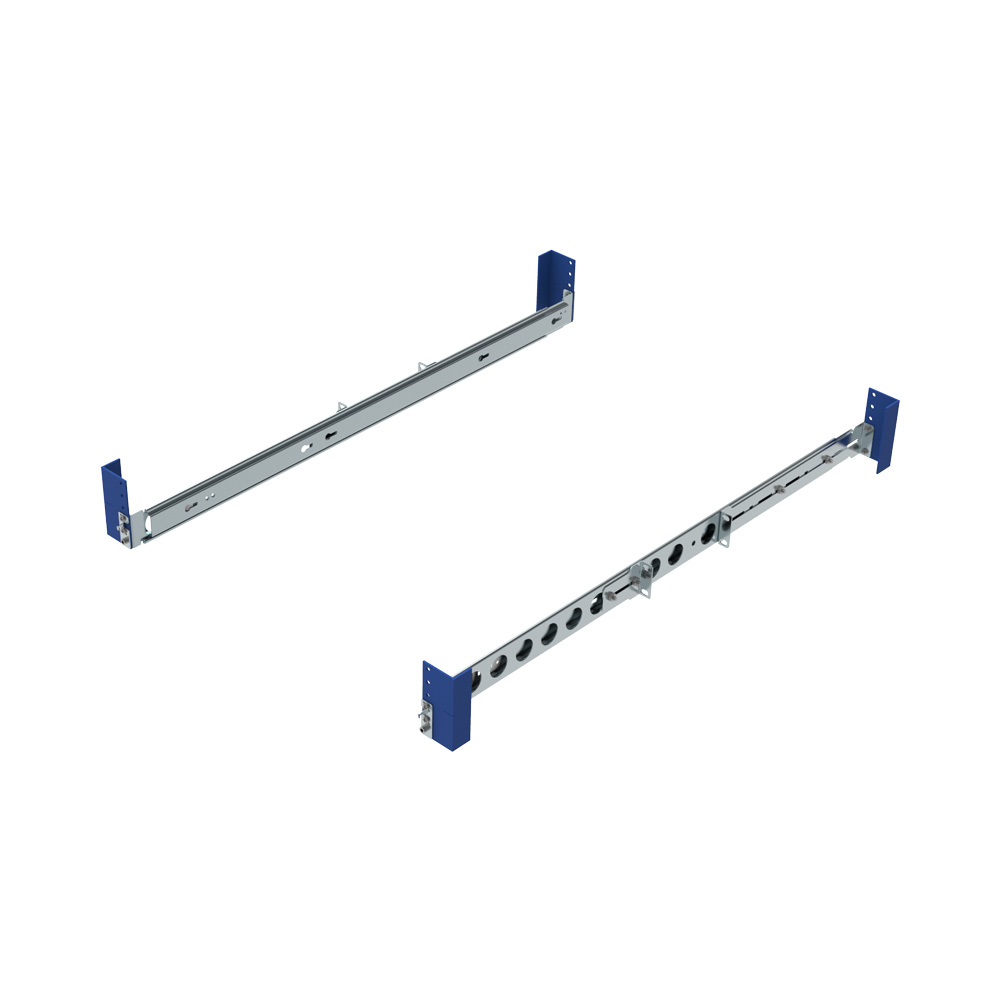

1U Cobra 145-A Dry Slide Rail for Dell
Sliding Alternative to Dell ReadyRailsÂ
- Compatible with 1U Dell PowerEdge Servers Generation 15-17
- Sliding rack rails provide easy serviceabilityÂ
- High-quality dry slide rack railsÂ
- Original Dell rail kit is not requiredÂ
Installs in 2-Post and 4-Post RacksÂ
- 4-Post: Mounting depth of 13" - 32" (330 mm - 762mm)Â
- 2-Post: Center mounting depth of 3" - 6" (76mm - 152mm) depth uprights
- Flush mount installation requires the Conversion Bracket 4-Pack (opens in a new tab)
- Compatible with square, round, and threaded holes
- Supports L, C, and ? rack upright shapes
Compatible Dell PowerEdge Servers
- Dell PowerEdge Gen 17: R470, R670, R6715, R6725
- Dell PowerEdge Gen 16: R660, R6615, R6625Â
- Dell PowerEdge Gen 15: R650, R6525
RackSolutions 1U Cobra 145-A Rail for Dell PowerEdge servers is an alternative to Dell OEM rail kits. The sliding rack kit is compatible with most 1U Dell PowerEdge rack servers from the 15th-17th generations. Our sliding rack rails are compatible with Dell PowerEdge R650, R6525, R660, R6615, R6625, R470, R670, R6715, and R6725 servers. A flush mount kit (opens in a new tab) is required for flush mount rail installation. The conversion brackets must match the corresponding rail’s U height (e.g., 1U rail = 1U Conversion Bracket). Learn more about the Cobra rack rails here. (opens in a new tab)

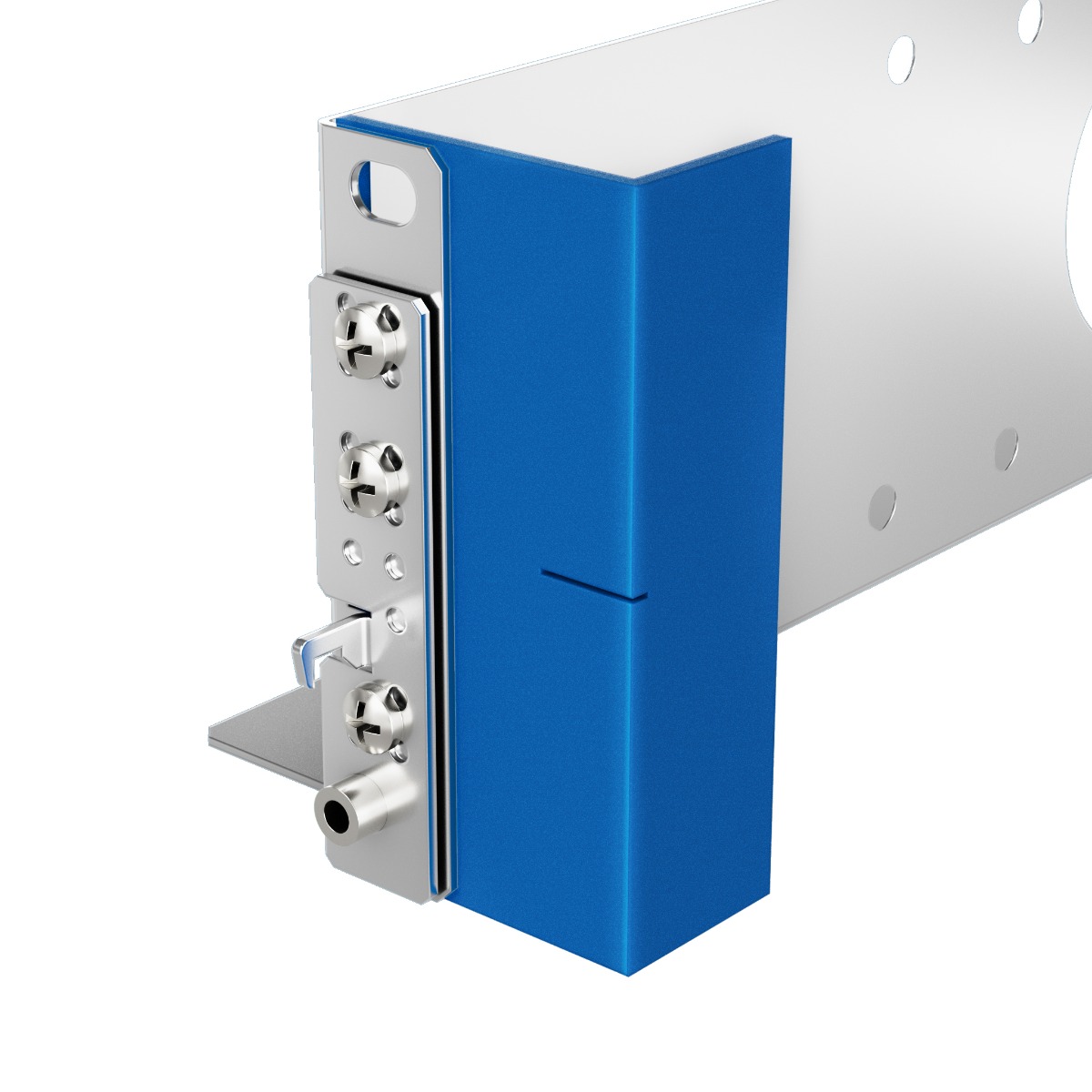

Dell Slam Latch Retaining Plate
The 1U retaining plate allows the Dell PowerEdge server to be secured in place when using our server rail. The retaining plate provides full securement at the front of the chassis, ensuring the server maintains a fixed position when completely installed.
Mounts in 2-Post and 4-Post Racks
Unlike the Dell OEM Rail Kit, our sliding rack rail kit mounts in 2-Post and 4-Post racks that meet 19” EIA-310 standards. Designed to last longer than ball-bearing rail kits, the dry slides allow you to easily extend equipment in and out of your server rack. For 4-Post Racks, the rack rails feature an adjustable mounting depth between 13" - 32" (76mm - 762mm).
Rack Hole Type
The sliding rack rails occupy 1U of rack space and are compatible with threaded, round, and universal square holes.
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Weight (lbs) | 4.050000 | Country of Manufacture | United States | OEM Compatibility | Dell | Replacement Dell OEM Rail | A14, A15, A16 | Generation | 15G, 16G, 17G | Product Line | PowerEdge | Form Factor | Server | U Height | 1U | Rack Type | 2 Post , 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Fixed/Sliding | Sliding | Weight Capacity | 30 - 100 lbs | Finish | Galvanized Steel | Dell Part Number | 122-7390 - AB399904 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
Ingram Part Number | 122-7390 - 8PB986 |
|---|
Installation Instructions
1U Cobra 145-A Dry Slide Rail for Dell (122-7390)
Open PDF
4 Post Mounting Dimensional Drawings
1U Cobra 145-A Dry Slide Rail for Dell (122-7390)
Open PDF
2 Post Center Mounting Dimensional Drawings
1U Cobra 145-A Dry Slide Rail for Dell (122-7390)
Open PDF
2 Post Flush Mounting Dimensional Drawings
1U Cobra 145-A Dry Slide Rail for Dell (122-7390)
Open PDFKit Contents:
- (2) Outer Rail (Left & Right)
- (2) Inner Rail (Left & Right)
- (2) Rear Bracket
Rear Bracket Hardware:
- (4) 8-32 x .375 Flat Head Screw
- (4) 8-32 Keps Nut
Mounting Hardware:
- (8) 8-32 x .500 Pan Head Screw
- (2) Retainer Plate (Left & Right)
- (2) Mounting Plate
Rack Mount 8x:
- (8) 10-32 x .500 Pan Head Screw
- (8) 12-24 x .500 Pan Head Screw
- (8) 12-24 x Square Nut
- (8) 12-24 x Cage Nut
- PowerEdge R470
- PowerEdge R650
- PowerEdge R6525
- PowerEdge R660
- PowerEdge R6615
- PowerEdge R6625
- PowerEdge R670
- PowerEdge R6715
- PowerEdge R6725
