2Post Conversion Bracket

Availability: In stock

2Post Conversion Bracket
  • 2Post Conversion Bracket
    2Post Conversion Bracket
    close
Made in America

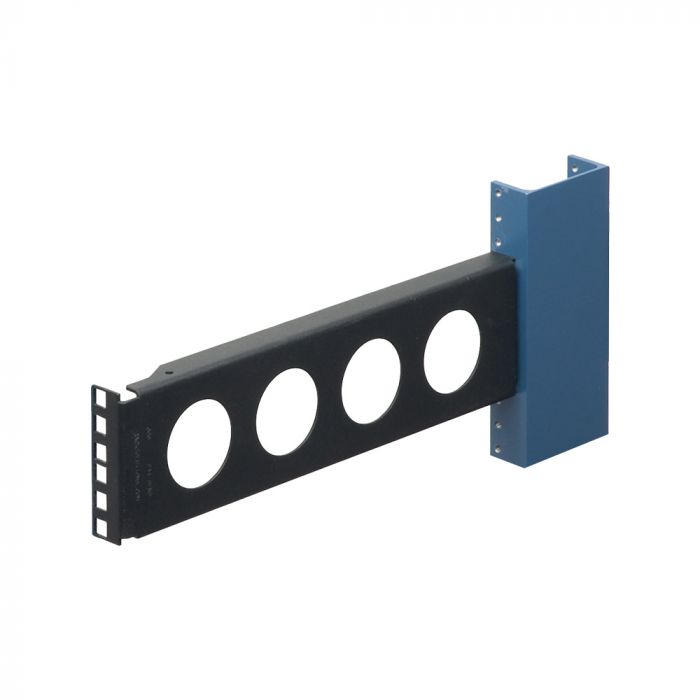

Mount 4Post equipment in 2Post racks

  • Converts space in a 2Post Rack to allow 4Post equipment
  • Convert only the space you need
  • Couple several brackets together for contiguous space
  • 3", 5", 6" depths available
  • High quality solid steel construction
  • Sold individually (one bracket per pack)
  • 4 brackets required for mounting a server with rails

Compatible with any 2Post rack

  • Works with standard EIA 19" racks or 23" telecommunications racks
  • Mounts using square, round, or threaded holes

Alternate Products

NOTE: Hardware not included. Rackmount hardware can be purchased here.
Rack Solutions Promise

Hardware not included (Brackets sold as individuals)

Product Name SKU Price Qty
2Post Conversion Bracket for 3" uprights 2UBRK-000C
$34.99
2Post Conversion Bracket for 5" uprights 2UBRK-000C-5

Regular Price: $34.99

Special Price $29.99

2Post Conversion Bracket for 6" uprights 2UBRK-000C-6

Regular Price: $34.99

Special Price $29.99

Description

Details

RackSolutions 2Post conversion brackets one key issue with 2Post racks, mounting 4Post equipment. Rather than purchasing a 4Post rack for only a few pieces of equipment, conversion brackets allow 4Post equipment such as servers using 4Post rail kits to be mounted in a 2Post rack. The 2Post conversion brackets essentially convert a small amount of space in your 2Post rack into a 4Post rack. Coupled together, the brackets can convert as much of the 2Post rack as needed. The brackets are sold in individual packs, so 4 brackets must be purchased to mount one piece of 4Post equipment in the rack.

  • 2 Post Converter max width
    Compatible with most servers
    The server chassis when attached to the rail kit can not exceed 17.72" to be compatible.
  • Conversion brackets couple together
    Create a 4 Post cabinet on a 2 Post relay rack
    If the rails that were supplied with your server are to shallow, the 1U adapter bracket allows the extra space needed to mount the rails.
Additional Information

Additional Information

Material Type Solid steel construction
RoHS Compliant Yes

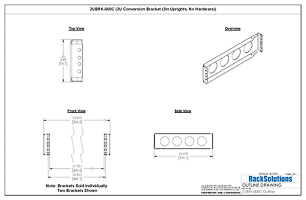

Bracket Dimensions
  • Part Number 2UBRK-000C 2U tall x 12.95" deep. 2Post conversion bracket for 3" uprights
  • Part Number 2UBRK-000C-5 is 2U tall x 10.95" deep. 2Post conversion bracket for 5" uprights
