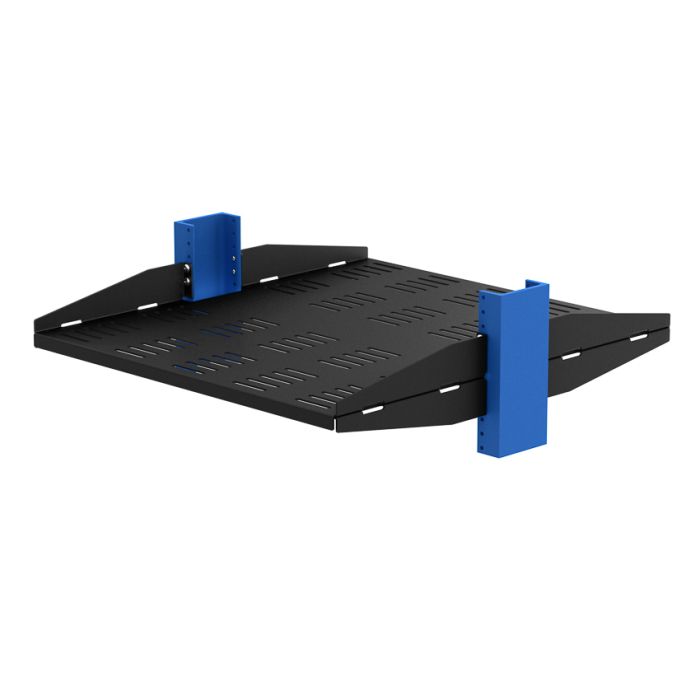

DetailsThe RackSolutions 2Post rack shelf is compatible with most 19" EIA standard 2Post rack. This 2Post rack shelf has a 300 lb (136 kgs) equipment capacity and will support a wide variety of electronic equipment. Electronic devices up to 21" (533 mm) deep can be supported on this 2Post rack shelf. Transport and seismic options are available for the 2Post rack shelf if the installation requires. Constructed of high quality 14 GA cold-rolled steel and providing the ability to hold up to 300lbs (136kgs) of equipment, this is a durable solution for storing large, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet. RackSolutions vented server rack shelf improves air flow and helps lower temperatures in your cabinet.
- Additional Information
Dell Part Number 107-2852 - A9026667 Assembly Notes Phillips head screwdriver required Equipment Depth Supports equipment up to 21" (533 mm). The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges. The flanges increase load capacity and prevent equipment movement. Shelf Type Vented Rack Type 2 Post Fixed/Sliding Fixed Shelf Surface Area 17.7" x 21" (450 mm x 533.4 mm) Finish Black textured powder coat Mounting Depth Range Compatible with 2Post racks with 3" to 8" uprights” Included Hardware Square hole relay racks will require cage nuts Weight Capacity 300lbs (136kgs) Rack Units 2U Tool-less/Standard Standard Overall Installation Depth 21" (533 mm) Hole Type 10-32 or 12-24 threaded holes Square hole relay racks will require cage nuts Material 14 GA steel RoHS Compliant Yes Tech Notes Shelf depth is measured from front to rear including flanges
