2U Adapter Brackets



Hover to View, Click to Zoom

  • 2UBRK-059-FULL - 2U Adapter Brackets
  • 2UBRK-200-FULL - 2U Adapter Brackets

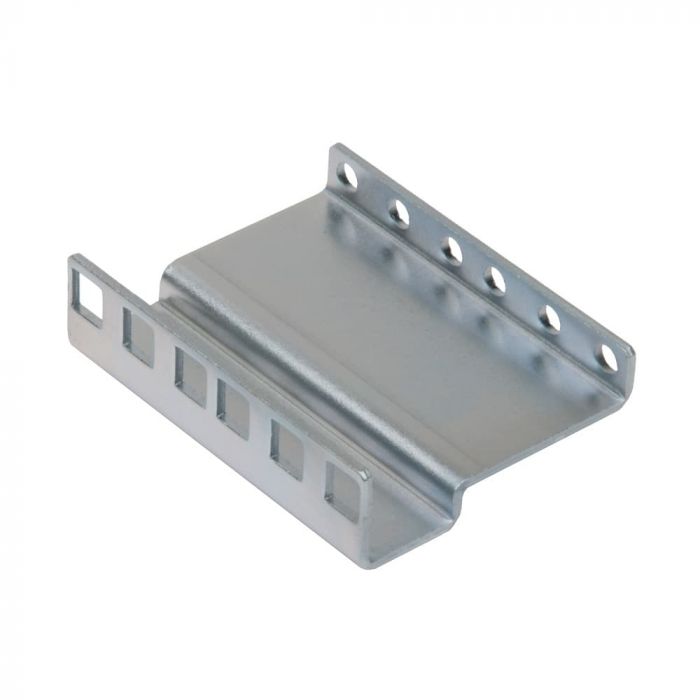

  • 2UBRK-270-FULL - 2U Adapter Brackets
  • 2UBRK-290-FULL - 2U Adapter Brackets
  • 2UBRK-350-FULL - 2U Adapter Brackets
  • 2UBRK-270-FULL - Mounted on rear rack post
  • 2UBRK-270-FULL - Mounted on front rack post

2U Adapter Brackets

Fits any 4Post cabinet, open frame rack

  • Converts round holes to square holes
  • 5 depths available
  • Brackets are sold as singles
  • Dell, HP, IBM compatible

Adjust installation depth of server rack

  • Work with Dell Rapid Rails
  • Provides solution for common install issues

Alternate Products

Be the first to review this product

Items in stock ship from our warehouse tomorrow!
Requires 3/8" Screws- Hardware not included (Brackets sold as individuals)
Product Name P/N: Availability Price Qty
2U Bracket, 2-bends, 0.59" wide 2UBRK-059-FULL
In Stock
$15.99
Hardware not included (Brackets sold as individuals)
Product Name P/N: Availability Price Qty
2U Bracket, 4-bends, 2.00" wide 2UBRK-200-FULL
In Stock
$15.99
2U Bracket, 4-bends, 2.50" wide 2UBRK-250-FULL
In Stock
$15.99
2U Bracket, 4-bends, 2.70" wide 2UBRK-270-FULL
In Stock
$15.99
2U Bracket, 2-bends, 2.90" wide 2UBRK-290-FULL
In Stock
$15.99
2U Bracket, 4-bends, 3.50" wide 2UBRK-350-FULL
In Stock
$15.99

You may also be interested in the following product(s)

Product Name P/N: Availability Price Qty
Rack Hardware
In Stock
Starting at:
$2.50

Features

Video-Different uses of the Adapter Brackets









These adapter brackets can provide a solution to the common problems associated with installing rackmount servers in a variety of server racks. Used in conjunction they can allow for considerable adjustment in the installation depth of the server rack. If the server rack is too deep or too shallow, these adapters will solve the problem. If your server rack has round holes and your slide rails require square holes, these brackets will convert round holes to square holes.

2U Adapter Brackets - Technical Specifications

Rack Type 4Post
Bracket Dimensions
  • Part Number 2UBRK-059-FULL: 2U Tall x 0.59" deep. Round to square holes. 2 bends
  • Part Number 2UBRK-200-FULL: 2U Tall x 2.00" deep. Round to square holes. 4 bends
  • Part Number 2UBRK-270-FULL: 2U Tall x 2.70" deep. Round to square holes. 4 bends
  • Part Number 2UBRK-290-FULL: 2U Tall x 2.90" deep. Round to square holes. 2 bends
  • Part Number 2UBRK-350-FULL: 2U Tall x 3.50" deep. Round to square holes. 4 bends
Hole Type Compatible with the industry standard 3/8" square hole racks.
Compatible with all standard round (non-threaded) holes.
Compatible with all standard threads including 10-32, 12-24 and metric M6.
Rack Post Shape 2UBRK-059-FULL: C Shape
2UBRK-200-FULL: ? Shape
2UBRK-270-FULL: ? Shape
2UBRK-290-FULL: C Shape
2UBRK-350-FULL: ? Shape
Assembly Notes Phillips head screwdriver required
Requires screws that are 3/8 in length.
