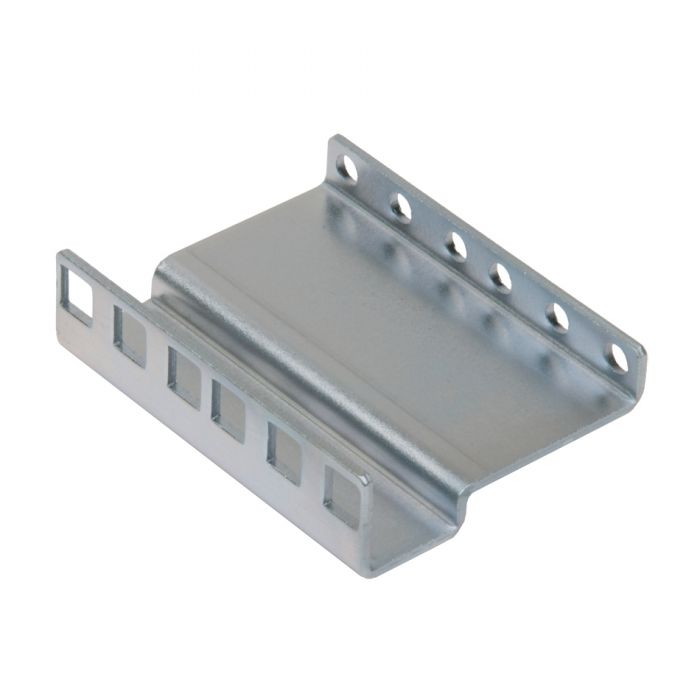

2U Adapter Bracket Assortment

100% of 100
In stock

Adjusts server rack installation depth

  • A solution to mounting equipment that is too long or too short for your rack
  • Converts round holes to square holes
  • Kit includes 2 of each bracket (12 total)
  • Works on 4 post racks with square, round and threaded holes
  • Weight capacity rated at 50 lbs per rack unit

Ex: 1U = 50 lbs, 2U = 100 lbs, 4U = 200 lbs, 6U = 300 lbs, etc.

Comprehensive set for most situations

  • (2) Bracket 059 = 0.59” (C shape uprights)
  • (2) Bracket 100 = 1.00" (C shape uprights)
  • (2) Bracket 290 = 2.90” (C shape uprights)
  • (2) Bracket 200 = 2.00” (? shape uprights)
  • (2) Bracket 270 = 2.70” (? shape uprights)
  • (2) Bracket 350 = 3.50” (? shape uprights)

Our adapter brackets are highly configurable tools that allow users to make mounting equipment of any depth work in almost any rack. Whether you are using Dell, HP, IBM or any major manufacturer’s products, our adapter kits will be compatible.

The brackets themselves are 2U in height, but can be combined to mount up to 7U equipment safely. Look through the instructions for further details on how to combine brackets.

Extension for shallow RackExtension for shallow Rack

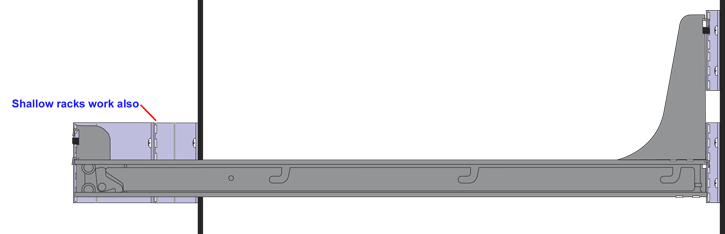

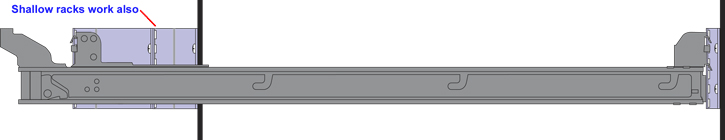

Extension for Shallow Rack

For shallow depth racks, our brackets can be used for rails that extend out past the uprights.
Extension for Deep RacksExtension for Deep Racks

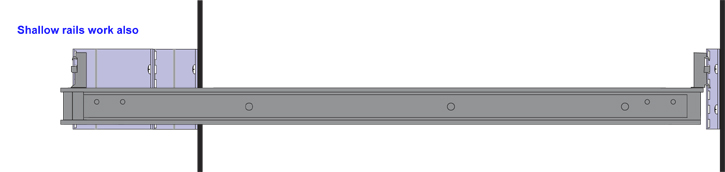

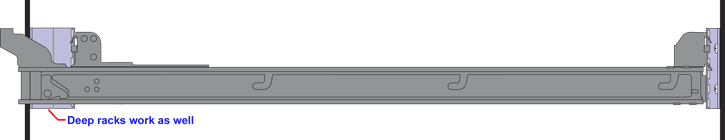

Extension for Deep Racks

If the rails that were supplied with your server are to shallow, the 1U adapter bracket allows the extra space needed to mount the rails.
What's the mounting depth?What's the mounting depth?

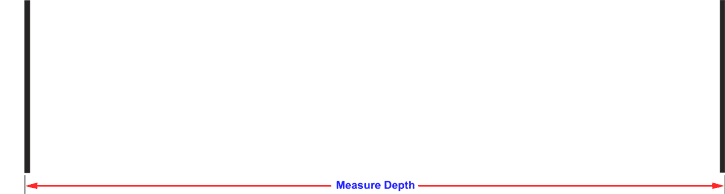

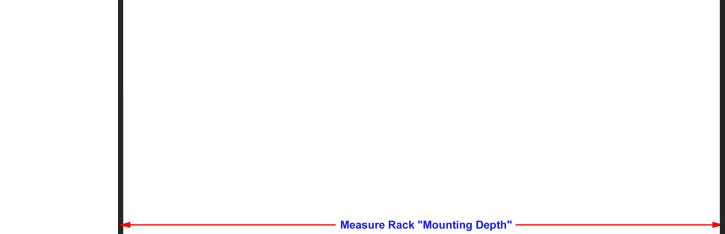

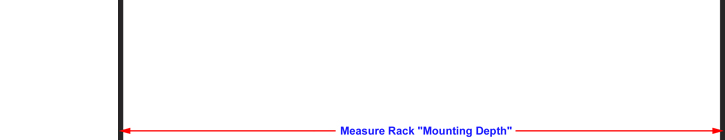

What's the mounting depth?

First, measure the mounting depth of your server rack, to determine the size of bracket that you will need.
Bracket InstallationBracket Installation

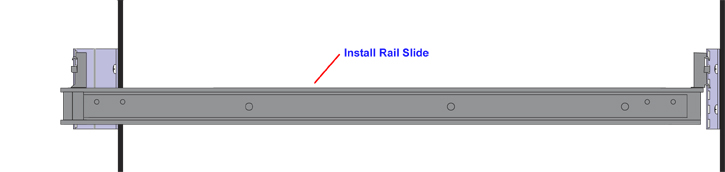

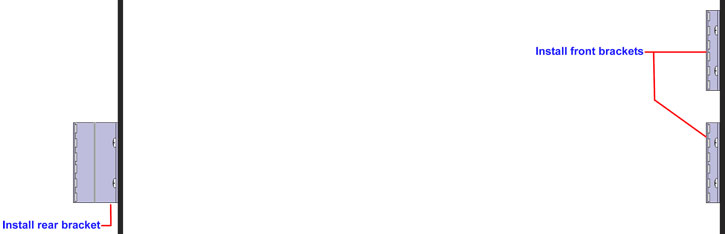

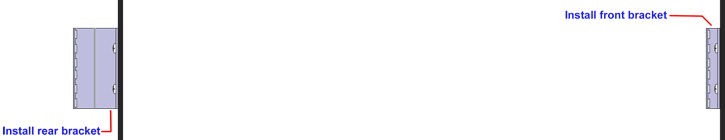

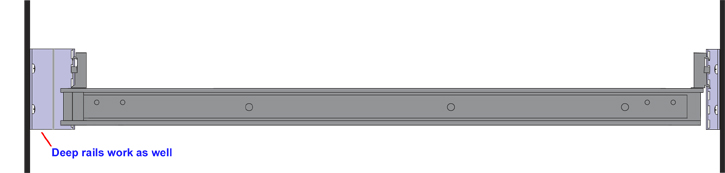

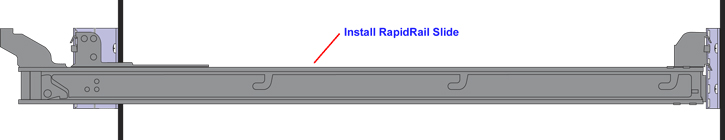

Bracket Installation

Install brackets (hardware not included) in the space where the rack needs to be extended or reduced.
More Information
Dell Part Number 2UKIT-101 - A7764268
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Finish Zinc plated
Tech Notes
    Rack type:
  • 4post cabinets (Chatsworth MegaFrame, Great Plains, Shark and most other racks)
  • Double 2Post frame (Homaco, APC, and others). Recommended double relay rack spacing
    Rack upright depth:
  • 23.8" - 33.2" (measured from front to back of the rack's mounting surface)
Included Hardware 12-24 & 10-32 cage nuts & screws
Assembly Notes This kit has an assortment of brackets that can be configured in multiple ways to solve most common installation issues
RoHS Compliant Yes
Hole Type
  • EIA 3/8" square holes (9.5 mm) to attach to rack
  • Round holes or 12-24 threaded holes to attach to Rapid Rail
Rack Post Shape 2UBRK-059: C shape
2UBRK-100: C shape
2UBRK-200: ? shape
2UBRK-270: ? shape
2UBRK-290: C shape
2UBRK-350: ? shape
Bracket Dimensions 2UBRK-059: 0.59" (15 mm)
2UBRK-100: 1.00" (25.4 mm)
2UBRK-200: 2.00" (50.8 mm)
2UBRK-270: 2.70" (68.6 mm)
2UBRK-290: 2.90" (73.7 mm)
2UBRK-350: 3.50" (88.9 mm)
TAA Compliant Yes
