2U Raven 200-A Rail for HP
Alternative for 2U Servers Using HPE Rail Kit 10
- Compatible with HP Proliant Server Generation 11
- Sliding rack rails provide easy serviceability
- High-quality dry slide rack rails
- Original HP rail kit is not required
Installs in 2-Post and 4-Post Racks
- 4-Post: Mounting depth of 12” - 39.50” (304.8 - 1003.3 mm)
- 2-Post: Center mounting depth of 3” - 6” (76.2 - 152.4 mm) depth uprights

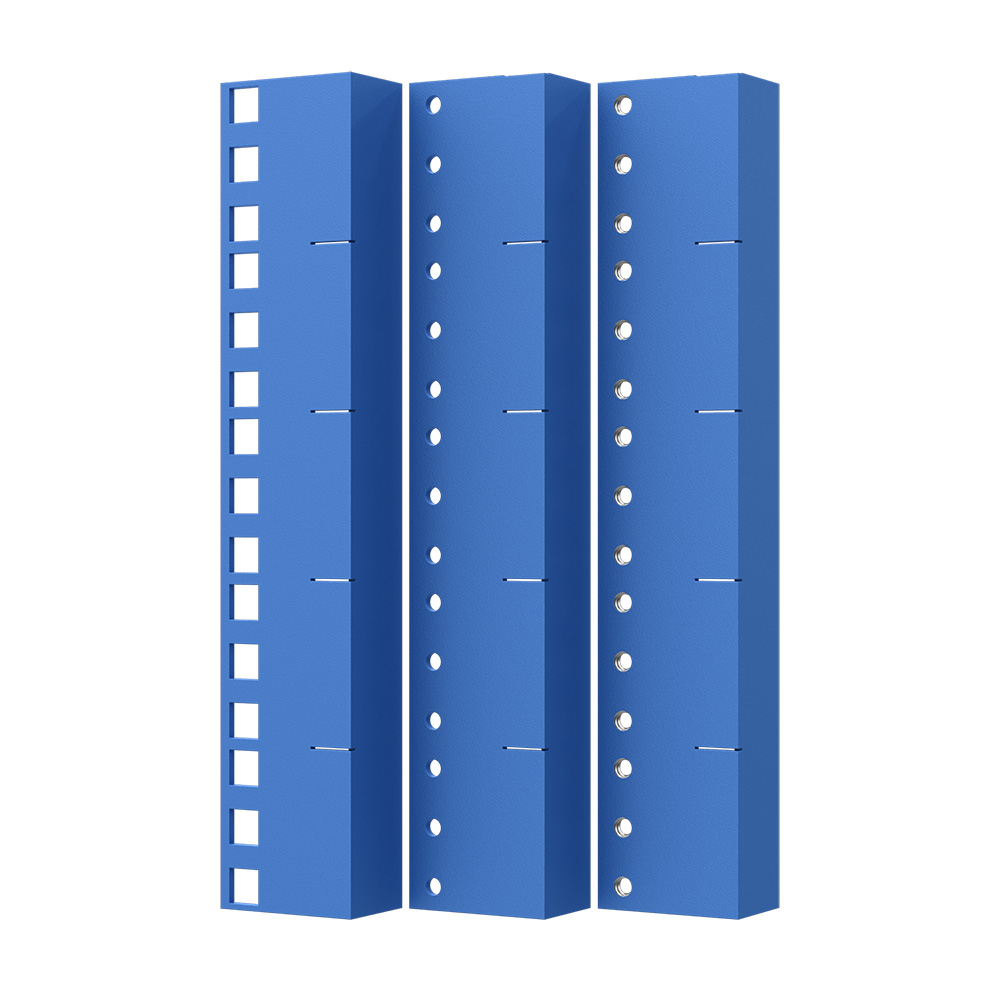

- Compatible with square, round, and threaded holes
- Supports L, C, and ? rack upright shapes
Compatible HP Proliant Servers
- DL385 Gen11 (Two-Row SFF Drive Configuration)
RackSolutions 2U Raven 200-A Rail for HP Proliant servers is an alternative to HP OEM rail kits. The sliding rack kit is compatible with select 2U HP Proliant rack servers from the 11th generation. Our sliding rack rails are compatible with the HP ProLiant DL385 Gen11 (Two-Row SFF) server. Learn more about the Raven rack rails here.
HP Slam Latch Retaining Plate
The 2U retaining plate allows the HP Proliant server to be secured in place when using our server rail. The retaining plate provides full securement at the front of the chassis, ensuring the server maintains a fixed position when completely installed.
Mounts in 2-Post and 4-Post Racks
Unlike the HP OEM Rail Kit, our sliding rack rail kit mounts in 2-Post and 4-Post racks that meet 19” EIA-310 standards. Designed to last longer than ball-bearing rail kits, the dry slides allow you to easily extend equipment in and out of your server rack. For 4-Post Racks, the rack rails feature an adjustable mounting depth between 12” - 39.50” (304.8 - 1003.3 mm).
Rack Hole Type
The sliding rack rails occupy 2U of rack space and are compatible with threaded, round, and universal square holes.
| BABA Compliant | Yes |
|---|---|
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| UL Compliant | No |
| ETL Compliant | No |
| Weight (lbs) | 5.150000 |
| Country of Manufacture | United States |
| Included Hardware | Kit Contents:
|
| Compatibility | HP |
| Rail OEM | HP |
| Compatible Products |
|
| Fixed/Sliding | Sliding |
| Finish | Galvanized and Zinc Plated |
| Material | Galvanized Steel and Cold-Rolled Steel |
