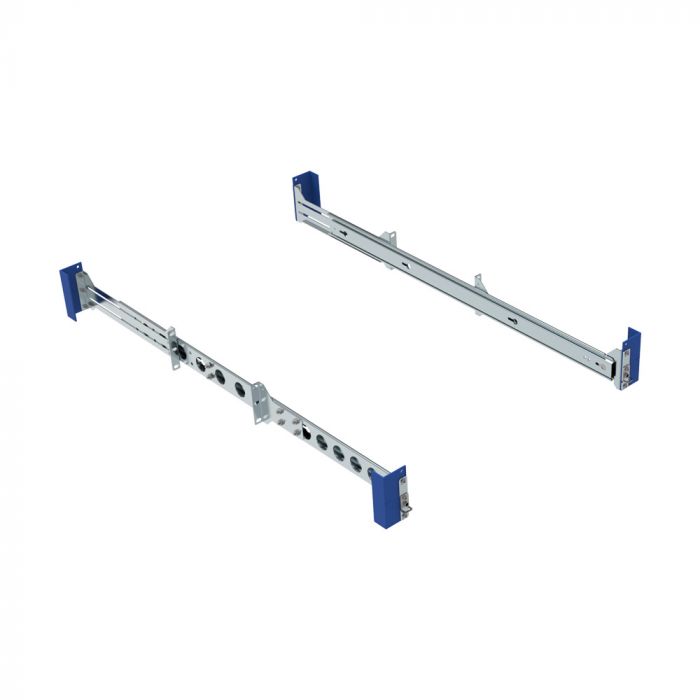

1U-2U HPE Dry Sliding Rail Kits for Gen 10 Plus
Fits any 2 Post or 4 Post rack
Can be converted to 2 Post or 4 Post with included parts
4-Post:
- (122-7158) DL385 and DL380 Gen 10 Plus supports 18”-32” depth
- (122-7159) DL325 and (122-7234) DL320 Gen11 (3-Row LFF Drive Configuration) supports 16”-36” depth
2 Post:
- all models support 3”-6” uprights
- Flush mount installation requires the Conversion Bracket 4-Pack (opens in a new tab)
- Works with square, round and threaded holes
Alternative to OEM rails
- High-quality dry slide that lasts longer than ball bearing kits
- Slide rails extend equipment from the rack, offering easy access for maintenance
- Made from 16 Ga Galvanized Steel, inner rails are Zinc plated
- Perfect fit for you HPE server
HPE Compatibility
- 122-7158: DL385 and DL380 Gen 10 Plus
- 122-7159: DL325 Gen 10 Plus (Short Chassis)
- 122-7234: DL320 Gen11 (3-Row LFF Drive Configuration), DL325 Gen 10 Plus (Long Chassis), DL320 Gen12 (12LFF Drive Configuration)
Built to Fit Gen 10 Plus DL385, DL380 and DL320 Gen11 (3-Row LFF Drive Configuration)
With over 20 years in the server rack industry, RackSolutions is fully capable of creating rails that rival OEM products. All necessary screws and nuts are included to help achieve the perfect fit with any hole type. This product is specifically designed for compatible HPE servers, ensuring a long-lasting and secure fit.
Comes Ready to Mount in 2-Post or 4-Post Racks
No conversion kit needed! This rail ships ready to mount in 2-post (telco or relay) racks and 4-post racks. Depth can be easily adjusted by shifting the rear brackets. A flush mount kit (opens in a new tab)is required for flush mount rail installation. The conversion brackets must match the corresponding rail’s U height (e.g., 1U rail = 1U Conversion Bracket).
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | OEM Compatibility | HP / HPE | Generation | Gen10, Gen11, Gen12 | Product Line | ProLiant | Form Factor | Server | U Height | 1U, 2U | Rack Type | 2 Post , 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Fixed/Sliding | Sliding | Weight Capacity | 30 - 100 lbs | Finish | Outer Rails: 16 Ga Galvanized Steel Inner Rails: Zinc Plated | Synnex Part Number | 122-7158 - 6302398 122-7234 - 6302397 |
|---|
Kit Contents:
- (2) Outer Rail (Left & Right)
- (2) Inner Rail
- (2) Rear Bracket (Left & Right)
Rear Bracket Hardware:
- (8) 8-32 x .312 Flat Head Screw
- (8) 8-32 Keps Nut
Mounting Hardware:
- (12) 8-32 x .500 Pan Head Screw
- (2) Retainer Plate (Left & Right)
- (2) Mounting Plate
- (2) Latch Plate (Left and Right)
Rack Mount 8x:
- (8) 10-32 x .500 Pan Head Screw
- (8) 12-24 x .500 Pan Head Screw
- (8) 12-24 x Square Nut
- (8) 12-24 x Cage Nut
Rack Mount 4x:
- (4) 10-32 x .500 Pan Head Screw
- (4) 12-24 x .500 Pan Head Screw
- (4) 12-24 x Square Nut
- (4) 12-24 x Cage Nut
Kit Contents:
- (2) Outer Rail (Left & Right)
- (2) Inner Rail (Left & Right)
- (2) Rear Bracket
Rear Bracket Hardware:
- (4) 8-32 x .375 Flat Head Screw
- (4) 8-32 Keps Nut
Mounting Hardware:
- (8) 8-32 x .500 Pan Head Screw
- (2) Retainer Plate (Left & Right)
- (2) Mounting Plate
- (2) Latch Plate (Left and Right)
Rack Mount 8x:
- (8) 10-32 x .500 Pan Head Screw
- (8) 12-24 x .500 Pan Head Screw
- (8) 12-24 x Square Nut
- (8) 12-24 x Cage Nut
Kit Contents:
- (2) Outer Rail (Left & Right)
- (2) Inner Rail (Left & Right)
- (2) Rear Bracket
Rear Bracket Hardware:
- (4) 8-32 x .312 Flat Head Screw
- (4) 8-32 Keps Nut
Rail Attachment Hardware:
- (6) 6-32 x .188 Button Head Screw
Mounting Hardware:
- (8) 8-32 x .500 Pan Head Screw
- (2) Retainer Plate
- (2) Latch Plate (Left & Right)
- (2) Mounting Plate
Rear Mount 8x:
- (8) 10-32 x .500 Pan Head Screw
- (8) 12-24 x .500 Pan Head Screw
- (8) 12-24 x Square Nut
- (8) 12-24 x Cage Nut
- DL320 Gen11 (3-Row LFF)
- DL320 Gen12 (12LFF)
- DL325 G10 Plus (Long Chassis)
- DL325 G10 Plus (Short Chassis)
- DL380 G10 Plus
- DL385 G10 Plus
