1U Light Duty Fixed Shelf 24in Depth
$84.99
In stock
SKU
108-4013
Fixed Shelf for Server Rack Equipment
- US Steel shelf construction
- Mounts 2Post flush or center mount
- Includes anti-slip mat
- Ideal for server towers, printers, and desktop PCs
Fits Any 2Post or 4Post Rack
- Weight Capacity: 100 lbs (45.36 kgs)
- Shelf depth: 24" (610 mm)
- Adjustable mounting depth from 3 - 29.75" (76 - 755mm)
- Compatible with square, round, threaded holes

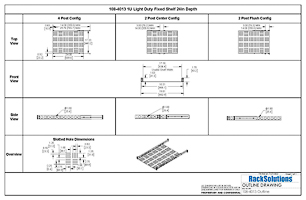

See "Additional Information" for Technical Specifications.
RackSolutions Light Duty server rack shelf is compatible with 19" server racks from manufacturers such as Dell, HP, and IBM. Though it is a “light duty” shelf compared to our other offerings, a 100 lb weight capacity can carry most 2U servers, and larger equipment like printers, desktop PCs and universal power supplies.
The vented design creates airflow and is also useful as a cable tie pass through. Our anti-slip mat is great for keeping equipment from sliding while pulling out the shelf, and still has ventilation.
Universal mounting options
RackSolutions 1U Cantilever 2 Post Rack Shelf is avaliable vented or solid with flanges up or down.
Shelf can mount upside down
Mount up-side-down for maximum width or right-side-up for minimum U space.
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Weight (lbs) | 11.680000 | Country of Manufacture | United States | U Height | 1U | Rack Type | 2 Post , 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Shelf Type | Vented | Shelf Depth | 19"- 24" (483mm-610mm) | Fixed/Sliding | Fixed | Weight Capacity | 30 - 100 lbs | Finish | Black, textured, powder coat | Material | 14 Gauge U.S. Steel | Dell Part Number | 108-4013 - A7779437 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
Synnex Part Number | 108-4013 - 4614581 | Ingram Part Number | 108-4013 - VU7458 |
|---|
Kit Contents:
- (1) Shelf
- (2) Rear Brackets
Front Hardware Kit:
- (4) 8-32 x .375 Flat Head Screw
- (4) 8-32 Keps Nut
- (2) Front Brackets
Rear Hardware Kit:
- (4) 8-32 x .375 Flat Head Screw
- (4) 8-32 Keps Nuts
Rear Mount 8x:
- (8) 10-32 x .500 Pan Head Screw
- (8) 12-24 x .500 Pan Head Screw
- (8) 12-24 x Square Nut
- (8) 12-24 x Cage Nut
