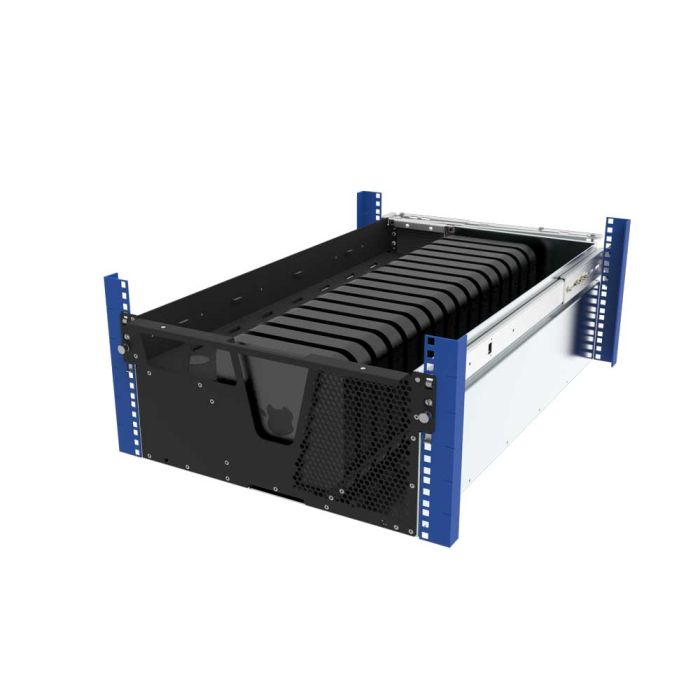

5U HyperShelf for 16 Apple Mac Mini

As low as $599.99
In stock

Rack Mount up to 16 Mac minis per shelf

  • Integrated airflow ducting for optimal cooling and thermal efficiency
  • Supports more Mac minis per rack than alternatives in the industry
  • Increases operation efficiency with limited space
  • Compatible with 2010-2023 Apple Mac minis

HyperShelf for Apple Mac mini Features

  • Rack mount 16 Mac minis per 5 rack units of space
  • Isolated intake/exhaust ports
  • Extends out of the rack for in-rack serviceability
  • Built-in cable management tie points/pathways
  • Optional blanking plate for better control of airflow

See "Additional Information" for compatibility.

HyperShelf Bezels

HyperShelves are equipped with a standard 6ft Fan Cable with a NEMA 5-15 plug to a Fan Terminal Receptacle. A 6ft Fan Cable with a IEC C14 plug to a Fan Terminal Receptacle (SKU:100-9043) can be purchased separately from RackSolutions. An adapter may be required to accommodate different plug types. RackSolutions does not provide adapters for the HyperShelf.

RackSolutions’ Apple Mac Mini HyperShelf allows you to rack mount 16 Mac Minis per shelf, compatible with Mac Minis from 2010-2023. We built this rack mount shelf to perfectly optimize space and airflow so the customer can be sure that their mac minis will last. The Mac Mini HyperShelf is designed for enterprise deployments and data center environments to provide a lower installation cost per device that doesn’t interfere with the power button or peripheral ports.

Fully Articulated Cable Management System (desktop image)Fully Articulated Cable Management System (mobile image)

Fully articulated Cable Management arm that is compact and fully adjustable. The Cable Management arm extends out of the rack for in-rack serviceability, allowing you to easily slide your equipment in and out of the rack. The Mac Mini shelf features built-in cable management. You will be able to conveniently pass cables through the pathway within the limited space.

Integrated tie down locations (desktop image)Integrated tie down locations (mobile image)

The Mac mini HyperShelf includes integrated tie points, which helps to designate cable pathways for cable management and organization.

Easy serviceability with removable panels (desktop image)Easy serviceability with removable panels (mobile image)

The rack mount shelf sits on high-quality ball bearing slide rails for increased accessibility and easier serviceability. We included a removable side panel for easy cable access and exhaust containment.

Airflow exhaust ports with optional fan (desktop image)Airflow exhaust ports with optional fan (mobile image)

The Mac Mini HyperShelf features integrated airflow for optimal cooling and thermal efficiency for your mac minis. To prevent the air from mixing, the intake and exhaust separates hot and cold air. For efficient airflow, mounting holes are included for optional fans to be installed.

Front air intake location (desktop image)Front air intake location (mobile image)

The front airflow management features mounting holes, allowing you the option to install fans for increased airflow. The airflow management separates the hot and cold air.

Removable side panels (desktop image)Removable side panels (mobile image)

The side panel provides airflow management, increasing operational efficiency. The side panel is removable for cable access.

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 115-6875
  • Kit Contents:
    • (1) Hypershelf
    • (1) Cable Management Bar
  • Mounting Hardware:
    • (6) 8-32 x .500 Truss Head Screw

  • Kit Contents:
    • (1) Mac Mini Blanking Panel
HyperShelf Compatibility Apple
Apple Compatibility A1347, A1993, A2348, A2686, A2816
Synnex Part Number 115-6875 - 6327543
Shelf Type Solid
Rack Type 4 Post
Fixed/Sliding Sliding
Mounting Depth Range 26.00-29.50"
Rack Units 5U
Overall Installation Depth 32.95" (837mm)
Hole Type 10-32 Threads, 12-24 Threads, Square Hole
