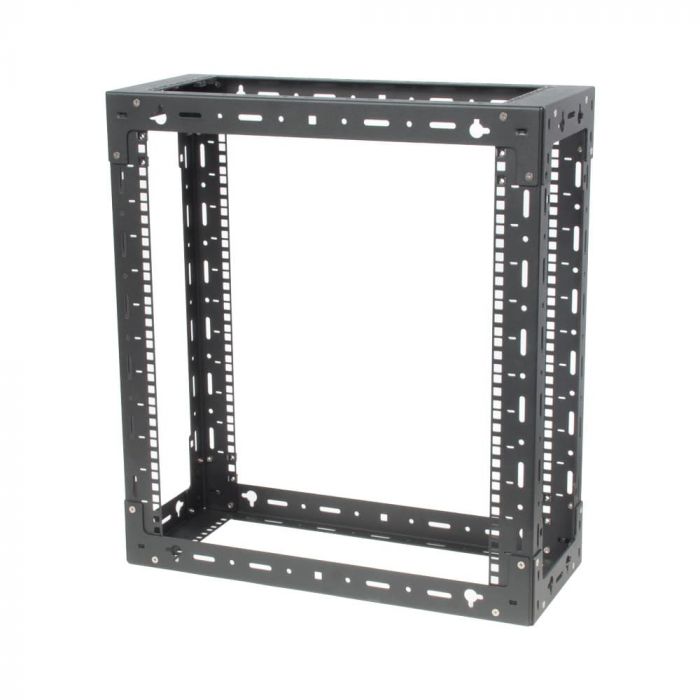

Open Frame Wall Mounted Rack

RoHS Compliant (default) RoHS Compliant (hover)
TAA Compliant (default) TAA Compliant (hover)
100 % of 100
As low as $189.99
In stock

9 configurations for any application

Wall mount networking equipment or servers

  • Wall mount 19" rack mount equipment
  • Front mount up to 15U of rack equipment
  • Top mount up to 9U of servers (use 15U [29.95"] height)
  • Open design allows for optimal air flow
  • Easy cable access & tie points
  • Convenient U space markings


Please call for shipping rates to Hawaii, Alaska and Puerto Rico.

Wall Mount Rack Features

Wall mounted rack size and specs (desktop image)Wall mounted rack size and specs (mobile image)

Wall Mount Rack Size Options

Front U space X Top/bottom U space
Overall Height X Overall Depth

12U x 4u, 6u, 9u wall mount rack (desktop image)12U x 4u, 6u, 9u wall mount rack (mobile image)
15U x 4u, 6u, 9u wall mount rack (desktop image)15U x 4u, 6u, 9u wall mount rack (mobile image)

Side Panels and Front Cover

These tool-less, non-locking, side panels come in 9 different sizes and are sold as single units. You must order 2 side panels per rack if you wish to install side panels on the left and right side of the rack. Wall mount rack side panels are easy to install. Front Covers for the Open Frame Wall Mount Rack are available in 12U and 15U sizes.

12U x 4U with 2 side panels (desktop image)12U x 4U with 2 side panels (mobile image)
119-1791-front-cover-2 (desktop image)119-1791-front-cover-2 (mobile image)


These solid or vented shelves made for 2 post racks fit nicely in this Wall Mount Rack. Depending on the depth of the rack you select, you may choose a 7" or 13" shelf. They're great when you need a place to set a wireless access device or another piece of equipment that doesn't mount in a rack.

Blanking Panels

Tool-less Filler Panels may be used to fill in the open spaces on the front, top or bottom of the Wall Mount Rack. To the right, on the left, is a photo of a Wall Mount Rack with 4U of space on the top. A 3U filler panel encloses most of the top but leaves 1U of open space. In the image on the right, a power distribution unit has been installed in the previously available 1U of space. Standard Filler Panels are also compatible with the Open Frame Wall Mount Racks.

119-1791-1u-open-1 (desktop image)119-1791-1u-open-1 (mobile image)

Power Strips

Any of these horizontal power strips will easily mount to the top, bottom, front or back of this Wall Mount Rack.

119-1791-power-strips-2 (desktop image)119-1791-power-strips-2 (mobile image)

Desktop Conversion

The Open Frame Wall Mounted Rack is bundled with rubber that can easily attach to a hole near the mounting keyholes. This allows for easy transformation into a desktop orientation.

To convert from a wall mount rack to a desktop rack, simply attach the rubber feet to the rack.

119-1752-server-mount-1 (desktop image)119-1752-server-mount-1 (mobile image)
More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware
  • Kit Contents:
    • (2) Frames
    • (4) Posts
  • Assembly Hardware Kit:
    • (32) 10-32 x .375” Flat Head Screws
  • Mounting Hardware Kit:
    • (4) .25" Hex lag Screws
    • (4) .281 Flat Washers
  • Rack Mount Hardware Kit:
    • (20) 12-24 x .500” Pan Head Screws
    • (20) 12-24 Cage Nuts
Rack Type Open Frame, Wall Mount
Rack Internal Width EIA 19" Standard Rack
Dell Part Number 119-1752 - A4603637
102-1869 - A8943424
102-1863 - AB365802
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 119-1752 - 5207429
102-1863 - 5207433
119-1781 - 5428998
102-1867 - 6216192
119-1591 - 5207423
119-1754 - 6216190
119-1755 - 5428995
Ingram Part Number 105-2046 - VU7752
105-1753 - VU7753
119-1752 - DY9028
102-1863 - VL8524
119-1781 - DY9029
102-1867 - RX2180
119-1591 - DY9031
119-1754 - DY9032
119-1755 - DY9033
102-1865 - 1P2724
102-1866 - NB8636
102-1868 - RT4578
Assembly Notes Assembly time is less than 10 minutes
Requires only a #2 Phillips Screwdriver
Rack Units
  • Vertical:12U, 15U, 21U heights
  • Horizontal:4U, 6U, 9U depths top and bottom
