Deep Rackmount Rails
Designed for deep server racks
- Installs in server racks up to 39.5" (1003 mm)
- Work with square, round, threaded holes
- 45 lbs, 75 lbs or 200 lbs capacity (1U, 2U, 3U)
Dell, HP & IBM compatible
- Alternative to OEM slide rails
- Mounting depth from 11" to 39.5" (279 mm - 1003 mm)
- Universal rails mount in any 4Post rack

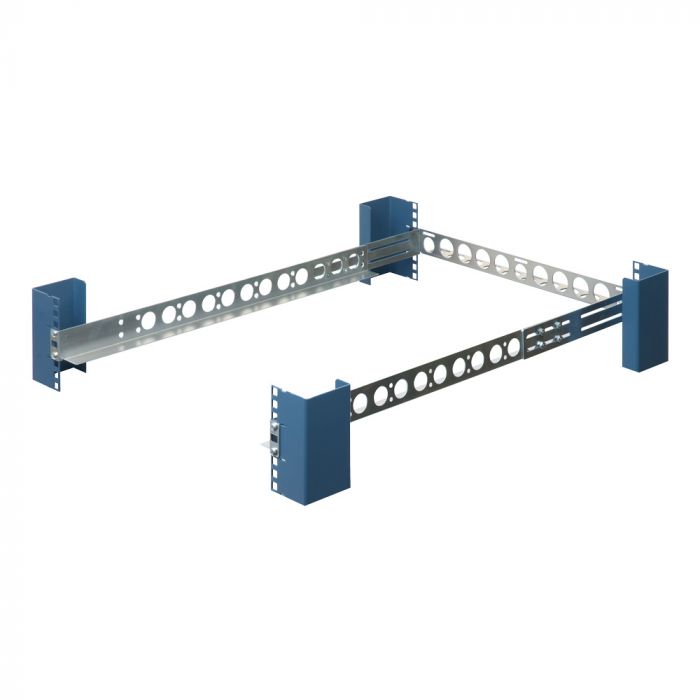

31" Universal Rackmount Rails are designed for deep Server Racks. These Rackmount Rails can be installed into racks with square, round, or threaded holes. Rack Mount Equipment weighing up to 200 lbs (90.7 kgs) can be installed using Rackmount Rails. The Rackmount Rail is 30.6" (777 mm) deep and can be installed into Server Racks with installation depths up to 39.5" (1003 mm).
Adjustable Rack Rails and Square Hole Mounting
The rail kit depth is fully adjustable from 10"-31.75" (254mm-806mm) all by loosening the screws and nuts. The rail kit is made from 18 GA steel and is zinc plated. The RackSolutions Universal rail kits are square hole to allow for the rails to be compatible with round, square or threaded hole racks.
Sizes Available

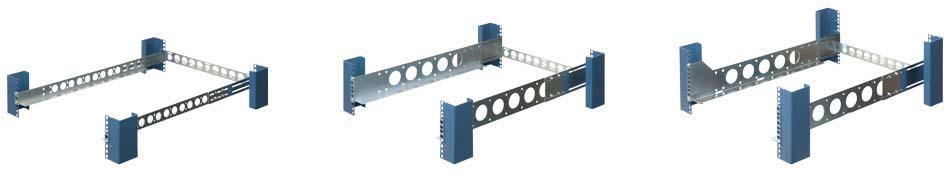

1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
10 - 31.5"
(254-800 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
Sizes Available
1U, 2U, 3U
Rack Type
2-Post Only
Mounting Depth Range
Center or Flush Mount
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
Sizes Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
28 - 30"
(711 - 762 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
Sizes Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
No
Size Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
11 - 39.5"
(279 - 1003 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes

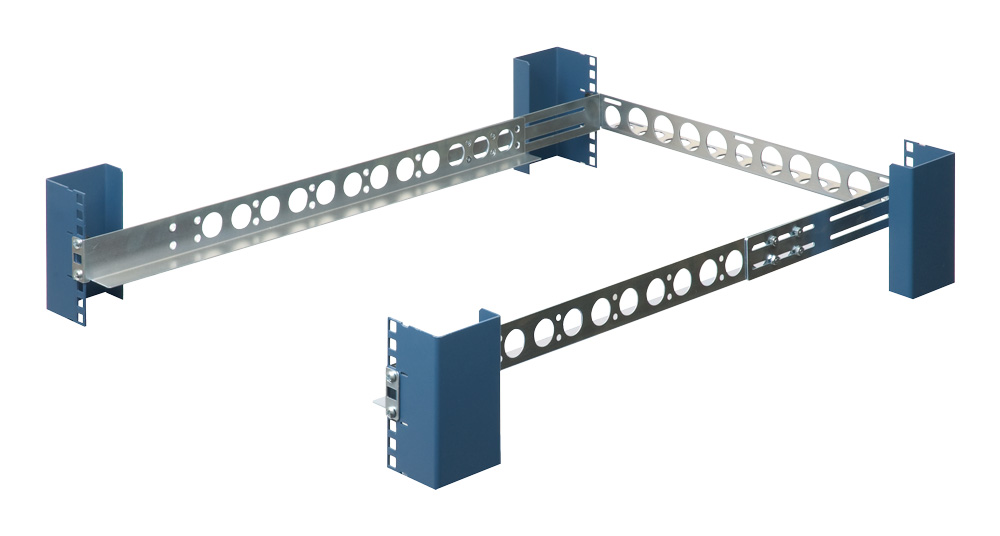

XUKIT-109

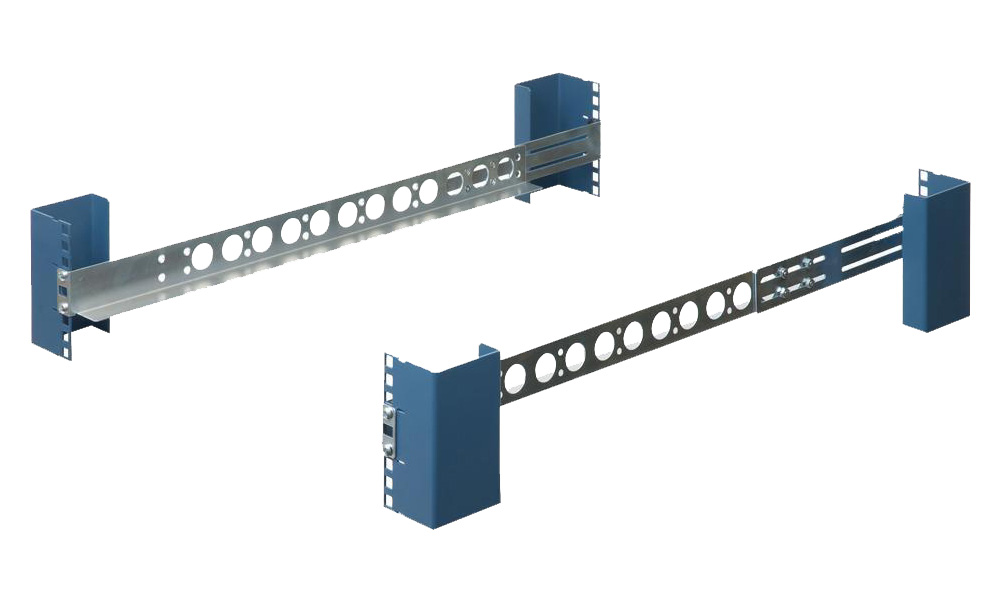

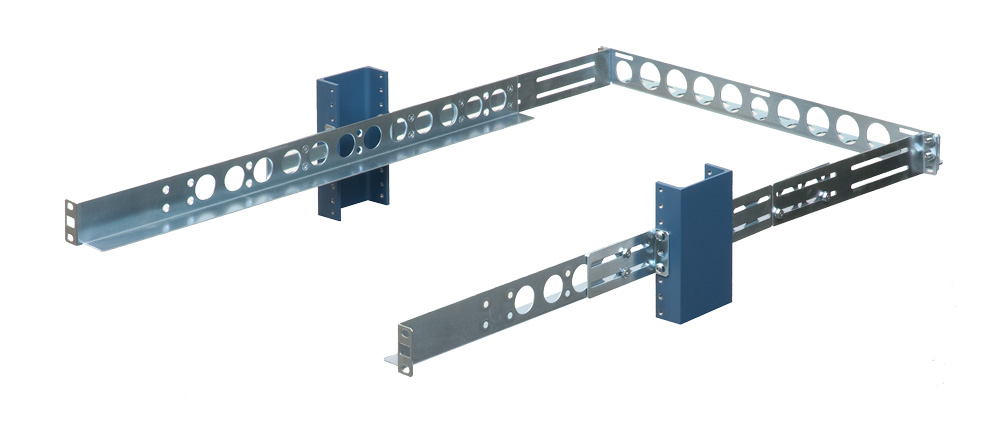

XUKIT-009

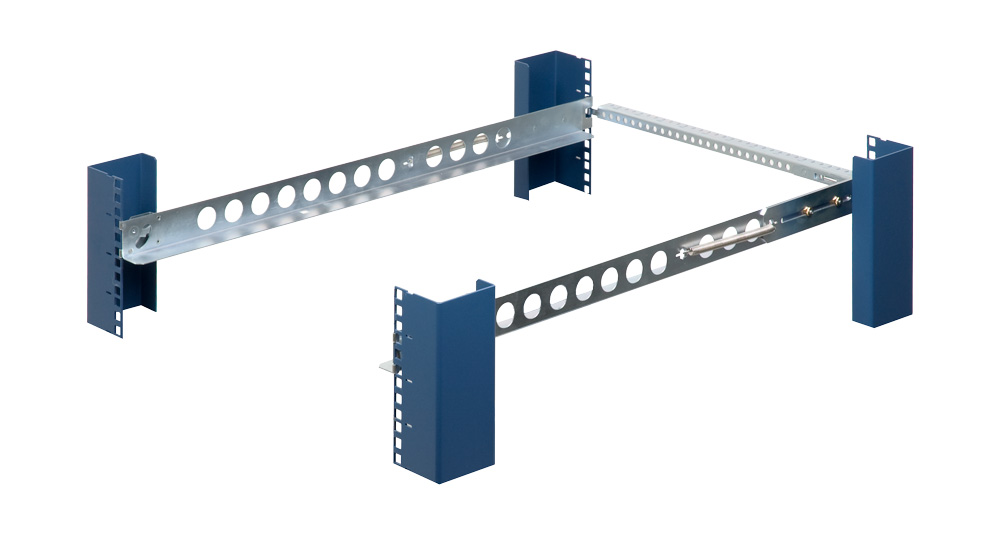

XUKIT-109-QR
XUKIT-109-20
XUKIT-109-31
Sizes Available
1U, 2U, 3U
1U, 2U, 3U
1U, 2U, 3U
1U, 2U, 3U
1U, 2U, 3U
Rack Type
4-Post
2-Post Only
4-Post
4-Post
4-Post
Mounting Depth Range
10 - 31.5"
(254-800 mm)
Center or Flush Mount
28 - 30"
(711 - 762 mm)
1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)
11 - 39.5"
(279 - 1003 mm)
Rack Hole Type
Square, Round, Threaded
Square, Round, Threaded
Square, Round, Threaded
Square, Round, Threaded
Square, Round, Threaded
Cable Management Bar
Yes
Yes
Yes
No
Yes
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | OEM Compatibility | Dell, HP / HPE, Lenovo, Universal | U Height | 1U, 2U, 3U | Rack Type | 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Fixed/Sliding | Sliding | Weight Capacity | 30 - 100 lbs, 125 - 250 lbs | Finish | Galvanized and Zinc Plated | Dell Part Number | 2UKIT-109-31 - A2778997 3UKIT-109-31 - A7200309 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
Synnex Part Number | 1UKIT-109-31 - 4884525 2UKIT-109-31 - 4884526 3UKIT-109-31 - 4884527 | Ingram Part Number | 1UKIT-109-31 - Y74704 2UKIT-109-31 - Y74705 3UKIT-109-31 - Y74706 |
|---|
Components:
- (1) Left Fixed Rail
- (1) Right Fixed Rail
- (2) Rear Brackets
- (1) Cable Crossbar
- (1) 30” Hook and Loop Cable Tie
Assembly Hardware Kit:
- (8) 8-32 Flat Head Screws
- (8) 8-32 Nuts
Cage Nuts for Equipment Thumb Screws:
- (2) 10-32 Cage Nuts “Silver” (Dell Standard)
- (2) 12-24 Cage Nuts “Black”
- (2) M6 Cage Nuts “Gold” (HP-Compaq Standard)
Rack Hardware Kit (2 bags):
- (12) 10-32 Pan Head Screws
- (12) 12-24 Pan Head Screws
- (12) 12-24 Cage Nuts
- (12) 12-24 Square Nuts
Components:
- (1) Left Fixed Rail
- (1) Right Fixed Rail
- (2) Rear Brackets
- (1) Cable Crossbar
- (1) 30” Hook and Loop Cable Tie
Assembly Hardware Kit:
- (8) 8-32 Flat Head Screws
- (8) 8-32 Nuts
Cage Nuts for Equipment Thumb Screws:
- (2) 10-32 Cage Nuts “Silver” (Dell Standard)
- (2) 12-24 Cage Nuts “Black”
- (2) M6 Cage Nuts “Gold” (HP-Compaq Standard)
Rack Hardware Kit (2 bags):
- (12) 10-32 Pan Head Screws
- (12) 12-24 Pan Head Screws
- (12) 12-24 Cage Nuts
- (12) 12-24 Square Nuts
Components:
- (1) Left Fixed Rail
- (1) Right Fixed Rail
- (2) Rear Brackets
- (1) Cable Crossbar
- (1) 30” Hook and Loop Cable Tie
Assembly Hardware Kit:
- (8) 8-32 Flat Head Screws
- (8) 8-32 Nuts
Cage Nuts for Equipment Thumb Screws:
- (2) 10-32 Cage Nuts “Silver” (Dell Standard)
- (2) 12-24 Cage Nuts “Black”
- (2) M6 Cage Nuts “Gold” (HP-Compaq Standard)
Rack Hardware Kit (2 bags):
- (12) 10-32 Pan Head Screws
- (12) 12-24 Pan Head Screws
- (12) 12-24 Cage Nuts
- (12) 12-24 Square Nuts
