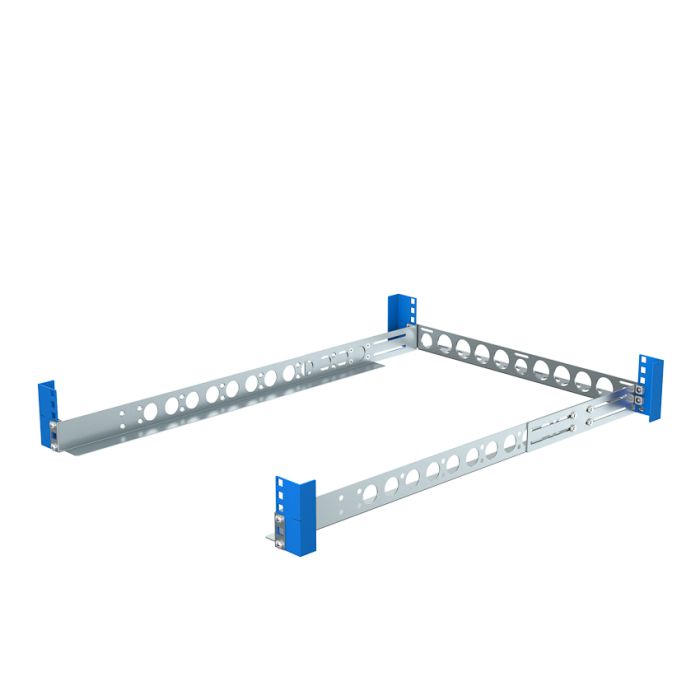

Universal Rack Rails

Rating:
73 % of 100
As low as $99.99
In stock

Fits any 4 Post rack

  • Fits square, round, threaded holes
  • Mounting depth: 10 - 31.50" (254 - 800mm)
  • Includes cabling crossbar (installation is optional)

Rackmounts 19" equipment

  • 1U, 2U or 3U+
  • 45, 75 or 200 lb (20, 34 or 91 kg) capacity
  • Dell, HP, IBM, Apple compatible
  • Replaces OEM slide rails
  • Optional retaining plate for standard width 1U-2U universal rails

The Rack Solutions Universal Server Rack Rails come in either 1U, 2U or 3U+ sizes, with weight capacities of 45, 75 and 200 pounds, respectively. The universal rails are designed to replace OEM rails included with Apple, HP, IBM and Dell server racks, providing a flexible solution for damaged server rack rails or OEM slide rails. The product is designed to support a variety of server racks, and is compatible with setups requiring standard square, rounded and threaded holes. To further its compatibility with various different devices and server racks, the rail rack supports mounting depths between 10 and 31.5 inches. The server rack rail ships with a variety of complementary items and hardware to make assembly, installation and cable management easier. Hardware items include screws, cage-nuts and nuts for all rack types. A cable management bar is also included to assist with routing, and hook-and-loop strips come included to keep cords secure. Overall, the all-purpose, zinc plated, fixed Universal Server Rack Rails can meet the needs of a variety of server installation solutions, allowing data centers to replace their OEM rails with a high-quality, reliable system.

Adjustable Rack Rails (desktop image)Adjustable Rack Rails (mobile image)

Adjustable Rack Rails

The rail kit depth is fully adjustable from 10"-31.75" (254mm-806mm) all by loosening the screws and nuts. The rail kit is made from 18 GA steel and is zinc plated.

Square Mounting Holes (desktop image)Square Mounting Holes (mobile image)

Square Mounting Holes

The RackSolutions Universal rail kits are square hole to allow for the rails to be compatible with round, square or threaded hole racks.


Dell Slam Latch Retaining Plate

The 1U and 2U retaining plate allows Dell servers to be secured in place when using our universal rails. These retaining plates are only compatible with 1U-2U standard width universal rails and are not compatible with wide equipment universal rails configuration. If your Dell server does not have a slam latch, please call our support team at 888-505-RACK for more information on server compatibility.

101-2435 2UDellSlamLatchAdapter-850px (desktop image)101-2435 2UDellSlamLatchAdapter-850px (mobile image)

Testimonials

"Installed those universal rails from Rack Solutions yesterday - it was so easy and worked so well that the assistant editor literally couldn't believe it. Wish I would have discovered these first (before wasting precious time and money on extenders, adapters, etc.) And I mean every word. Thanks for the great service, quick turnaround, and excellent product!" :)

Shaun O

XUKIT-109 Universal Rack Rails  (desktop image)XUKIT-109 Universal Rack Rails  (mobile image)

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
10 - 31.5"
(254-800 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-009 2 Post Rack Rails  (desktop image)XUKIT-009 2 Post Rack Rails  (mobile image)

Sizes Available
1U, 2U, 3U

Rack Type
2-Post Only

Mounting Depth Range
Center or Flush Mount

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-109-QR Tool-Less Rack Rails (desktop image)XUKIT-109-QR Tool-Less Rack Rails (mobile image)

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
28 - 30"
(711 - 762 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-109-20 Universal Shallow Rack Rails (desktop image)XUKIT-109-20 Universal Shallow Rack Rails (mobile image)

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
No

XUKIT-109-31 Deep Mount Rack Rails  (desktop image)XUKIT-109-31 Deep Mount Rack Rails  (mobile image)

Size Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
11 - 39.5"
(279 - 1003 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

Blue Stack Logo Web CC (desktop image)Blue Stack Logo Web CC (mobile image)
XUKIT-109 Universal Rack Rails  (desktop image)XUKIT-109 Universal Rack Rails  (mobile image)
XUKIT-009 2 Post Rack Rails  (desktop image)XUKIT-009 2 Post Rack Rails  (mobile image)
XUKIT-109-QR Tool-Less Rack Rails (desktop image)XUKIT-109-QR Tool-Less Rack Rails (mobile image)
XUKIT-109-20 Universal Shallow Rack Rails (desktop image)XUKIT-109-20 Universal Shallow Rack Rails (mobile image)
XUKIT-109-31 Deep Mount Rack Rails  (desktop image)XUKIT-109-31 Deep Mount Rack Rails  (mobile image)

XUKIT-109

XUKIT-009

XUKIT-109-QR

XUKIT-109-20

XUKIT-109-31

Sizes Available

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

Rack Type

4-Post

2-Post Only

4-Post

4-Post

4-Post

Mounting Depth Range

10 - 31.5"
(254-800 mm)

Center or Flush Mount

28 - 30"
(711 - 762 mm)

1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)

11 - 39.5"
(279 - 1003 mm)

Rack Hole Type

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Cable Management Bar

Yes

Yes

Yes

No

Yes

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 1UKIT-109 | 2UKIT-109 | 3UKIT-109
  • Components:
    • (1) Left Fixed Rail
    • (1) Right Fixed Rail
    • (2) Rear Brackets
    • (1) Cable Crossbar
    • (1) 30” Hook and Loop Cable Tie
  • Assembly Hardware Kit:
    • (8) 8-32 Flat Head Screws
    • (8) 8-32 Nuts
  • Cage Nuts for Equipment Thumb Screws:
    • (2) 10-32 Cage Nuts “Silver” (Dell Standard)
    • (2) 12-24 Cage Nuts “Black”
    • (2) M6 Cage Nuts “Gold” (HP-Compaq Standard)
  • Rack Hardware Kit (2 bags):
    • (12) 10-32 Pan Head Screws
    • (12) 12-24 Pan Head Screws
    • (12) 12-24 Cage Nuts
    • (12) 12-24 Square Nuts
Compatibility Universal
Dell Part Number 1UKIT-109 - A7272282
2UKIT-109 - A7008276
3UKIT-109 - A7008269
109-8421 - AB892028
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 1UKIT-109 - 4614567
2UKIT-109 - 4614568
3UKIT-109 - 4614569
Ingram Part Number 109-8421 - 9RC243
101-2435 - TF0926
1UKIT-109 - 658376
2UKIT-109 - 658456
3UKIT-109 - 658458
Fixed/Sliding Fixed
Finish Zinc plated
Hole Type Compatible with the industry standard 3/8" square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
