100-A Wall Mounts for Dell OptiPlex Micro PCs
Wall mount your Dell OptiPlex Micro PC
- 104-5005 - Fixed
- 104-4935 - Tilted
- Creates a compact all-in-one solution and can mount under a desk
- Uses 75 mm and 100 mm VESA hole pattern
- All required mounting hardware is included
Customizable to your needs
- Tilt bracket option available to adjust monitor
- Works with most flat panel displays
- Pairs great with our keyboard wall mount
- Barrel lock is included with the lock upgrade (101-8412)
NOTE: See "Additional Information" below for compatibility. PC & Monitor NOT included.
Â
The Dell OptiPlex Micro Wall Mount from RackSolutions takes the OptiPlex Micro's already ultra compact design and creates an all-in-one solution, leaving an even smaller footprint making it suitable for almost any work environment. The Dell OptiPlex Micro Wall Mount allows a monitor to be attached using 75 mm and 100 mm VESA hole patterns, making it compatible with most flat panel displays. There are two options when choosing a Dell OptiPlex Micro Wall Mount, a version that allows your monitor to tilt and one that stays fixed. The wall mount can also be mounted under a desk, keeping it hidden and out of the way. For added security, a lock upgrade using a bracket and barrel lock(included with the lock upgrade) is also available. The Dell OptiPlex Micro Wall Mount includes all required mounting hardware so all you need is a Phillips head screwdriver.
For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained.
Compatible Dell Products:
- Dell OptiPlex 7040 Micro
- Dell OptiPlex 7050 Micro
- Dell OptiPlex 7060 Micro
- Dell OptiPlex 7070 Micro
- Dell OptiPlex 7090 Micro
- Dell OptiPlex 9020 Micro
- Dell OptiPlex 3020 Micro
- Dell OptiPlex 3040 Micro
- Dell OptiPlex 3046 Micro
- Dell OptiPlex 3050 Micro
- Dell OptiPlex 3060 Micro
- Dell OptiPlex 3070 Micro
- Dell OptiPlex 3080 Micro
- Dell OptiPlex 3090 Micro
- Dell OptiPlex 5000 Micro
- Dell OptiPlex 5050 Micro
- Dell OptiPlex 5060 Micro
- Dell OptiPlex 5070 Micro
- Dell OptiPlex 5090 Micro
104-4935 - Tilted Bracket

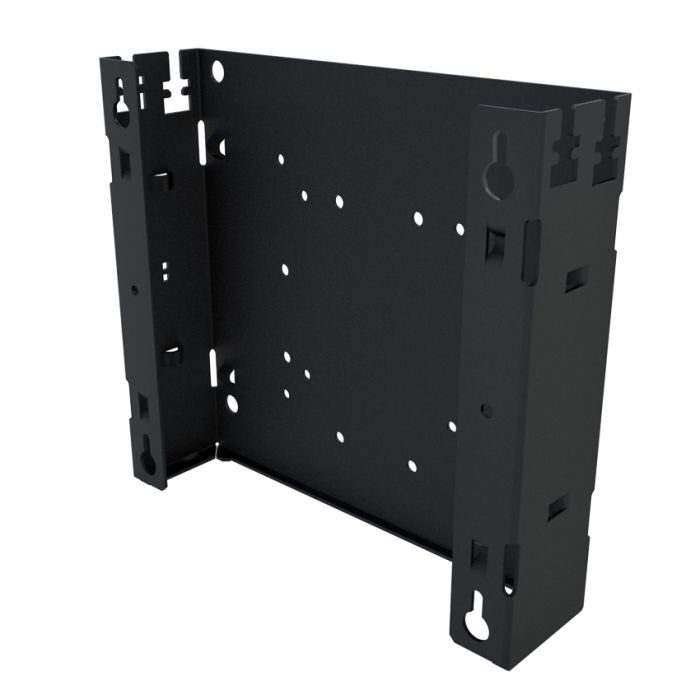

104-5005 - Fixed Bracket
| VESA Standard | Hole Pattern | Monitor Weight | Screen Size |
| FDMI MIS-C | 75 x 35 mm | ≤ 10 lbs / ≤ 4.5 kg | 8" to 11.9" |
| FDMI MIS-D | 75 x 75 or 100 x 100 mm | ≤ 30.8 lbs / ≤ 14 kg | 12" to 23.9" |
| FDMI MIS-E | 200 x 100 mm | ≤ 50 lbs / ≤ 23.7 kg | 24" to 30.9" |
For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained.
| Compatible Products | |
|---|---|
| Dell Part Number | 104-5005 - A8930316 104-4935 - A8930317 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
| Synnex Part Number | 104-5005 - 4614617 104-4935 - 4614618 |
| Ingram Part Number | 101-7732 - 9CA727 104-5005 - 7BB558 104-4935 - 9CA726 |
| Compatibility | Dell |
| Assembly Notes | Requires Phillips screwdriver |
| Dimensions | Fixed Monitor Outside Dimensions P/N: 104-5005 H x W x D = 7.06" (179 mm) x 7.69" (195 mm) x 1.91" (48 mm) Tilt Monitor Outside Dimensions P/N: 104-4935 H x W x D = 7.06" (179 mm) x 9.32" (237 mm) x 1.91" (48 mm) |
| Finish | Black, textured powder finish |
| Amazon ASIN | 104-5005 = B01BU64CME 104-4935 = B01DCLXSJS |
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| Included Hardware |
|
Download Wall Mount for Dell OptiPlex Micro PCs (101-5005) Installation Instructions
Download Fixed Wall Mount Dimensional Drawings
Download Tilt Wall Mount Dimensional Drawings
Download VESA Adapter for Optiplex Micro Wall Mount (101-7732) Installation Instructions
Download VESA Adapter for Optiplex Micro Wall Mount (101-7732) Dimensional Drawings
