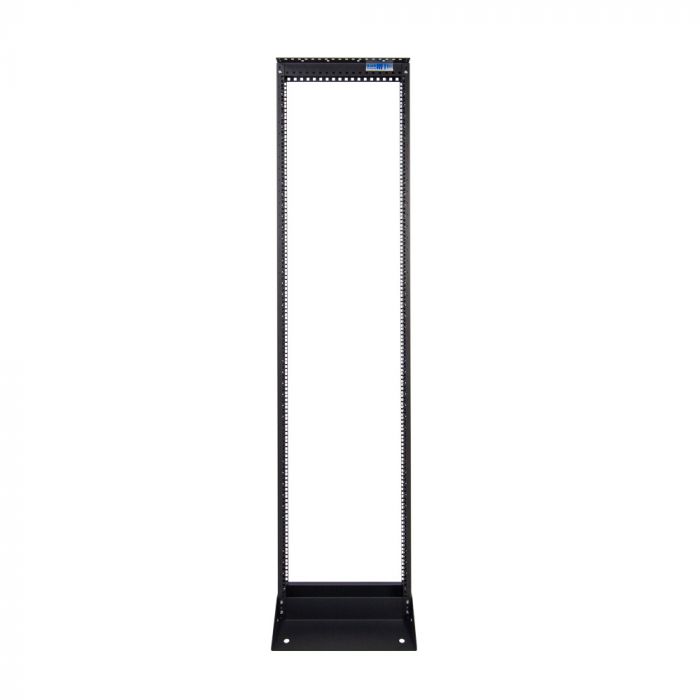

TechEdge 2-Post Relay Rack
Relay Rack Designed for Versatility
- Universal square mounting holes
- 1000 lb capacity
- Constructed from sturdy 13 GA steel
- Caster Kit provides mobility
Self Squaring Design for Easy Assembly
- Tool-less Button-Mounting Holes for PDUs
- Vertical cable management
- Assembly hardware included
RackSolutions engineering team has custom designed a 2 post rack that is constructed from 13 gauge steel and features square mounting holes on the frame. Equipped with tool-less button mounting holes along the sides, vertical PDUs and cable managers can be easily installed. The TechEdge 2 Post Rack is compatible with most rack equipment and allows you to add on our caster kit for easy transportation in your server room, office, or studio. It’s easy to reposition or relocate the rack in order to connect your rack-mounted equipment to other devices throughout your workspace. If you want a permanent solution, the rack comes with a floor anchor kit to secure your rack to a certain area. Available in 25U and 45U, the 2 post rack has 1000 lbs load capacity and includes assembly hardware.
RackSolutions TechEdge product line offers high-quality manufacturing in the USA at a low cost. Whatever your industry, we've got a TechEdge product with the quality you need, at an affordable price.
Universal Mounting Holes
Tool-less Button Mounts
Casters
| Country of Manufacture | China |
|---|---|
| Rack Type | 2 Post Rack (Telco Rack) |
| Rack Internal Width | EIA 19" Standard Rack |
| Dell Part Number | 121-6522 - AB399910 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
| Synnex Part Number | 121-6512 - 6064690 131-6513 - 6064692 180-5257 - 5994429 |
| Ingram Part Number | 106-6485 - 8JU433 121-6522 - 8PB562 121-6512 - 7BB559 131-6513 - 8JU432 180-5257 - 5DK724 |
| Tech Notes | Constructed from 13 GA steel
Self squaring design 1000 lbs load capacity Button mounts along both sides of rack Cagenuts and screws NOT included |
| Included Hardware | (9) .250-20 Flat Head Torx Screws (13) .250-20 Pan Head Torx Screws (1) Floor Anchor Kit with drill bit |
| Rack Height ( U Height) | Available in 25U and 45U |
| Finish | Black powdered coat |
| Rack Casters | Available to add on |
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| Dimensions | 25U H: 49.25" x L: 20.14" x W: 13.59" 45U H: 84.25" x L: 20.14" x W: 13.59" |
